TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP0504SHTGTVS DIODE 5.5VWM 8.5VC SOT23-6 |
21,294 | - |
|
Datasheet | SOT-23-6 | SP0504, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
DSL70E6327HTSA1TVS DIODE 50VWM 9VC SOT143-4 |
21,060 | - |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Last Time Buy | Steering (Rail to Rail) | 2 | - | 50V (Max) | - | 9V | 27A (8/20µs) | 245W | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-SOT-143-3D |
|
824021TVS DIODE 5VWM 7VC SOT23-3L |
9,510 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | WE-TVS | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.1V | 7V | 15A (8/20µs) | - | No | General Purpose | 55pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|

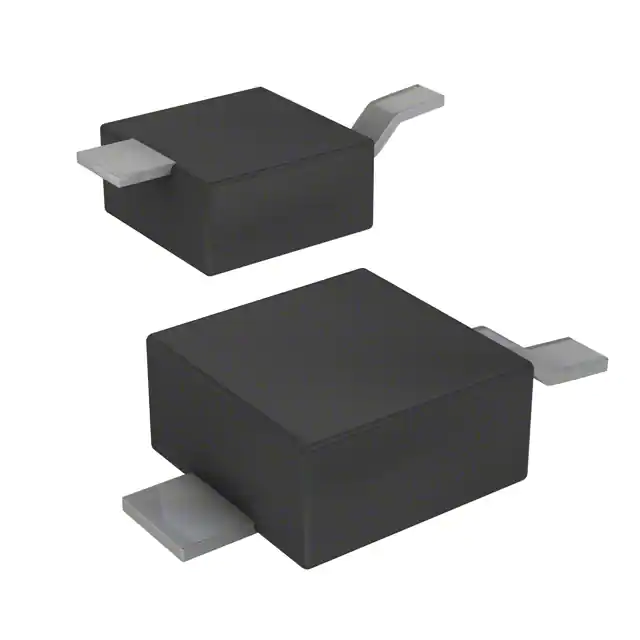

SM2T3V3ATVS DIODE 3.3VWM 6.8VC DO216AA |
9,279 | - |
|
Datasheet | DO-216AA | SM2T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 3.6V | 6.8V | 30A | 200W | No | General Purpose | 2500pF @ 1MHz | - | - | - | Surface Mount | DO-216AA |
|
1.5KE200CATVS D5.4X7.5 171V 1500W BIDIR |
8,226 | - |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
SM712-TPTVS DIODE 12VWM 21VC SOT23 |
96,420 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | 21V | 5A (8/20µs) | 400W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
SMDJ24ATVS DIODE 24VWM 38.9VC DO214AB |
73,302 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 77.12A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SZESD9R3.3ST5GTVS DIODE 3.3VWM 7.8VC SOD923 |
45,233 | - |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.8V | 7.8V | 1A (8/20µs) | - | No | - | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
|
SMCJ36CATVS DIODE 36VWM 58.1VC SMC |
42,116 | - |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
PGB1010402KRTVS DIODE 12VWM 250VC 0402 |
39,219 | - |
|
Datasheet | 0402 (1005 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | - | 250V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|
1.5KE39CATVS D5.4X7.5 33.3V 1500W BIDIR |
34,913 | - |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SESD0201X1BN-0010-098TVS DIODE 7VWM 10VC 0201 |
29,432 | - |
|
Datasheet | 0201 (0603 Metric) | SESD, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 9.8V (Typ) | 10V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.1pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0201 |
|
ESD122DMXRTVS DIODE 3.6VWM 8.4VC 3X2SON |
27,943 | - |
|
Datasheet | 3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 5.1V | 8.4V (Typ) | 2.5A (8/20µs) | 20W | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 3-X2SON (1x0.6) |
|
SMCJ6.0CATVS DIODE 6VWM 10.3VC DO214AB |
18,107 | - |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 145.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP4021-01FTG-CTVS DIODE 5VWM 19.6VC SOD323 |
13,702 | - |
|
Datasheet | SC-76, SOD-323 | SP4021, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 1 | 5V (Max) | 6.3V | 19.6V (Typ) | 25A (8/20µs) | 600W | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ESD7104MUTAGTVS DIODE 5VWM 10VC 10UDFN |
12,210 | - |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 5.5V | 10V | - | - | No | HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.5x1) |
|
|
SMCJ40CATVS DIODE 40VWM 64.5VC DO214AB |
11,075 | - |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 23.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
824012823TVS DIODE 3.3VWM 13VC DFN1210-6 |
6,525 | - |
|
Datasheet | 6-XFDFN | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 4.5V | 13V (Typ) | 3A (8/20µs) | - | No | General Purpose | 0.18pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | DFN1210-6 |
|
|
SMCJ12CATVS DIODE 12VWM 19.9VC DO214AB |
50,976 | - |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 75.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMBJ400CATVS DIODE 400VWM 648VC DO214AA |
43,857 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 400V | 447V | 648V | 1.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
