TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS9503P+TVS DIODE 7.5VWM 6TSOC |
10,278 | - |
|
Datasheet | 6-SMD, J-Lead | - | Tube | Active | Zener | 1 | - | 7.5V | - | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOC |
|
5.0SMDJ64AHTVS DIODE 64VWM 103VC DO214AB |
5,133 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 48.6A | 5000W (5kW) | No | Telecom | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
5KP24CATVS P600 24V 5000W BIDIR |
4,200 | - |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 131.1A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
5.0SMDJ90CATVS DIODE 90VWM 146VC DO214AB |
1,271 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 34.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3304NATCTTVS DIODE 3.3VWM 18VC SLP2626P10 |
237,803 | - |
|
Datasheet | 10-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 18V | 25A (8/20µs) | 450W | Yes | General Purpose | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP2626P10 (2.6x2.6) |
|
RCLAMP0504M.TBTTVS DIODE 5VWM 25VC 10MSOP |
13,541 | - |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 12A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
|
5.0SMDJ54CATVS DIODE 54VWM 87.1VC DO214AB |
17,751 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 57.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ70CATVS DIODE 70VWM 113VC DO214AB |
4,432 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ22CATVS DIODE 22VWM 35.5VC DO214AB |
2,996 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 141A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ60CATVS DIODE 60VWM 96.8VC DO214AB |
5,759 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg "5.0SMDJ33CA-Q")
|
5.0SMDJ33CA-QTVS DIODE 33VWM 53.3VC SMC |
5,715 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
SRV05-4MR6T1GTVS DIODE 5VWM 17.5VC 6TSOP |
4,723 | - |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 5A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
5.0SMDJ28CATVS DIODE 28VWM 45.4VC DO214AB |
3,644 | - |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 110A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
CDNBS08-T05CTVS DIODE 5VWM 13.5VC 8-SOIC |
12,339 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 6V | 13.5V (Typ) | 42A (8/20µs) | 500W | No | General Purpose | 308pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
RCLAMP0514M.TBTTVS DIODE 5VWM 20VC 10MSOP |
8,996 | - |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | 125W | Yes | General Purpose | 1.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
5KP36CATVS P600 36V 5000W BIDIR |
1,461 | - |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 87.8A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|

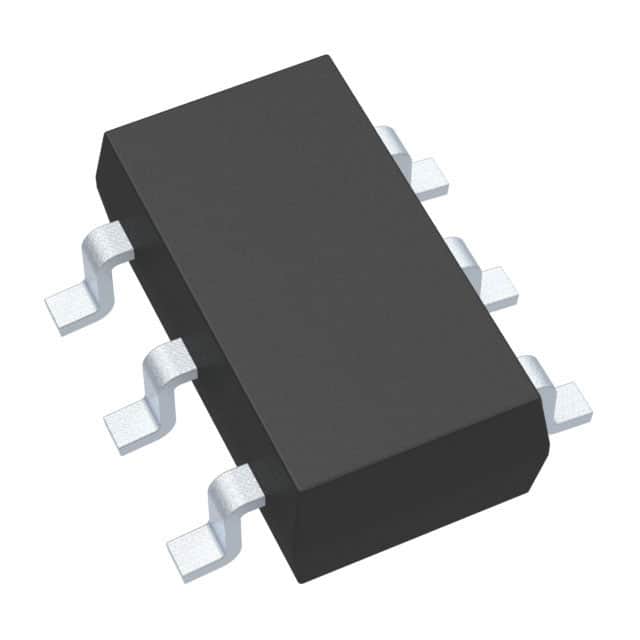

MAX3207EAUT+TTVS DIODE SOT23-6 |
29,205 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | - | - | - | - | - | Yes | USB OTG | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
ATV50C401JB-HFTVS DIODE 400VWM 648VC DO214AB |
16,944 | - |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 400V | 447V | 648V | 7.7A | 5000W (5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
LC03-3.3BTGTVS DIODE 3.3VWM 17VC 8-SOIC |
12,234 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | LC03-3.3, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 3.3V | 17V | 150A (8/20µs) | 3300W (3.3kW) | Yes | Ethernet | 9pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SLVU2.8.TCTTVS DIODE 2.8VWM 12.5VC SOT23-3 |
11,568 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | SLV | Tape & Reel (TR) | Active | Zener | 1 | - | 2.8V (Max) | 3V | 12.5V | 24A (8/20µs) | 400W | No | Ethernet | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
