TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS777722.6V 125A UNI-DIRECTIONAL TVS |
5,395 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H09D52V5UESD PROTECTION DIODE |
1,459 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 12V | 9A | 100W | No | CAN, Telecom | 145pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
H6A5D55V0UESD PROTECTION DIODE |
2,532 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 15V | 6.5A | 100W | No | CAN, Telecom | 80pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMBJ45CATVS DIODE 45VWM 72.7VC |
1,793 | - |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.25A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
H06D324VBLESD PROTECTION DIODE |
2,379 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 56V | 6A | 350W | No | Ethernet, USB | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMBJ10ATVS DIODE 10VWM 17VC |
3,624 | - |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 10V | 11.1V | 17V | 35.29A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE36CTVS, 29.1V, 1500W Bi |
7,935 | - |
|
Datasheet | Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 29.1V | 32.4V | 52V | 30A | 1500W (1.5kW) | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|

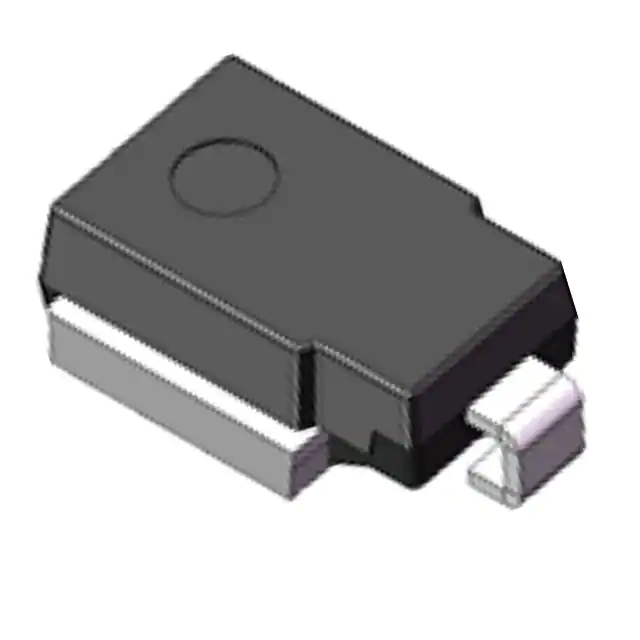

SM8S22CATVS 6600W 22VWM BiDir DO-218AB |
2,750 | - |
|
Datasheet | DO-218AB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 186A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SMBJ36CATVS DIODE 36VWM 58.1VC |
2,802 | - |
|
Datasheet | DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.33A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMF15ATVS DIODE 15VWM 24.4VC |
4,204 | - |
|
Datasheet | SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 8.2A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
30KP260ATVS DIODE UP 260VRWM 416.0VC |
2,617 | - |
|
Datasheet | P600, Axial | 30KP | Bulk | Active | Zener | 1 | - | 260V | 290.4V | 416V | 72.8A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
15KP260ATVS DIODE UP 260VRWM 416.7VC |
6,474 | - |
|
Datasheet | P600, Axial | 15KP | Bulk | Active | Zener | 1 | - | 260V | 290.4V | 416.7V | 36.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
RT100KP28CATVS DIODE BP 28VRWM 58.0VC |
6,519 | - |
|
Datasheet | P600, Axial | RT100KP | Bulk | Active | Zener | - | 1 | 28V | 31.28V | 58V | 1715A (1.715kA) | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA40ATVS DIODE UP 40VRWM 65.8VC |
3,172 | - |
|
Datasheet | P600, Axial | 15KPA | Bulk | Active | Zener | 1 | - | 40V | 44.7V | 65.8V | 229.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KP200CATVS DIODE BP 200VRWM 319.1VC |
2,304 | - |
|
Datasheet | P600, Axial | 15KP | Bulk | Active | Zener | - | 1 | 200V | 223.4V | 319.1V | 47.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
MART100KP170CATVS DIODE BP 170VRWM 334.0VC |
8,003 | - |
|
Datasheet | P600, Axial | MART100KP | Bulk | Active | Zener | - | 1 | 170V | 189.9V | 334V | 300A | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
MART100KP43CATVS DIODE BP 43VRWM 84.5VC |
7,107 | - |
|
Datasheet | P600, Axial | MART100KP | Bulk | Active | Zener | - | 1 | 43V | 48V | 84.5V | 1184A (1.184kA) | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KP48CATVS DIODE BP 48VRWM 77.7VC |
9,524 | - |
|
Datasheet | P600, Axial | 15KP | Bulk | Active | Zener | - | 1 | 48V | 53.6V | 77.7V | 194.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
RT100KP90CATVS DIODE BP 90VRWM 178.0VC |
8,298 | - |
|
Datasheet | P600, Axial | RT100KP | Bulk | Active | Zener | - | 1 | 90V | 100.5V | 178V | 563A | 100000W (100kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
30KPA66ATVS DIODE UP 66VRWM 107.0VC |
2,921 | - |
|
Datasheet | P600, Axial | 30KPA | Bulk | Active | Zener | 1 | - | 66V | 73.7V | 107V | 283.2A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
