Wireless Charging Coils

Use the filters and product table below to compare Wireless Charging Coils components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
AWCCA-RX300200-102 WIRELESS CHARGING COIL Abracon LLC	1,283	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Receiver	1 Coil, 1 Layer	6.3µH	±10%	140mOhm	26 @ 100kHz	-	-	-	-25°C ~ 85°C	1.18" Dia x 0.08" H (30.0mm x 2.0mm)

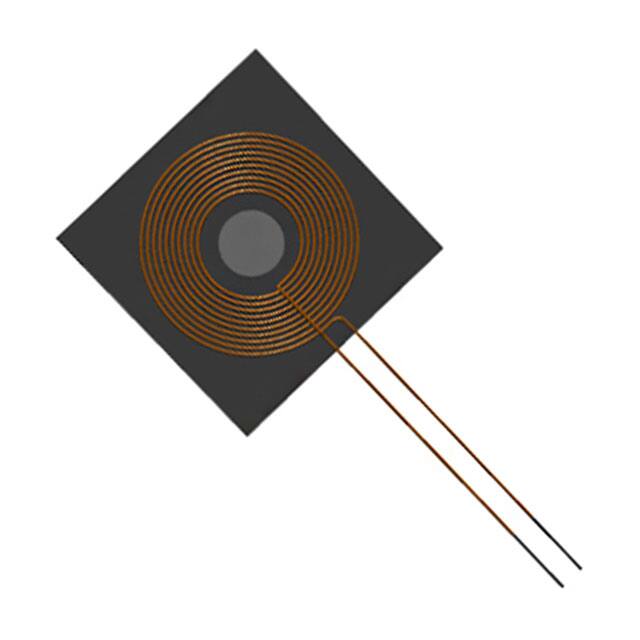

AWCCA-37R37H18-C01-B RECEIVER COIL, 1 COIL, 10UH Abracon LLC	3,728	-	RFQ	Datasheet	AWCCA	Box	Obsolete	Receiver	1 Coil, 1 Layer	10µH	±10%	160mOhm	38 @ 100kHz	-	-	-	-25°C ~ 85°C	1.46" Dia x 0.07" H (37.0mm x 1.8mm)
AWCCA-20R20H08-C01-B RECEIVER COIL, 12UH Abracon LLC	2,290	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver	1 Coil, 1 Layer	12µH	±10%	290mOhm	20 @ 100kHz	-	-	-	-25°C ~ 85°C	0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm)
AWCCA-20N20H20-C01-B TX OR RX COIL, 1 COIL 6.3UH Abracon LLC	4,966	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	150mOhm	34 @ 100kHz	-	-	-	-25°C ~ 85°C	0.79" Dia x 0.08" H (20.0mm x 2.0mm)
AWCCA-26R26H08-C01-B RX 1 COIL 1 LAYER 10UH Abracon LLC	4,962	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver	1 Coil, 1 Layer	10µH	±10%	320mOhm	18.5 @ 100kHz	-	-	-	-25°C ~ 85°C	1.02" Dia x 0.03" W (26.0mm x 0.8mm)
AWCCA-15N15H06-C01-B TX OR RX COIL, 1 COIL, 14.9UH Abracon LLC	4,911	-	RFQ	Datasheet	AWCCA	Box	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	14.9µH	±10%	1Ohm	8.5 @ 100kHz	-	-	-	-25°C ~ 85°C	0.59" Dia x 0.02" H (15.0mm x 0.6mm)
AWCCA-TX523517-102 WIRELESS CHARGING COIL Abracon LLC	3,609	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	-	80mOhm	60 @ 100kHz	-	-	-	-40°C ~ 120°C	2.05" L x 1.38" W x 0.07" H (52.0mm x 35.0mm x 1.8mm)

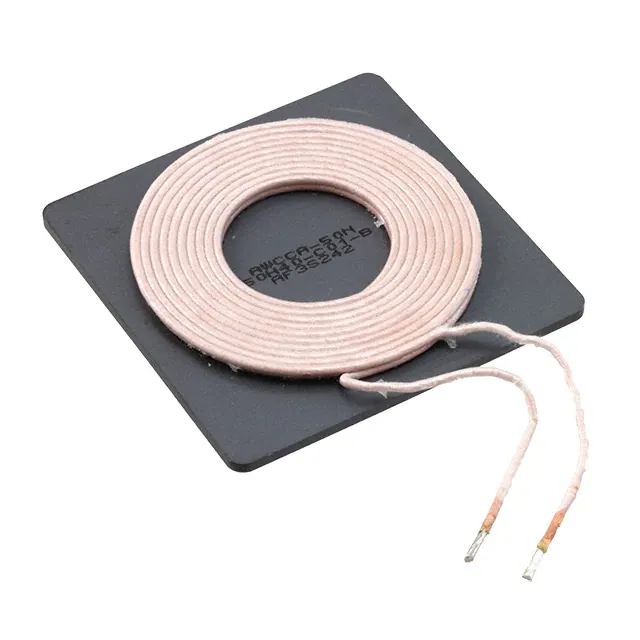

AWCCA-50N50H40-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	3,865	-	RFQ	Datasheet	AWCCA-50N50	Box	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	165 @ 100kHz	5.7A	27A	2.9MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)
AWCCA-50N50H40-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11.1A Abracon LLC	1,752	-	RFQ	Datasheet	AWCCA-50N50	Box	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	72 @ 100kHz	11.1A	40A	5.7MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)
AWCCA-TX535315-101 WIRELESS CHARGING COIL Abracon LLC	4,167	-	RFQ	Datasheet	AWCCA	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	10µH	±10%	55mOhm	135 @ 125kHz	-	-	-	-40°C ~ 85°C	2.09" L x 2.09" W x 0.18" H (53.0mm x 53.0mm x 4.5mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Wireless Charging Coils?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Wireless Charging Coils FAQ

Common questions about filtering, comparing and sourcing Wireless Charging Coils components.

How can I narrow the Wireless Charging Coils selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Wireless Charging Coils part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
