Wireless Charging Coils
Use the filters and product table below to compare Wireless Charging Coils components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT202012-15F2-IDTX 1 COIL 2 LYR 6.2UH |
2,891 |
1+：$2.84000 10+：$2.33400 45+：$2.05444 90+：$1.93700 135+：$1.87148 270+：$1.76474 540+：$1.66420 1035+：$1.57518 2520+：$1.46250 |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 6.2µH | ±5% | 80mOhm | - | - | - | - | - | 0.80" Dia x 0.10" H (20.3mm x 2.7mm) |
|
WR202010-18M8-IDRX 1 COIL 2 LYR 11UH |
0 |
1+：$3.58000 10+：$2.94700 45+：$2.59378 90+：$2.44567 135+：$2.36304 270+：$2.22833 540+：$2.10144 1035+：$1.98911 2520+：$1.89500 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 11µH | ±5% | 350mOhm | - | - | - | - | - | 0.79" Dia x 0.03" H (20.0mm x 0.8mm) |
|

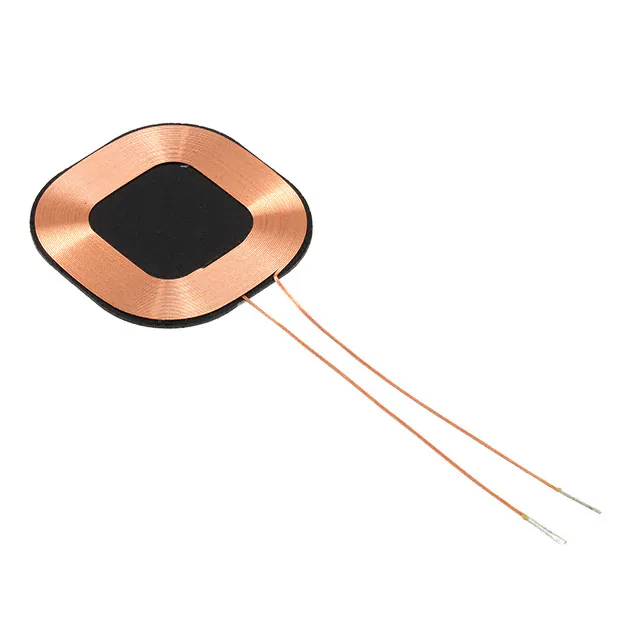

WR303050-15F5-GRX 1 COIL 2 LYR 12.3UH |
10,130 |
1+：$3.38000 24+：$2.57667 48+：$2.42938 72+：$2.34722 120+：$2.24767 264+：$2.10246 504+：$1.99054 1008+：$1.87733 2520+：$1.77274 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 12.3µH | - | 410mOhm | - | - | - | - | - | 1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm) |
|
WT303012-12F2-IDTX 1 COIL 2 LYR 6.3UH |
4,301 |
1+：$3.88000 10+：$3.19000 28+：$2.92286 56+：$2.75589 112+：$2.59857 252+：$2.42611 504+：$2.28798 1008+：$2.15792 2520+：$2.06925 |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 6.3µH | ±5% | 90mOhm | - | - | - | - | - | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|
WR301025-19M8-GRX 1 COIL 2 LYR 12.8UH |
3,420 |
1+：$2.06000 10+：$1.69500 25+：$1.56840 88+：$1.40932 176+：$1.32881 264+：$1.28394 528+：$1.21072 1056+：$1.14178 2552+：$1.05981 |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 12.8µH | - | 1.27Ohm Max | - | - | - | - | - | - |
|
WR221230-36M8-GRX 1 COIL 2 LYR 27.9UH |
939 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27.9µH | - | 1.21Ohm Max | - | - | - | - | - | - |
|
WR151580-48F2-GRX 1 COIL 4 LYR 27.1UH |
636 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 4 Layer | 27.1µH | - | 500mOhm | - | - | - | - | - | 0.59" Dia x 0.10" H (15.0mm x 2.6mm) |
|
WT151512-22F2-IDTX 1 COIL 2 LYR 6.8UH |
0 |
1+：$3.51000 10+：$2.88400 25+：$2.66840 60+：$2.47717 120+：$2.33567 300+：$2.16127 540+：$2.05646 1020+：$1.94892 2520+：$1.85000 |
|
Datasheet | WT | Box | Active | Transmitter | 1 Coil, 2 Layer | 6.8µH | ±5% | 170mOhm | - | - | - | - | - | 0.60" Dia x 0.09" H (15.3mm x 2.2mm) |
|

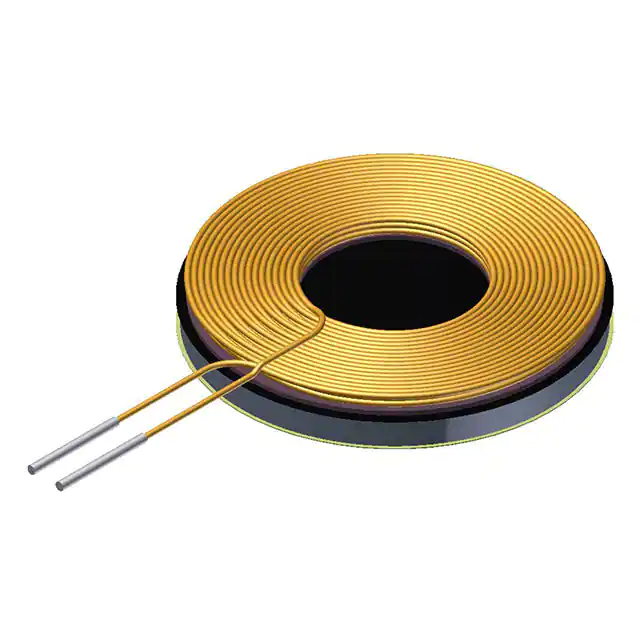

WR111180-49F5-GRX 1 COIL 3 LYR 31.8UH |
151 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 3 Layer | 31.8µH | ±5% | 1.34Ohm | - | - | - | - | - | 0.43" Dia x 0.07" H (11.0mm x 1.7mm) |
|
WR202010-18M8-SMRX 1 COIL 2 LYR 10.68UH |
290 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 10.68µH | ±5% | 350mOhm | - | - | - | - | - | 0.79" Dia x 0.03" H (20.0mm x 0.8mm) |
Wireless Charging Coils FAQ
Common questions about filtering, comparing and sourcing Wireless Charging Coils components.
How can I narrow the Wireless Charging Coils selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Wireless Charging Coils part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
