Wireless Charging Coils
Use the filters and product table below to compare Wireless Charging Coils components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

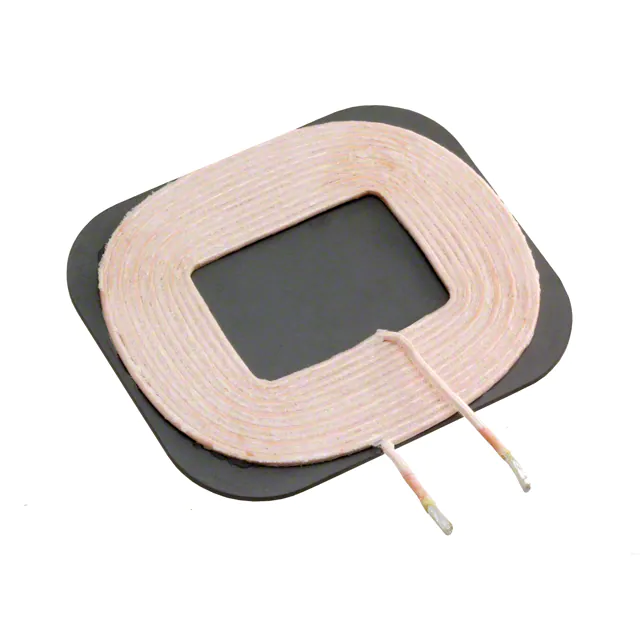

SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 | - |
|
Datasheet | SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|

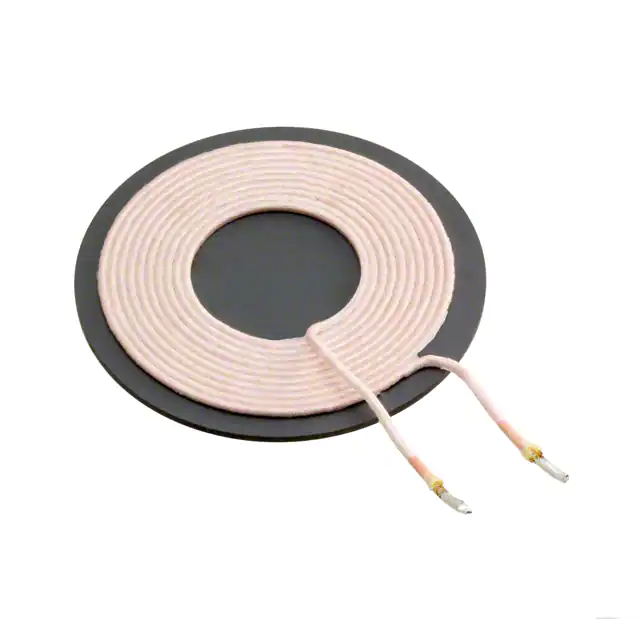

RWC5050AK060-500TX 1 COIL 1 LAYER 6.5UH |
1,399 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 50mOhm Max | 70 @ 100kHz | - | - | - | -40°C ~ 125°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
RWC5353EJ240-501TX 1 COIL 2 LAYER 24UH 5.5A |
4,076 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

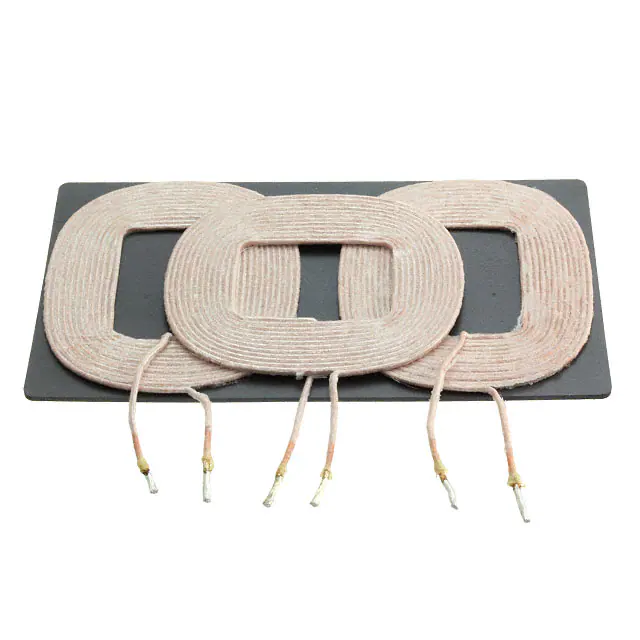

SWC10056AA120-500TRANSMITTER 3 COIL 1 LAYER |
4,650 | - |
|
Datasheet | SWC | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) |
|
RWC5353EJ240-500TX 1 COIL 2 LAYER 24UH 5.5A |
3,971 | - |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

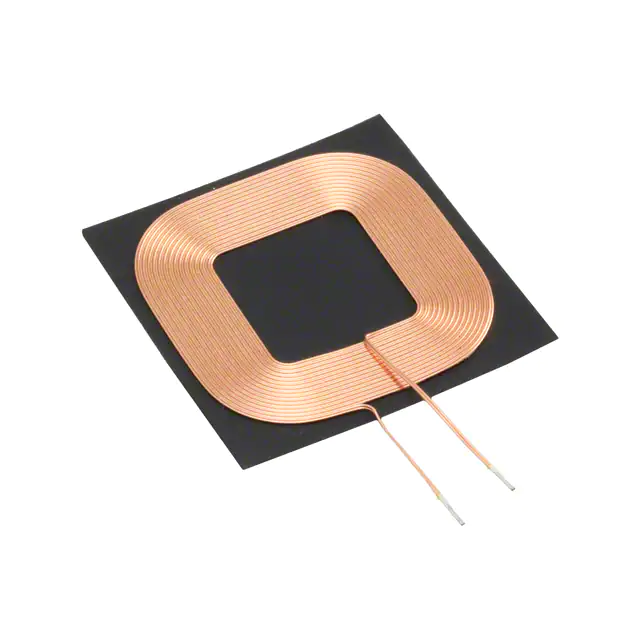

SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
2,536 | - |
|
Datasheet | SWC | Box | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
Wireless Charging Coils FAQ
Common questions about filtering, comparing and sourcing Wireless Charging Coils components.
How can I narrow the Wireless Charging Coils selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Wireless Charging Coils part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
