Wireless Charging Coils
Browse available Wireless Charging Coils part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760308101105TX 1 COIL 2 LAYER 3.3UH 3A |
4,116 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer | 3.3µH | ±10% | 80mOhm Max | 30 @ 125kHz | 3A | 6A | 20MHz | -20°C ~ 105°C | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
|
760308100111TX 1 COIL 1 LAYER 6.3UH 13A |
1,913 | - |
|
Datasheet | WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 51mOhm Max | 120 @ 125kHz | 6A | 10A | 24MHz | -20°C ~ 105°C | 1.97" Dia x 0.24" H (50.0mm x 6.0mm) |
|
760308101304TX 1 COIL 1 LAYER 6.3UH 6A |
4,218 | - |
|
Datasheet | WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm Max | 115 @ 125kHz | 6A | 10A | 16MHz | -20°C ~ 105°C | 1.85" Dia x 0.12" H (47.0mm x 3.0mm) |
|
760308103102TX 1 COIL 1 LAYER 10UH 7A |
2,353 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm Max | 130 @ 125kHz | 7A | 10A | 11MHz | -20°C ~ 105°C | 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm) |
|
760308103203RX 1 COIL 1 LAYER 12UH 1.55A |
3,566 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 550mOhm | 21 @ 125kHz | 1.55A | 3A | 20MHz | -20°C ~ 105°C | 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) |
|
WT-505060-8K2-LTTX 1 COIL 1 LYR 4.95UH |
4,687 | - |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 4.95µH | - | 30mOhm | 97 @ 100kHz | - | - | - | - | - |
|
760308102212RX 1 COIL 1 LAYER 5.4UH 2A |
1,177 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 5.4µH | ±10% | 240mOhm Max | 18 @ 125kHz | 2A | 4A | 25MHz | -20°C ~ 105°C | 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) |
|
760308103211RX 1 COIL 1 LAYER 7.3UH 2.5A |
2,186 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | ±10% | 200mOhm Max | 28 @ 125kHz | 2.5A | 5A | 12.7MHz | -20°C ~ 105°C | 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm) |
|
760308103215RX 1 COIL 1 LAYER 14.3UH 3A |
1,912 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 14.3µH | ±10% | 190mOhm Max | 40 @ 125kHz | 3A | 8A | 8.8MHz | -20°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
|
760308101410WE-WPCC WIRELESS POWER CHARGING |
2,622 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 100mOhm | 170 @ 125kHz | 5.5A | 10A | 6MHz | -20°C ~ 105°C | 1.97" Dia x 0.12" H (50.0mm x 3.1mm) |
|
760308102308WE-WPCC WIRELESS POWER CHARGING |
2,110 | - |
|
Datasheet | WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 3µH | ±10% | 35mOhm Max | 60 @ 125kHz | 8.5A | 15A | 27MHz | -20°C ~ 105°C | 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm) |
|
760308104119TX 2 COIL 1 LAYER 12UH 11.5UH 8A |
2,494 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 12µH, 11.5µH | ±10% | 56mOhm | 130 @ 125kHz | 8A | 12A | 12MHz | -20°C ~ 105°C | 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm) |
|
760308103145WE-WPCC WIRELESS POWER CHARGING |
3,960 | - |
|
Datasheet | WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH | ±10% | 83mOhm Max | 150 @ 125kHz, 145 @ 125kHz | 8.5A | 24A | 10MHz | -20°C ~ 105°C | 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm) |
|
760308103147WE-WPCC WIRELESS POWER CHARGING |
2,950 | - |
|
Datasheet | WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 8.5µH, 7.5µH, 8.5µH | ±10% | 56mOhm Max | 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz | 9A, 10A, 9A | 18A | 11MHz | -20°C ~ 105°C | 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm) |
|
WT202030-16M8-GTX 1 COIL, 1 LYR 6.2UH |
1,137 | - |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.2µH | - | 190mOhm | - | - | - | - | - | - |
|

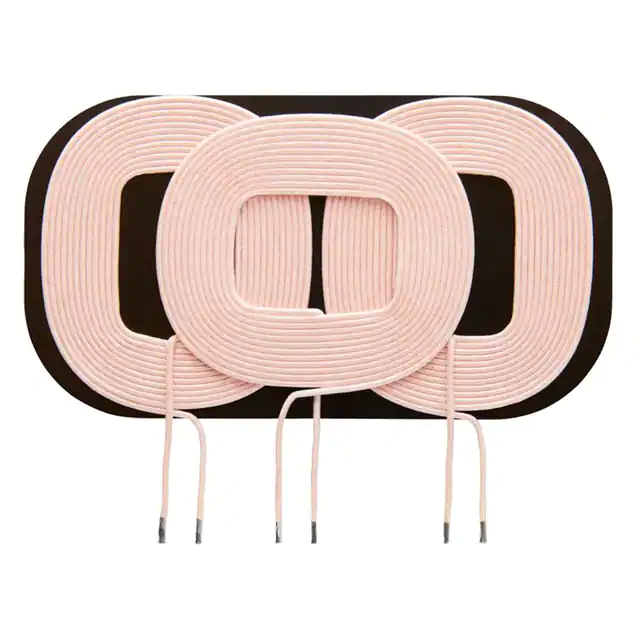

WTM-12R5K-A6MULTI-COIL WIRELESS CHARGING COI |
3,925 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|
WR524825-17M6-NF-GRX 1 COIL, 1 LYR 16.8UH |
1,206 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.8µH | - | 750mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm) |
|

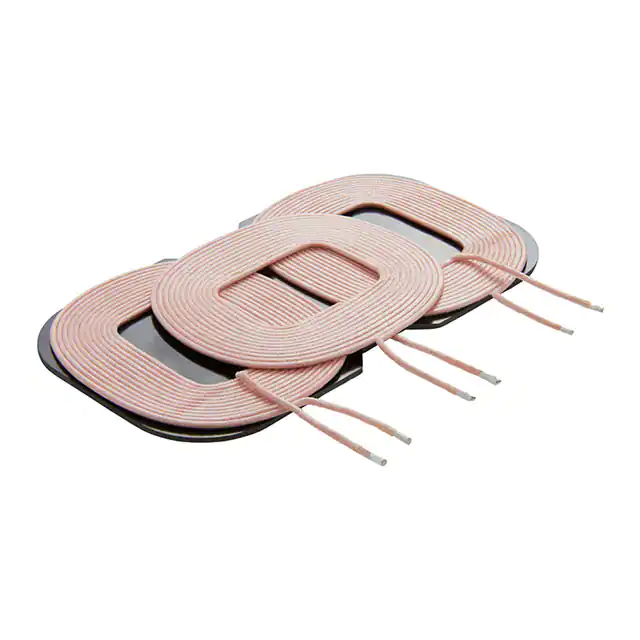

WTM12R5K-A28MULTI-COIL WIRELESS CHARGING COI |
3,233 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|
WTM9R8K-A9MULTI-COIL WIRELESS CHARGING COI |
1,617 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 60mOhm Max, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
|
AWCCA-RX404012-101RX COIL 1 LAYER 8.0UH |
3,469 | - |
|
Datasheet | AWCCA | Tray | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm Max | - | - | - | - | - | 1.57" L x 1.57" W x 0.05" H (40.0mm x 40.0mm x 1.2mm) |
Wireless Charging Coils FAQ
Common questions about selecting, comparing and sourcing Wireless Charging Coils components through Winsun (HK) Electronics.
What should I check when selecting Wireless Charging Coils components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Wireless Charging Coils part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Wireless Charging Coils parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Wireless Charging Coils components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
