Single Zener Diodes
Use the filters and product table below to compare Single Zener Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4964DIODE ZENER 18V 5W AXIAL |
88 | - |
|
Datasheet | - | E, Axial | Bulk | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | - |
|
JANTX1N3825A-1DIODE ZENER 4.7V 1W DO41 |
40 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 4.7 V | ±5% | 1 W | 8 Ohms | 3 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C (TA) | Military | MIL-PRF-19500/115 | Through Hole | DO-41 |
|
|
1N4981US/TRDIODE ZENER 91V 5W E-MELF |
61 | - |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 91 V | ±5% | 5 W | 90 Ohms | 2 µA @ 69.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | E-MELF |
|
JANTX1N4960USDIODE ZENER 12V 5W D5B |
69 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 12 V | ±5% | 5 W | 2.5 Ohms | 10 µA @ 9.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
1N4113DUR-1/TRDIODE ZENER 19V 500MW DO213AA |
100 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | 19 V | ±1% | 500 mW | 150 Ohms | 50 nA @ 14.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-213AA |
|
|
JANTX1N4977USDIODE ZENER 62V 5W D5B |
57 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 62 V | ±5% | 5 W | 42 Ohms | 2 µA @ 47.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|

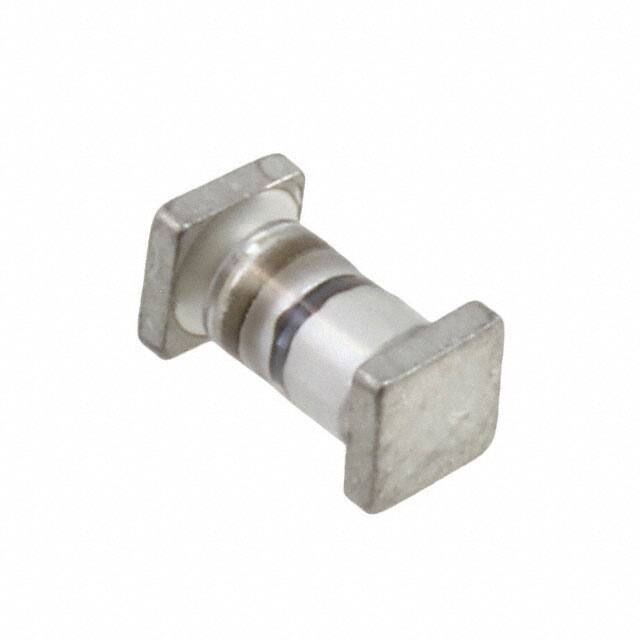

1N4481USDIODE ZENER 47V 1.5W D5A |
90 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 47 V | ±5% | 1.5 W | 50 Ohms | 50 nA @ 37.6 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
|
1N4476USDIODE ZENER 30V 1.5W SQ-MELF |
57 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 30 V | ±5% | 1.5 W | 20 Ohms | 50 nA @ 24 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
1N992ADIODE ZENER 200V 500MW DO7 |
41 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Discontinued at Digi-Key | 200 V | ±10% | 500 mW | 2500 Ohms | 5 µA @ 152 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
|
1N5533CUR-1/TRDIODE ZENER 13V 500MW DO213AA |
100 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | 13 V | ±2% | 500 mW | 90 Ohms | 10 nA @ 11.7 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-213AA |
Single Zener Diodes FAQ
Common questions about filtering, comparing and sourcing Single Zener Diodes components.
How can I narrow the Single Zener Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Zener Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
