Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G-MRCO-005SENSOR MAGNETIC 2.5 MM POLEPITCH |
4,020 | - |
|
Datasheet | Module | MLS | Bulk | Active | - | Linear Position | Magnetoresistive | - | - | Wheatstone Bridge | - | External Magnet, Not Included | - | 50 kOhms | - | 5V | Custom | SMD (SMT) Tab | -40°C ~ 85°C | - | - | - |
|
|
PT8420-0025-321-1130PT8420-0025-321-1130 |
4,854 | - |
|
Datasheet | Module | PT8 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 635.00mm (0 ~ 25.00") | 4mA ~ 20mA | Clockwise Increase | String Potentiometer | - | - | - | 8V ~ 34V | Chassis Mount | Connector | -40°C ~ 90°C | - | - | - |
|
|
SKJ-400-4400 IN CANJ1939 IP67 STRING POT |
3,831 | - |
|
Datasheet | Module | SKJ | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 10160.00mm (0 ~ 400.00") | Analog Voltage | - | String Potentiometer | - | - | - | 10V ~ 36V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
SP2-12SENSOR LINEAR 317MM WIRE LEADS |
4,685 | - |
|
Datasheet | Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 317mm (0 ~ 12.5") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
SPD-25-3SENSOR LINEAR 635MM CONNECTOR |
3,341 | - |
|
Datasheet | Box with Connector | SPD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 635mm (0 ~ 25") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 40V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
|
SP3-12POT STRING 12.5 INCH |
2,256 | - |
|
Datasheet | Box with Connector | SP1 | Bulk | Active | - | Linear Position | - | - | 0 ~ 1270.00mm (0 ~ 50.00") | 0V ~ 10V, 4mA ~ 20mA | - | String Potentiometer | ±0.25% | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
|
SR1M-175STRING POT, 175 INCH RANGE |
4,811 | - |
|
Datasheet | Box with Connector | SR1M | Box | Active | - | Linear Position | - | - | 25 ~ 4445.00mm (0.98 ~ 175.00") | 40mA ~ 20mA | 4mA ~ 20mA | - | ±0.5% | - | - | 10V ~ 30V | Panel Mount | Connector | -40°C ~ 85°C | - | - | - |
|

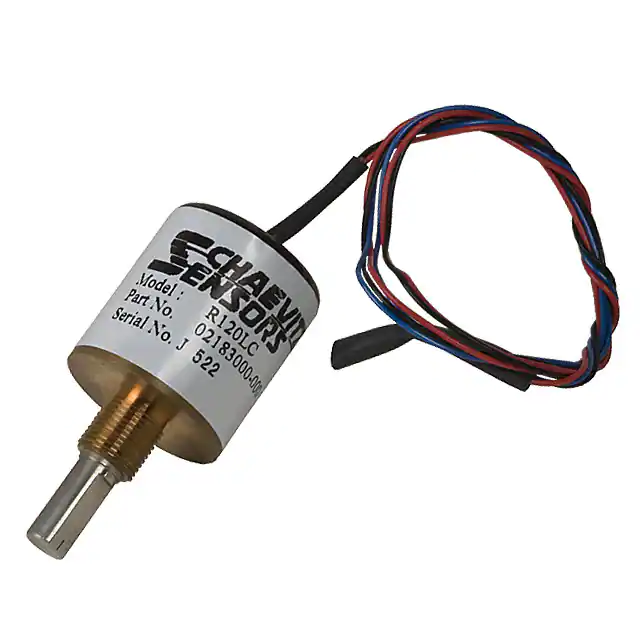

02183000-000SENSOR ROTARY 120DEG WIRE LEADS |
4,314 | - |
|
Datasheet | Cylinder | R120LC | Bulk | Active | - | Rotary Position | Inductive | 0° ~ 120°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Wire Leads | -40°C ~ 85°C | - | - | - |
|
|
SE1-50STRING POT, 50 INCH RANGE |
1,378 | - |
|
Datasheet | Box with Connector | SE1 | Box | Active | - | Linear Position | - | - | 0 ~ 1270.00mm (0 ~ 50.00") | Quadrature, TTL | - | String Potentiometer | - | - | - | 5V | Chassis Mount | Connector | -10°C ~ 85°C | - | - | - |
|
|
04-0760-0007PT101-0020-111-1110 |
2,861 | - |
|
Datasheet | - | - | Box | Active | - | Linear Position | - | - | 0 ~ 508.00mm (0 ~ 20.00") | Analog Voltage | - | String Potentiometer | - | - | - | - | - | Wire Leads | -40°C ~ 90°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
