Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6915-1003-030POT ELEMENT/WIPER 10K OHM |
2,654 | - |
|
Datasheet | - | 6915 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Exposed Element - Rotary | ±0.5% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|

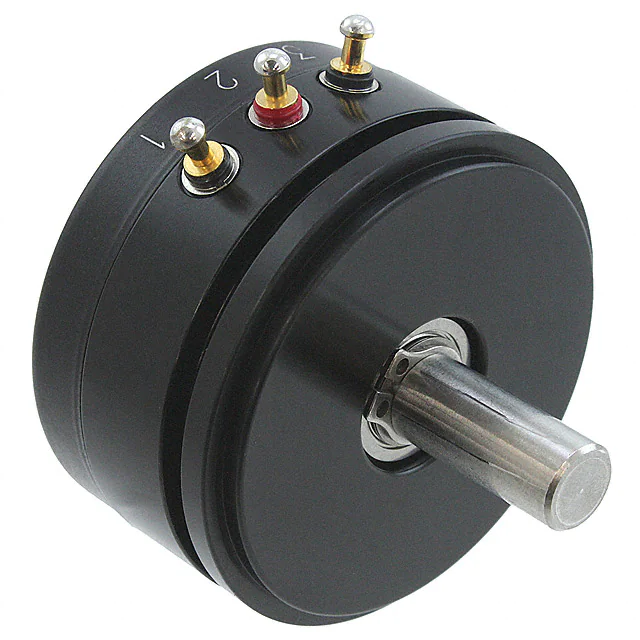

6015-1002-030SENSOR ROTARY 340DEG SLDR TURRET |
4,019 | - |
|
Datasheet | Module | 6015 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
|
6209-1002-030SENSOR ROTARY 340DEG SLDR TURRET |
2,627 | - |
|
Datasheet | Module, Round Shaft | 6209 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|

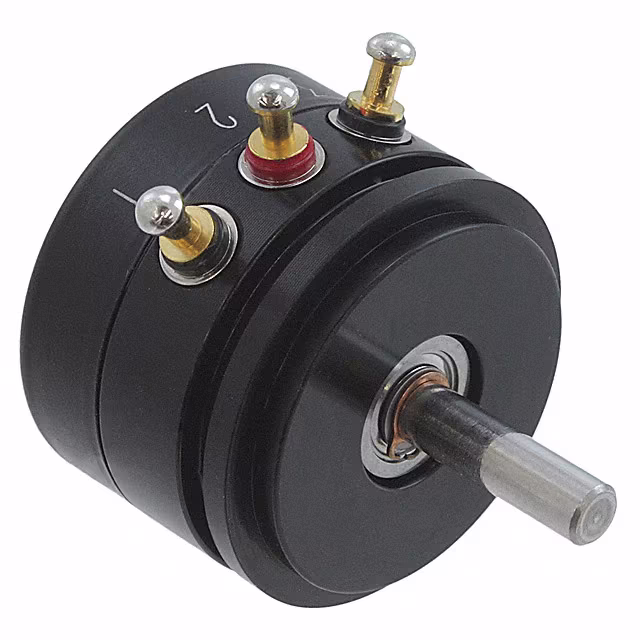

6009-1002-030SENSOR ROTARY 340DEG SLDR TURRET |
1,534 | - |
|
Datasheet | Module | 6009 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 5 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
|
010312370000-MCD-375-250 |
1,230 | - |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
010312340000-MCD-375-025 |
3,504 | - |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6009-1003-030ROTARY POSITION 10K OHM SERVO |
1,716 | - |
|
Datasheet | Module | 6009 | Bag | Active | - | Rotary Position | Resistive | 0° ~ 340°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±0.5% | 10 kOhms | ±10% | - | Custom | Solder Turret | -65°C ~ 125°C | - | - | - |
|
5903-1010-030POT LINEAR POSITION 10KOHM 1"D |
4,183 | - |
|
Datasheet | - | 5903 | Bag | Active | - | Linear Position | Resistive | - | 0 ~ 25.40mm (0 ~ 1.00") | Resistive | - | Round Shaft | ±1% | 10 kOhms | ±10% | - | Custom | Wire Leads | -65°C ~ 125°C | - | - | - |
|
02160023-000SENSOR ANGLE 39.98DEG CBL W/CONN |
1,689 | - |
|
Datasheet | Module | AngleStar® | Bulk | Obsolete | - | Angle | - | 39.98° (±19.99°) | - | Digital Readout | - | - | ±1% | - | - | 9V ~ 15V | Chassis Mount | Cable with Connector | -18°C ~ 55°C | - | - | - |
|
|
02160021-000SENSOR ANGLE 90DEG CBL W/CONN |
4,479 | - |
|
Datasheet | Module | AngleStar® | Bulk | Obsolete | - | Angle | - | 90° (±45°) | - | Digital Readout | - | - | ±1% | - | - | 9V ~ 15V | Chassis Mount | Cable with Connector | -18°C ~ 55°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
