Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9861R5KL2.0SENSOR ROTARY PIN HEADER |
1,503 | - |
|
Datasheet | Box with Connector | 9861 | Bulk | Active | - | Linear, Rotary Position | Resistive | - | - | Resistive | Clockwise Increase | Slotted Shaft | ±2% | - | ±20% | - | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
93621201HALL EFFECT ROTARY SENSOR |
3,648 | - |
|
Datasheet | Box with Connector | 9360 | Bag | Active | - | Rotary Position | Hall Effect | 120° (±60°) | - | Analog Voltage, PWM | Counterclockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

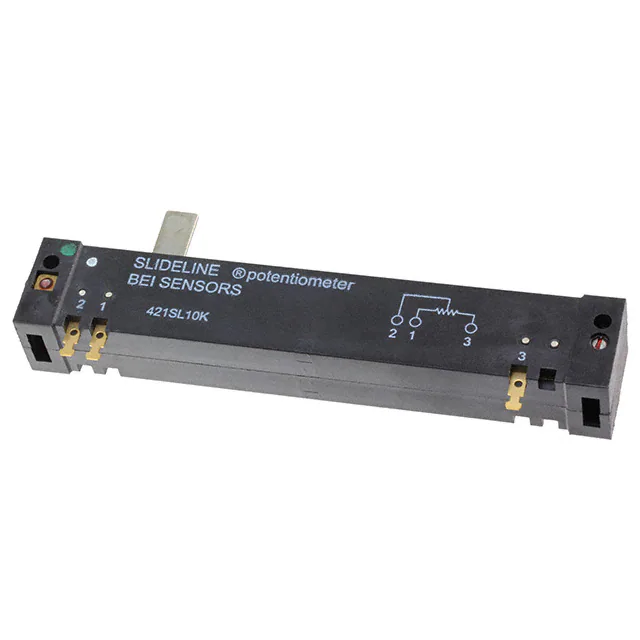

421SL10KSENSOR LINEAR 69.85MM SOLDER LUG |
3,697 | - |
|
Datasheet | Slider | 420 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 69.85mm (0 ~ 2.75") | Resistive | - | - | ±2% | 10 kOhms | - | - | Panel Mount | Solder Lug | - | - | - | - |
|
602R2KL.35SENSOR LINEAR 50.8MM WIRE LEADS |
2,831 | - |
|
Datasheet | Cylinder, Wire Leads | 600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 50.80mm (0 ~ 2.00") | Resistive | - | Round Shaft | ±0.35% | 2 kOhms | - | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
|
610R10KL.09LINEAR POSITION SENSORCP |
4,898 | - |
|
Datasheet | Module, Round Shaft | 600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 10mm (0 ~ 0.39") | Resistive | - | Shaft | ±0.09% | 10 kOhms | - | - | Panel Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
9800-682-1SENSOR ROTARY 120 DEG CONNECTOR |
2,063 | - |
|
Datasheet | Box with Connector | 9800 | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 85°, 0° ~ 120° | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Connector | -40°C ~ 135°C | - | - | - |
|
93603603SENSOR ROTARY 360DEG CONNECTOR |
3,840 | - |
|
Datasheet | Box with Connector | 9360 | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage, PWM | Programmable | Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9960-090-C-5C-SWSENSOR ROTARY 90DEG CBL W/CONN |
4,680 | - |
|
Datasheet | Box with Connector | 9960 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90° | - | Analog Voltage | Programmable | Hole for Shaft | - | 10 kOhms | - | 5V | Chassis Mount | Cable with Connector | -40°C ~ 125°C | - | - | - |
|
|
93601803SENSOR ROTARY 180DEG CONNECTOR |
4,758 | - |
|
Datasheet | Box with Connector | 9360 | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180° | - | Analog Voltage, PWM | Programmable | - | - | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
9855R5KL2.0SENSOR ROTARY 180 DEG CONNECTOR |
1,951 | - |
|
Datasheet | Box with Connector | 9850 Gen II | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 130°, 0° ~ 180° | - | Resistive | - | Shaft | ±2% | 5 kOhms | - | - | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
