Angle, Linear Position Measuring
Use the filters and product table below to compare Angle, Linear Position Measuring components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

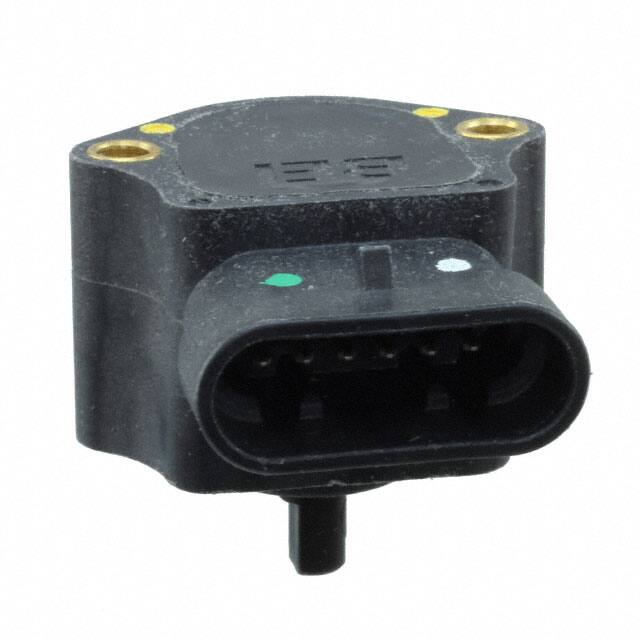

9902090CWSENSOR ROTARY 90DEG CONNECTOR |
2,594 | - |
|
Datasheet | Box with Connector | 9900 | Bulk | Obsolete | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage | - | Flatted Shaft | - | - | - | 5V | Chassis Mount | Connector | -40°C ~ 150°C | - | - | - |
|
9902120NSHALL EFFECT ROTARY SENSOR |
2,809 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 120° (±60°) | - | - | - | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
9901120NSHALL EFFECT ROTARY SENSOR |
2,701 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 120° (±60°) | - | - | - | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
9902090NSHALL EFFECT ROTARY SENSOR |
4,076 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 90° (±45°) | - | - | - | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
9902120CWHALL EFFECT ROTARY SENSOR |
3,280 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 120° (±60°) | - | - | Clockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
93620451HALL EFFECT ROTARY SENSOR |
3,170 | - |
|
Datasheet | Box with Connector | 9360 | Bag | Active | - | Rotary Position | Hall Effect | 45° (±22.5°) | - | Analog Voltage, PWM | Counterclockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
9902045CWHALL EFFECT ROTARY SENSOR |
1,011 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 45° (±22.5°) | - | - | Clockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
9902090CCWHALL EFFECT ROTARY SENSOR |
2,544 | - |
|
Datasheet | Box with Connector | 9900 | Bag | Obsolete | - | Rotary Position | Hall Effect | 90° (±45°) | - | - | Counterclockwise Increase | Flatted Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about filtering, comparing and sourcing Angle, Linear Position Measuring components.
How can I narrow the Angle, Linear Position Measuring selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Angle, Linear Position Measuring part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
