Angle, Linear Position Measuring
Browse available Angle, Linear Position Measuring part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55300-00-02-ASENSOR ROTARY 360DEG WIRE LEADS |
374 | - |
|
Datasheet | Rectangular, Wire Leads | - | Box | Active | - | Rotary Position | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Included | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 105°C | - | - | - |
|
FS-L-095-103-STSENSOR LINEAR SOLDER TABS |
429 | - |
|
Datasheet | Sensor Strip | FS | Bulk | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 10 kOhms | ±30% | - | Custom | Solder Tab | -35°C ~ 80°C | - | - | - |
|
9615R5.1KL2.0SENSOR LINEAR 38.1MM SOLDER LUG |
128 | - |
|
Datasheet | Box with Solder Lugs | 9600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 38.10mm (0 ~ 1.50") | Resistive | - | Round Shaft | ±0.35% | 5.1 kOhms | ±25% | - | Chassis Mount | Solder Lug | -40°C ~ 135°C | - | - | - |
|

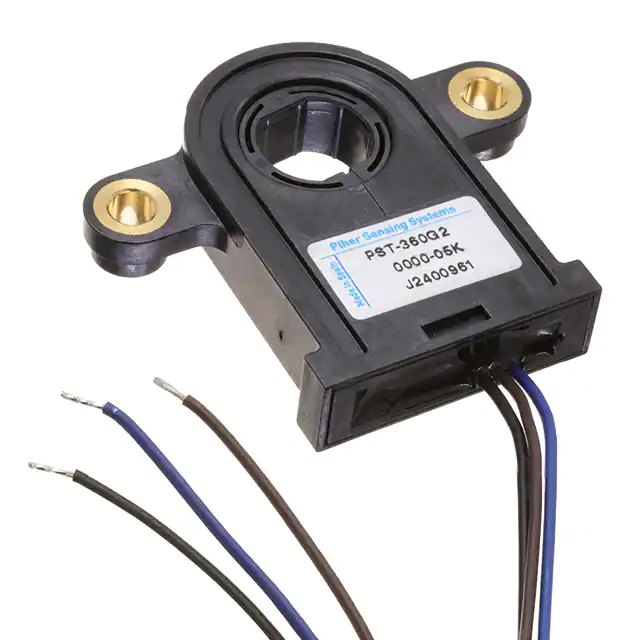

PST360G2-1A-C0000-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
3,604 | - |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
RTY090LVNAXSENSOR ROTARY 90DEG CONNECTOR |
437 | - |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY120LVEAXSENSOR ROTARY 120DEG CONNECTOR |
1,127 | - |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 120° (±60°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

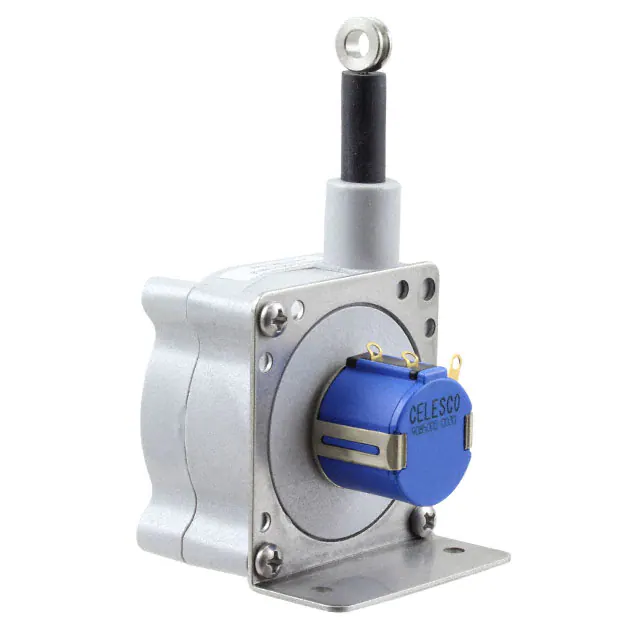

SP1-50SENSOR LINEAR 1270MM SOLDER LUG |
2,539 | - |
|
Datasheet | Box with Connector | SP1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Solder Lug | -18°C ~ 70°C | - | - | - |
|
SP2-25SENSOR LINEAR 635MM WIRE LEADS |
2,862 | - |
|
Datasheet | Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 635mm (0 ~ 25") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
|
SP2-50SENSOR LINEAR 1270MM WIRE LEADS |
2,479 | - |
|
Datasheet | Box with Wire Leads | SP2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage | - | String Potentiometer | - | 10 kOhms | ±10% | 30V | Panel Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
|
SPD-50-3SENSOR LINEAR 1270MM CONNECTOR |
2,097 | - |
|
Datasheet | Box with Connector | SPD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1270mm (0 ~ 50") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 40V | Custom | Connector | -40°C ~ 70°C | - | - | - |
|
SR1A-125STRING POT, 125 INCH RANGE |
1,061 | - |
|
Datasheet | Box with Connector | SR1 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 3175.00mm (0 ~ 125.00") | Resistive | - | String Potentiometer | ±0.5% | 10 kOhms | - | 30VAC/DC | Chassis Mount | Cable | -40°C ~ 85°C | - | - | - |
|
A33230LLHALT-XY-S-AR-033D HALL-EFFECT SENSOR IC WITH SI |
28,291 | - |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | - | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 8 kOhms | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 150°C | - | - | SOT-23W-5 |
|
|
RDC503052ARESISTIVE POSITION SENSORS ROTAR |
3,573 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | - | - | Analog Voltage | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | 5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | 4-SMD |
|
3382G-2-103GSENSOR ROTARY 330DEG SMD |
2,368 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-1-104GSENSOR ROTARY 330DEG SMD |
896 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 100 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
RDC506018ASENSOR ROTARY 333DEG SMD |
8,710 | - |
|
Datasheet | 4-SMD, Gull Wing | RDC50 | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | - | - | Resistive | - | Hole for Shaft | ±2% | 10 kOhms | ±30% | 5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|

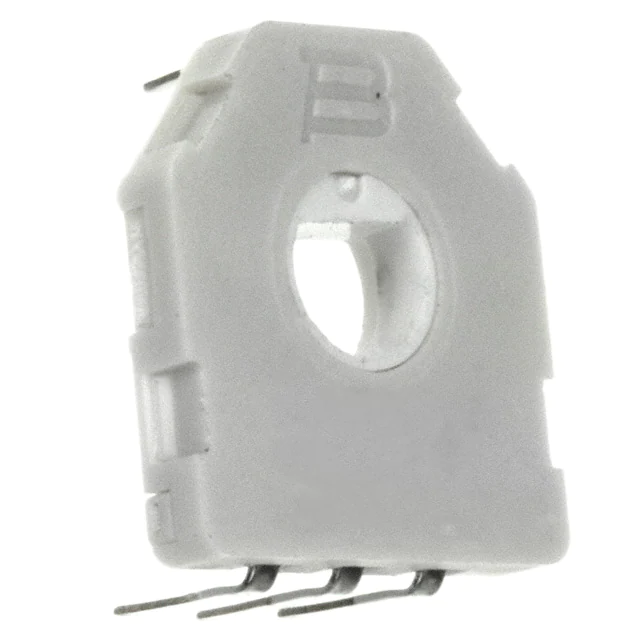

3382H-1-103SENSOR ROTARY 330DEG PC PIN |
6,900 | - |
|
Datasheet | Module, PC Pins | - | Tube | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 10 kOhms | ±30% | - | Through Hole | PC Pin | -40°C ~ 120°C | - | - | - |
|
A1330LLETR-TPROGRAMMABLE ANGLE SENSOR IC WIT |
10,627 | - |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-TSSOP |
|
HAL3736DJ-ASENSOR ANGLE 360DEG SMD |
6,150 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | PWM, SENT | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
|
|
HAL3737DJ-ASENSOR ANGLE 360DEG SMD |
5,206 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Hal® 37 | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | PWM, SENT | - | External Magnet, Not Included | ±0.1% | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 170°C | Automotive | AEC-Q100 | 8-SOIC-1 |
Angle, Linear Position Measuring FAQ
Common questions about selecting, comparing and sourcing Angle, Linear Position Measuring components through Winsun (HK) Electronics.
What should I check when selecting Angle, Linear Position Measuring components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Angle, Linear Position Measuring part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Angle, Linear Position Measuring components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
