Angle, Linear Position Measuring
Browse available Angle, Linear Position Measuring part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAS2143-AAAASENSOR ANGLE 360DEG SMD |
672 | - |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | TAS | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | 5 kOhms | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 8-TSSOP |
|
TLE5012BDE1200XUMA1SPEED SENSORS 16TDSO |
4,309 | - |
|
Datasheet | 16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | SENT, SPI | Cosine, Sine | External Magnet, Not Included | - | - | - | - | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
MLX90316KDC-BCG-200-RESENSOR ROTARY 360DEG SMD |
5,585 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX90316KDC-BCG-300-RESENSOR ROTARY 360DEG SMD |
4,299 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
AS5147U-HTSM TSSOP14 LF T&RDPAS5147U-HTSM TSSOP14 LF T&RDP |
469 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 14-TSSOP |
|
IPS2200BI1RHIGH-SPEED INDUCTIVE POSITION SE |
2,736 | - |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Inductive | 0° ~ 360°, Continuous | - | Analog | Cosine, Sine | Inductive Target | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | 16-TSSOP |
|
|
AS5047U-HTSM TSSOP14 LF T&RDPAS5047U-HTSM TSSOP14 LF T&RDP |
303 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 14-TSSOP |
|
TSP-L-0025-103-1%-RHSENSOR LINEAR 25MM CONNECTOR |
656 | - |
|
Datasheet | Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 25.00mm (0 ~ 0.98") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
|
AS5048A-HTSP TSSOP14 LF T&RDPSENSOR ANGLE 360DEG SMD |
3,371 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SPI | - | External Magnet, Not Included | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|
|
FS-L-055-253-MPSENSOR LINEAR 55MM PC PIN |
184 | - |
|
Datasheet | Sensor Strip | FS | Bag | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 25 kOhms | ±30% | - | Custom | PC Pin | -35°C ~ 80°C | - | - | - |
|
SP-L-0100-103-3%-RHSENSOR LINEAR 100MM CONNECTOR |
319 | - |
|
Datasheet | Sensor Strip | SoftPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 100.00mm (0 ~ 3.94") | Resistive | - | Flexible Membrane - Linear | ±3% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|

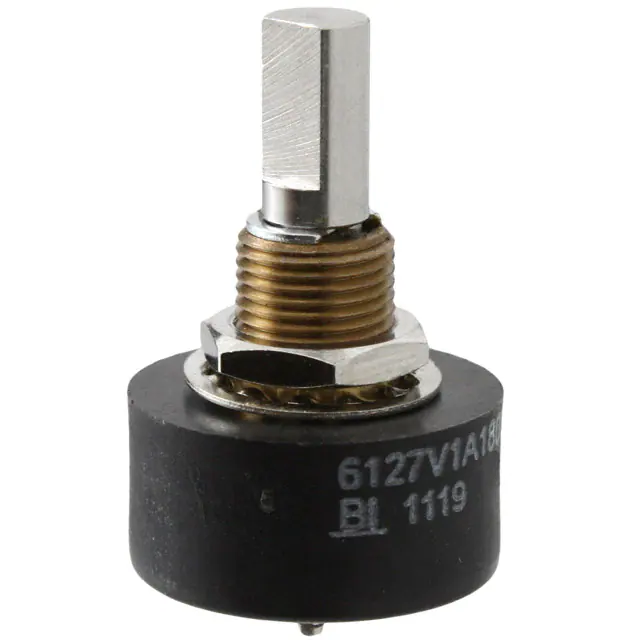

6127V1A180L.5FSSENSOR ROTARY 180DEG SLDR TURRET |
432 | - |
|
Datasheet | Module, Flatted Shaft | - | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Panel Mount | Solder Turret | -40°C ~ 125°C | - | - | - |
|
LIN-11HAW1SENSOR LINEAR 45MM WIRE LEADS |
560 | - |
|
Datasheet | Box with Wire Leads | LIN | Bulk | Active | - | Linear Position | Hall Effect | - | 0 ~ 45.00mm (0 ~ 1.77") | Analog Voltage, PWM | - | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
ANG-11HAW1SENSOR ANGLE 360DEG WIRE LEADS |
126 | - |
|
Datasheet | Box with Wire Leads | ANG | Bulk | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Counterclockwise Increase | External Magnet, Not Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
|
TSP-L-0300-103-1%-RHSENSOR LINEAR 300MM CONNECTOR |
116 | - |
|
Datasheet | Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 300.00mm (0 ~ 11.81") | Resistive | - | Flexible Membrane - Linear | ±1% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
105040402-012-AXIS |
190 | - |
|
Datasheet | Module | - | Bulk | Active | - | Angle | Capacitive | - | - | I2C | - | Flexible Membrane - Linear | - | - | - | 1.8V ~ 3.63V | Custom | Solder Pad | - | - | - | - |
|

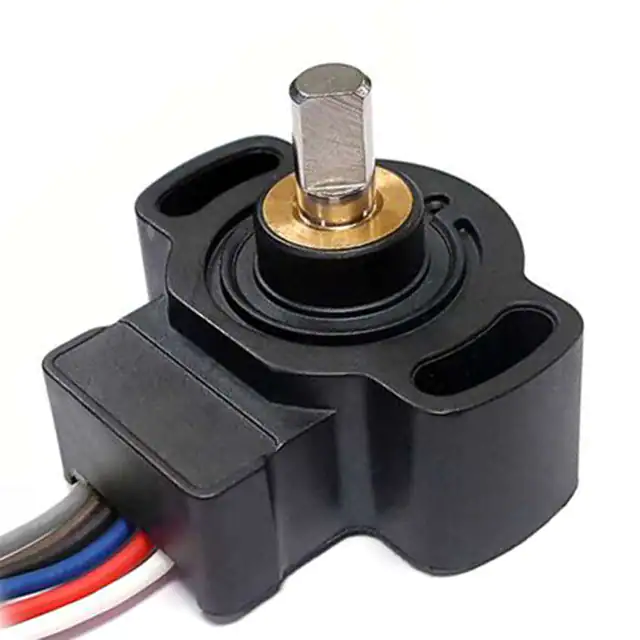

PSC360G2-F1A-C0000-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
4,437 | - |
|
Datasheet | Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PST360G2-B-1A-C0000-ERA360-05KTHROUGH HOLE MAGNETIC POSITION S |
3,873 | - |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PS2P-LIN-LA-M002-1A0-L0000-ELS120-05SENSOR LINEAR 12MM WIRE LEADS |
2,436 | - |
|
Datasheet | Box with Wire Leads | PS2P-LIN | Bulk | Active | - | Linear Position | Hall Effect | - | 0 ~ 12mm (0 ~ 0.47") | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|

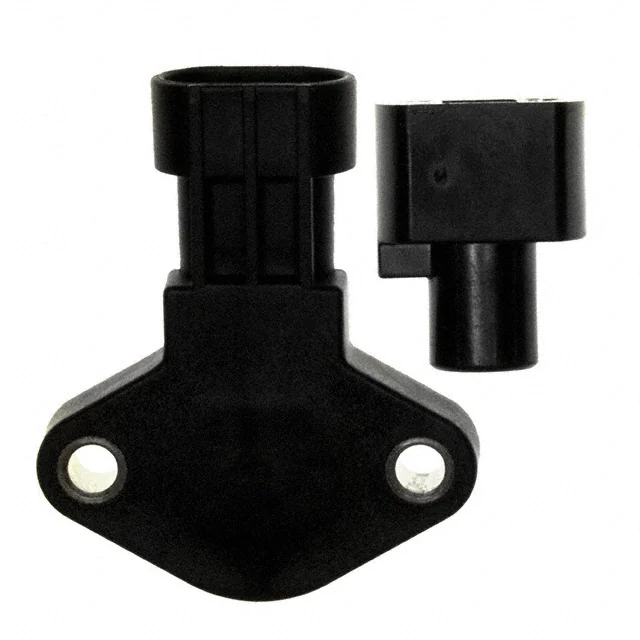

CU103602SENSOR ANGLE 360DEG CONNECTOR |
127 | - |
|
Datasheet | Box with Connector | - | Box | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±3.5% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about selecting, comparing and sourcing Angle, Linear Position Measuring components through Winsun (HK) Electronics.
What should I check when selecting Angle, Linear Position Measuring components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Angle, Linear Position Measuring part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Angle, Linear Position Measuring components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
