Angle, Linear Position Measuring
Browse available Angle, Linear Position Measuring part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA732GQ-P14-BIT, DIGITAL, CONTACTLESS ANG |
227 | - |
|
Datasheet | 16-VFQFN Exposed Pad | MagAlpha | Tape & Reel (TR) | Active | - | Angle | Hall Effect | - | - | SPI | Programmable | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 16-QFN (3x3) |
|
MLX90316LDC-BCG-000-TUSENSOR ROTARY 360DEG SMD |
738 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
|
MLX90372GDC-ACE-300-SPSENSOR ROTARY 360DEG SMD |
937 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SENT | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | - | - | 8-SOIC |
|
ADT002-10ESENSOR ROTARY 360DEG SOLDER PAD |
937 | - |
|
Datasheet | 6-WDFN Exposed Pad | - | Strip | Active | - | Rotary Position | Magnetoresistive | 0° ~ 360°, Continuous | - | Digital | Logic | External Magnet, Included | ±3° | - | - | 2.45V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 6-TDFN (2.5x2.5) |
|
|
ADT001-10ESENSOR ROTARY 360DEG SOLDER PAD |
205 | - |
|
Datasheet | 6-WDFN Exposed Pad | - | Strip | Active | - | Rotary Position | Magnetoresistive | 0° ~ 360°, Continuous | - | Digital | Logic | External Magnet, Included | ±3° | - | - | 2.45V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | - | - | 6-TDFN (2.5x2.5) |
|
|
MLX90365KDC-ABD-000-RESENSOR ROTARY 360DEG SMD |
11,731 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | 8-SOIC |
|
TLE5012BDE9200XUMA1SPEED SENSORS 16TDSO |
7,397 | - |
|
Datasheet | 16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | SENT, SPI | Cosine, Sine | External Magnet, Not Included | - | - | - | - | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
|
MLX90365LDC-ABD-200-SPSENSOR ROTARY 360DEG SMD |
132 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Bulk | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 8-SOIC |
|
A31315LLUBTR-XY-S-SE-10SENSOR ANGLE 360DEG SMD |
2,589 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | A31315 | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360° | - | PWM, SENT | Programmable | External Magnet, Not Included | ±0.3% | 1.2 kOhms | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | - | - | 14-TSSOP |
|
AS5715R-ZTSM TSSOP14 LF T&RDPAS5715R-ZTSM TSSOP14 LF T&RDP |
378 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Rotary Position | Inductive | 0° ~ 360°, Continuous | - | I2C, PWM | - | Inductive Target | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 160°C (TA) | Automotive | AEC-Q100 | 14-TSSOP |
|

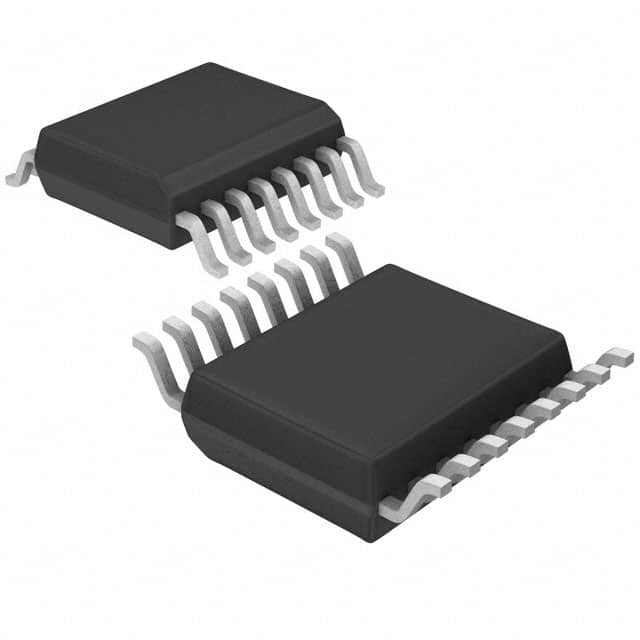

MLX90365KGO-ACD-000-RESENSOR ROTARY 360DEG 16TSSOP |
8,706 | - |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | ±2.5° | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 16-TSSOP |
|
|
MLX90316KDC-BDG-100-TUSENSOR ROTARY 360DEG SMD |
1,088 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tube | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | SPI | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
MLX90366LVS-ADU-250-TUSENSOR ANGLE 360DEG PC PIN |
785 | - |
|
Datasheet | 4-SSIP Module | Triaxis® | Tube | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | SENT | Programmable | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Through Hole | PC Pin | -40°C ~ 150°C | - | - | 4-DMP |
|
|
MLX90333KDC-BCT-000-RESENSOR ANGLE SMD |
8,786 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Hall Effect | - | - | Analog, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
MLX90316LDC-BCG-000-RESENSOR ROTARY 360DEG SMD |
5,773 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
|
MLX90365LGO-ABD-000-RESENSOR ROTARY 360DEG SMD |
4,460 | - |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | 16-TSSOP |
|
G-MRCO-051KMXP1000 MLS 1MM PITCH DFN |
1,961 | - |
|
Datasheet | 12-WQFN Exposed Pad | KMXP | Tape & Reel (TR) | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 0.80mm (0 ~ 0.03") | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 4 kOhms | - | 10V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 12-TDLMP (6x2) |
|
|
G-MRCO-052KMXP5000 MLS 5MM PITCH DFN |
980 | - |
|
Datasheet | 12-WQFN Exposed Pad | KMXP | Tape & Reel (TR) | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 4.00mm (0 ~ 0.16") | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 2 kOhms | - | 10V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 12-TDLMP (6x2) |
|
|
MLX90372GGO-ACE-100-SPSENSOR ROTARY 360DEG SMD |
272 | - |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Tube | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | PWM, SENT | Programmable | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 160°C | - | - | 16-TSSOP |
|
|
FS2-L-055-253-STSENSOR LINEAR 55.37MM SOLDER TAB |
107 | - |
|
Datasheet | Sensor Strip | FS | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 55.37mm (0 ~ 2.18") | Resistive | - | Flexible Membrane - Linear | - | 25 kOhms | ±30% | - | Custom | Solder Tab | -35°C ~ 80°C | - | - | - |
Angle, Linear Position Measuring FAQ
Common questions about selecting, comparing and sourcing Angle, Linear Position Measuring components through Winsun (HK) Electronics.
What should I check when selecting Angle, Linear Position Measuring components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Angle, Linear Position Measuring part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Angle, Linear Position Measuring parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Angle, Linear Position Measuring components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
