Angle, Linear Position Measuring
Browse available Angle, Linear Position Measuring part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G-MRCO-057KMXP5002 5MM PITCH VERTICAL |
110 | - |
|
Datasheet | 12-WQFN Exposed Pad | KMXP | Tape & Reel (TR) | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 4.00mm (0 ~ 0.16") | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | 2 kOhms | - | 10V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 12-TDLMP (6x2) |
|
TSP-L-0100-103-3%-RHSENSOR LINEAR 100MM CONNECTOR |
105 | - |
|
Datasheet | Sensor Strip | ThinPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 100.00mm (0 ~ 3.94") | Resistive | - | Flexible Membrane - Linear | ±3% | 10 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
MLX90316KGO-BCG-000-SPSENSOR ROTARY 360DEG SMD |
914 | - |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | Triaxis® | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±1° | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 16-TSSOP |
|
FS-L-095-103-MPSENSOR LINEAR PC PIN |
134 | - |
|
Datasheet | Sensor Strip | FS | Bag | Active | - | Linear Position | Resistive | - | - | Resistive | - | Flexible Membrane - Linear | - | 10 kOhms | ±30% | - | Custom | PC Pin | -35°C ~ 80°C | - | - | - |
|

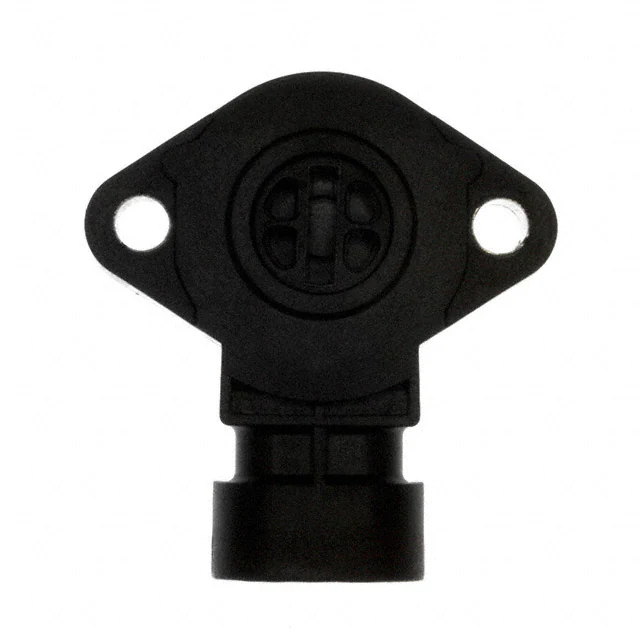

AN101101SENSOR ROTARY 120 DEG CONNECTOR |
208 | - |
|
Datasheet | Box with Connector | AN1 | Bulk | Active | - | Rotary Position | Magnetoresistive | 5° ~ 85°, 0° ~ 120° | - | Analog Voltage | Counterclockwise Increase | Slotted Shaft | ±2% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

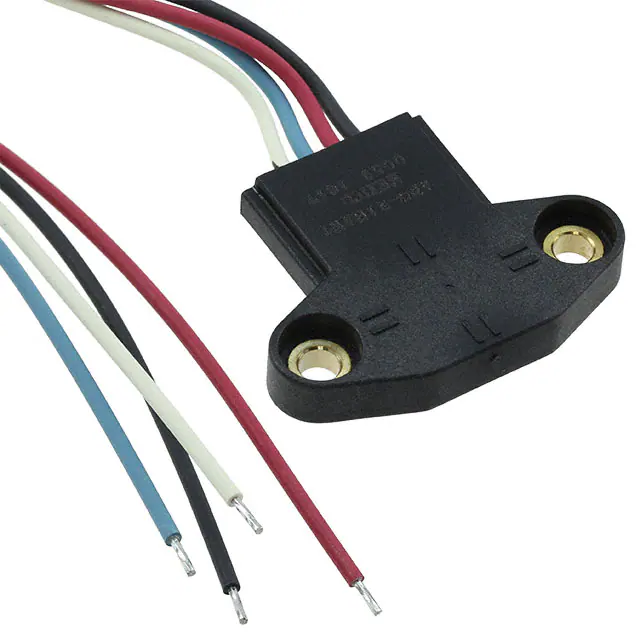

ANG-21HAW1SENSOR ANGLE 360DEG WIRE LEADS |
1,032 | - |
|
Datasheet | Box with Wire Leads | ANG | Bulk | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Counterclockwise Increase | External Magnet, Not Included | ±1% | - | - | 5V | Chassis Mount | Wire Leads | -40°C ~ 140°C | - | - | - |
|
PST360G2-1S-C0000-ERA360-05KSENSOR ANGLE |
1,944 | - |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | SPI | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
PSC360G2-F2AA-C0002-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
4,988 | - |
|
Datasheet | Box with Wire Leads | PSC360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 4.5V ~ 5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
HP-L-0500-203-3%-RHSENSOR LINEAR 500MM CONNECTOR |
100 | - |
|
Datasheet | Sensor Strip | HotPot | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 500.00mm (0 ~ 19.68") | Resistive | - | Flexible Membrane - Linear | ±3% | 20 kOhms | ±20% | - | Custom | Connector | -40°C ~ 85°C | - | - | - |
|
PST360G2-1A-C0011-ERA090-05KSENSOR ANGLE 90DEG WIRE LEADS |
4,609 | - |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
34THES2BTA0P22SENSOR ROTARY 3600DEG SLD TURRET |
4,752 | - |
|
Datasheet | Module | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 3600°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Turret | -40°C ~ 85°C | - | - | - |
|
SL5-2SENSOR LINEAR 1X5MM PSD 8DIP |
1,793 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Case | Active | - | Linear Position | Optical | - | - | - | - | - | - | 100 kOhms | - | - | Through Hole | - | -10°C ~ 60°C | - | - | 8-DIP |
|
RTP090LVNAASENSOR ROTARY 90DEG CONNECTOR |
4,345 | - |
|
Datasheet | Box with Connector | RTP | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
9863R5KL2.0SENSOR ROTARY 120 DEG CONNECTOR |
121 | - |
|
Datasheet | Box with Connector | 9850 Gen II | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 85°, 0° ~ 120° | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTY360HVNAXSENSOR ROTARY 360DEG CONNECTOR |
2,490 | - |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
601R1KL.7SENSOR LINEAR 25.4MM WIRE LEADS |
1,693 | - |
|
Datasheet | Cylinder, Wire Leads | 600 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 25.40mm (0 ~ 1.00") | Resistive | - | Shaft | ±0.70% | 1 kOhms | - | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|
3382G-2-104GSENSOR ROTARY 330DEG SMD |
970 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 100 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
A17301PUCFTN3-WIRE TRUE ZERO-SPEED DIFFERENT |
782 | - |
|
Datasheet | 3-SIP Module | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | - | - | Analog Voltage | Clockwise Increase | External Magnet, Not Included | - | - | - | 4V ~ 26.5V | Through Hole | PC Pin | -40°C ~ 160°C (TA) | - | - | - |
|
|
AAS33001LLEATRLOW POWER LINEAR HALL SENSOR |
23,875 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360° | - | PWM | Clockwise Increase | External Magnet, Not Included | - | - | - | 3.7V ~ 18V | Surface Mount | Gull Wing | - | - | - | 14-TSSOP |
|
TLE5109A16E2210XUMA1IC ANGLE SENSOR 5.0 V |
2,480 | - |
|
Datasheet | 16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 180° | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | ±0.1° | - | - | 5V | Surface Mount | Gull Wing | - | Automotive | AEC-Q100 | PG-TDSO-16-1 |
