Arrays, Signal Transformers

Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
CL-25-50 INDUCT ARRAY 2COIL 300UH CHA MNT Signal Transformer	4,652	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	300 µH	1.2 mH	-	50 A	25 A	-	-	3mOhm	12mOhm	Unshielded	-	-	Chassis Mount	3.870" L x 3.374" W (98.30mm x 85.70mm)	3.374" (85.70mm)

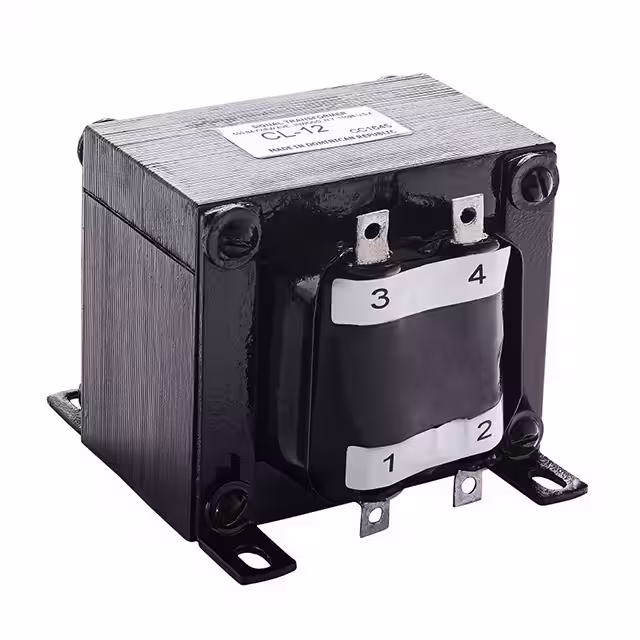

CL-12-24 INDUCT ARRAY 2COIL 1.2MH CHA MNT Signal Transformer	3,698	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	1.2 mH	4.8 mH	-	24 A	12 A	-	-	13mOhm	52mOhm	Unshielded	-	-	Chassis Mount	3.374" L x 3.563" W (85.70mm x 90.50mm)	2.811" (71.40mm)
CL-50-100 INDUCT ARRAY 2COIL 120UH CHA MNT Signal Transformer	3,553	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	120 µH	500 µH	-	100 A	50 A	-	-	1.1mOhm	4.3mOhm	Unshielded	-	-	Chassis Mount	4.500" L x 3.752" W (114.30mm x 95.30mm)	3.752" (95.30mm)
CL-2-4 INDUCT ARRAY 2 COIL 10MH CHA MNT Signal Transformer	3,960	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	10 mH	40 mH	-	4 A	2 A	-	-	180mOhm	700mOhm	Unshielded	-	-	Chassis Mount	3.126" L x 2.122" W (79.40mm x 53.90mm)	2.752" (69.90mm)
CL-6-12 INDUCT ARRAY 2 COIL 3MH CHA MNT Signal Transformer	2,912	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	3 mH	12 mH	-	12 A	6 A	-	-	38mOhm	150mOhm	Unshielded	-	-	Chassis Mount	3.374" L x 3.059" W (85.70mm x 77.70mm)	2.811" (71.40mm)
CL-1-2 INDUCT ARRAY 2 COIL 18MH CHA MNT Signal Transformer	3,071	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	18 mH	72 mH	-	2 A	1 A	-	-	350mOhm	1.4Ohm	Unshielded	-	-	Chassis Mount	2.874" L x 1.752" W (73.00mm x 44.50mm)	2.311" (58.70mm)
CL-4-8 INDUCT ARRAY 2 COIL 5MH CHA MNT Signal Transformer	4,413	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	5 mH	20 mH	-	8 A	4 A	-	-	75mOhm	300mOhm	Unshielded	-	-	Chassis Mount	3.000" L x 2.874" W (76.20mm x 73.00mm)	2.500" (63.50mm)

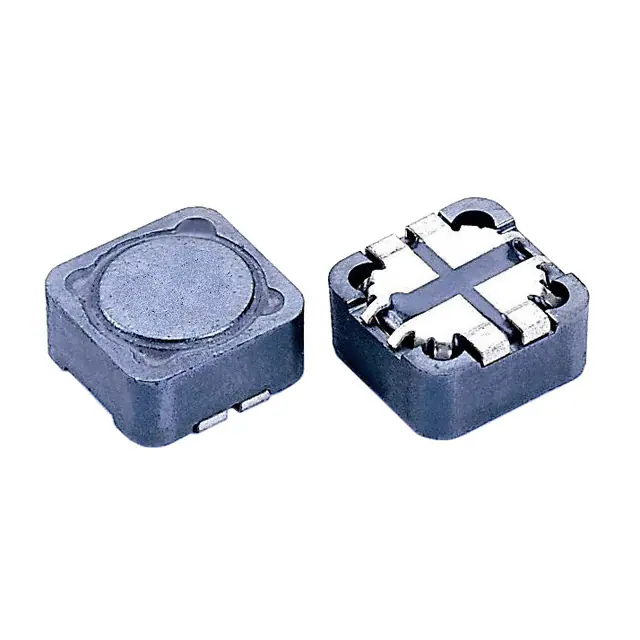

SCRHB125-1016 INDUCT ARRAY 2 COIL 7.1UH SMD Signal Transformer	2,772	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCRHB125-1220 INDUCT ARRAY 2 COIL 9.4UH SMD Signal Transformer	2,087	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCRHB125-6822 INDUCT ARRAY 2 COIL 5.5UH SMD Signal Transformer	1,122	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

WINSUN SOURCING SUPPORT

Need Help Sourcing Arrays, Signal Transformers?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Arrays, Signal Transformers FAQ

Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.

How can I narrow the Arrays, Signal Transformers selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
