Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRHB125-8220INDUCT ARRAY 2 COIL 6.5UH SMD |
2,349 | - |
|
Datasheet | SCRHB125 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

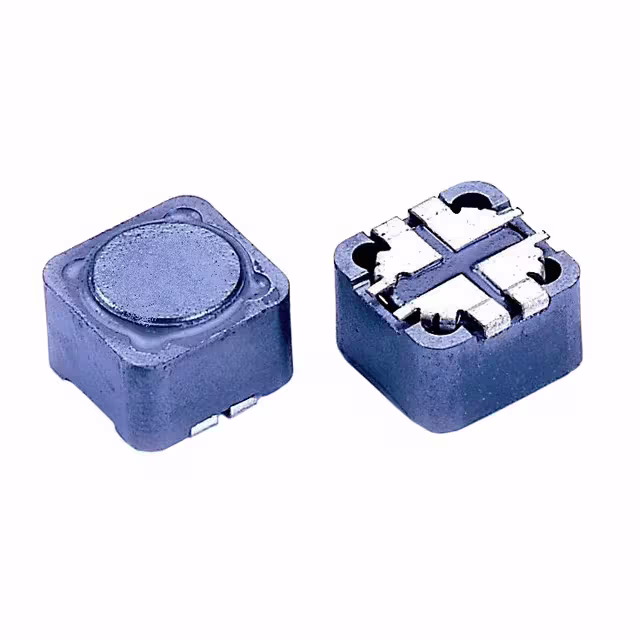

SCRHB127-1022INDUCT ARRAY 2 COIL 8.7UH SMD |
3,379 | - |
|
Datasheet | SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCRHB127-1042INDUCT ARRAY 2 COIL 9.4UH SMD |
4,847 | - |
|
Datasheet | SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

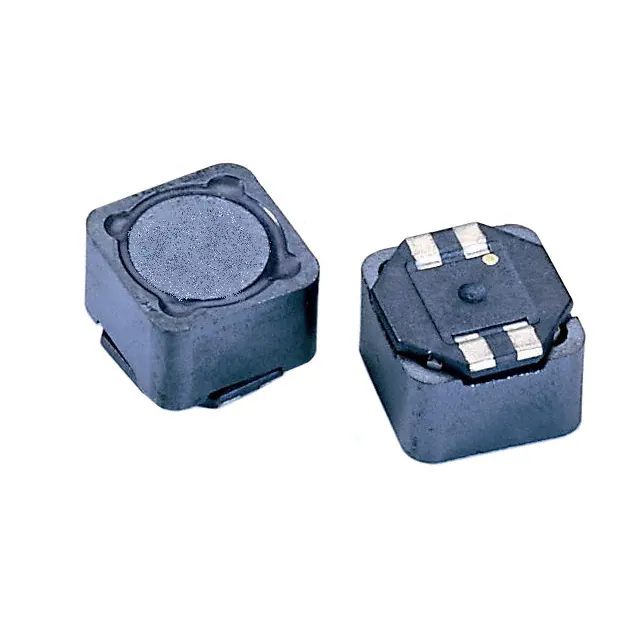

SCRHB127B-1042INDUCT ARRAY 2 COIL 9.4UH SMD |
1,100 | - |
|
Datasheet | SCRHB127 | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SCX114-101INDUCT ARRAY 2 COIL 100UH SMD |
3,844 | - |
|
Datasheet | SCX114 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 100 µH | 396.06 µH | ±20% | 540 mA | 270 mA | - | - | 557mOhm Max | 2.227Ohm Max | Unshielded | - | - | Surface Mount | 0.461" L x 0.461" W (11.70mm x 11.70mm) | 0.217" (5.50mm) |
|
|
SCX114-500INDUCT ARRAY 2 COIL 50UH SMD |
2,928 | - |
|
Datasheet | SCX114 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 50 µH | 202.07 µH | ±20% | 700 mA | 350 mA | - | - | 316mOhm Max | 1.263Ohm Max | Unshielded | - | - | Surface Mount | 0.461" L x 0.461" W (11.70mm x 11.70mm) | 0.217" (5.50mm) |
|
|
SCX114-8R0INDUCT ARRAY 2 COIL 8UH SMD |
2,111 | - |
|
Datasheet | SCX114 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 8 µH | 32.33 µH | ±20% | 1.8 A | 900 mA | - | - | 52mOhm Max | 208mOhm Max | Unshielded | - | - | Surface Mount | 0.461" L x 0.461" W (11.70mm x 11.70mm) | 0.217" (5.50mm) |
|
|
SCX114-R68INDUCT ARRAY 2 COIL 680NH SMD |
4,773 | - |
|
Datasheet | SCX114 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 680 nH | 2.4 µH | ±20% | 5.1 A | 2.55 A | - | - | 11mOhm Max | 45mOhm Max | Unshielded | - | - | Surface Mount | 0.461" L x 0.461" W (11.70mm x 11.70mm) | 0.217" (5.50mm) |
|
SCX147-150INDUCT ARRAY 2 COIL 15UH SMD |
3,474 | - |
|
Datasheet | SCX147 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 15 µH | 56.64 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | - | Surface Mount | 0.567" L x 0.567" W (14.40mm x 14.40mm) | 0.276" (7.00mm) |
|
|
SCX147-200INDUCT ARRAY 2 COIL 20UH SMD |
2,266 | - |
|
Datasheet | SCX147 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 20 µH | 78.4 µH | ±20% | 2.1 A | 1.05 A | - | - | 55mOhm Max | 220mOhm Max | Unshielded | - | - | Surface Mount | 0.567" L x 0.567" W (14.40mm x 14.40mm) | 0.276" (7.00mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
