Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

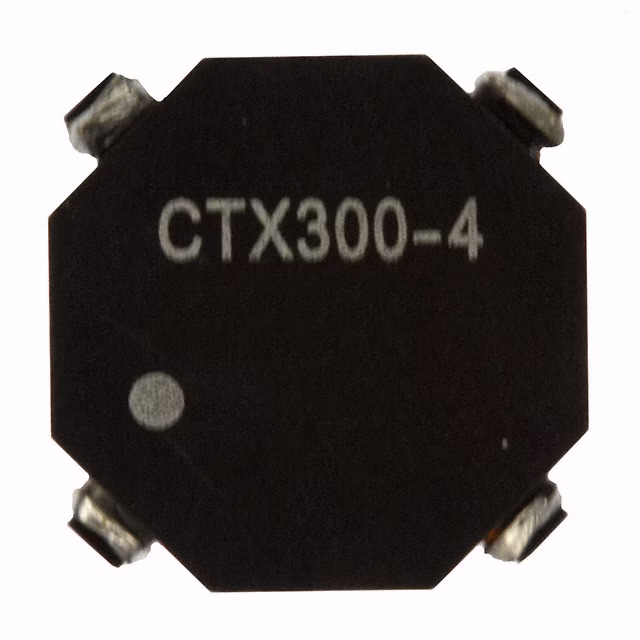

CTX300-4-RINDUCT ARRAY 2 COIL 298.12UH SMD |
1,402 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.12 µH | 1.2 mH | ±20% | 620 mA | 310 mA | - | - | 672mOhm Max | 2.687Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

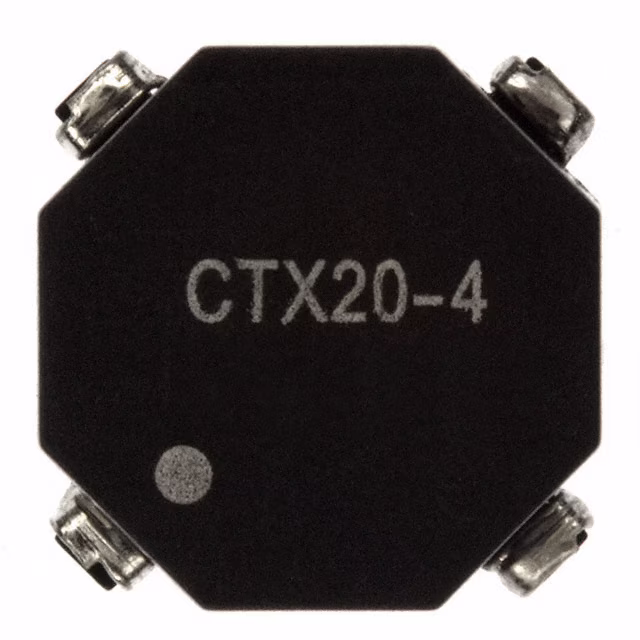

CTX20-4-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,046 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 2.1 A | 1.05 A | - | - | 55mOhm Max | 220mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
DRQ73-680-RINDUCT ARRAY 2 COIL 68.91UH SMD |
1,155 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 68.91 µH | 275.6 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 358mOhm | 1.43Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

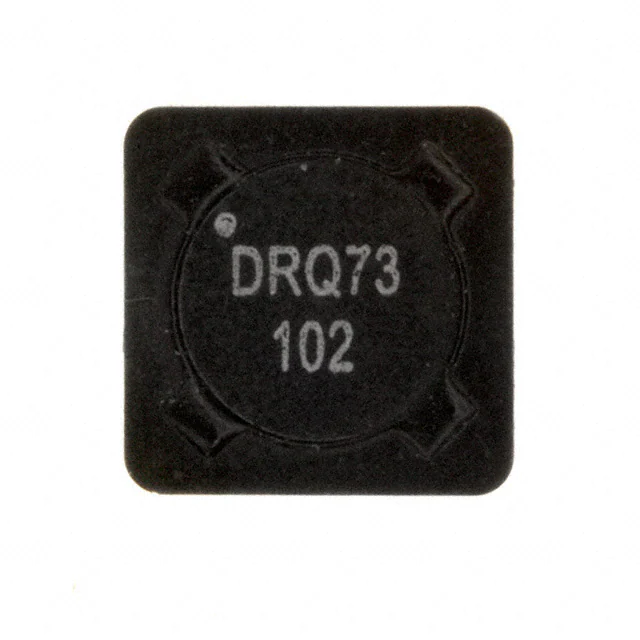

DRQ73-102-RINDUCT ARRAY 2 COIL 995UH SMD |
1,985 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 995 µH | 3.98 mH | ±20% | 260 mA | 128 mA | 250 mA | 130 mA | 4.34Ohm | 17.36Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ74-102-RINDUCT ARRAY 2 COIL 1.009MH SMD |
2,157 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.009 mH | 4.036 mH | ±20% | 270 mA | 135 mA | 310 mA | 160 mA | 3.89Ohm | 15.6Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
DRAQ127-330-RINDUCT ARRAY 2 COIL 32UH SMD |
508 | - |
|
Datasheet | DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 32 µH | 128 µH | ±25% | 3.22 A | 1.61 A | 4.98 A | 2.49 A | 72mOhm Max | 288mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
DRQ125-471-RINDUCT ARRAY 2 COIL 473.1UH SMD |
1,000 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 473.1 µH | 1.892 mH | ±20% | 870 mA | 434 mA | 1.02 A | 510 mA | 718mOhm | 2.87Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ127-102-RINDUCT ARRAY 2 COIL 1.005MH SMD |
909 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.005 mH | 4.02 mH | ±20% | 610 mA | 307 mA | 1.14 A | 571 mA | 1.66Ohm | 6.64Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ125-681-RINDUCT ARRAY 2 COIL 679.8UH SMD |
345 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 679.8 µH | 2.719 mH | ±20% | 700 mA | 350 mA | 850 mA | 425 mA | 1.1Ohm | 4.42Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRQ73-330-RINDUCT ARRAY 2 COIL 34.41UH SMD |
1,744 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.41 µH | 137.6 µH | ±20% | 1.31 A | 653 mA | 1.35 A | 680 mA | 166mOhm | 665mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
