Arrays, Signal Transformers

Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
DRQ127-821-R INDUCT ARRAY 2 COIL 818.1UH SMD Eaton - Electronics Division	341	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	818.1 µH	3.272 mH	±20%	650 mA	325 mA	1.27 A	633 mA	1.47Ohm	5.88Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)

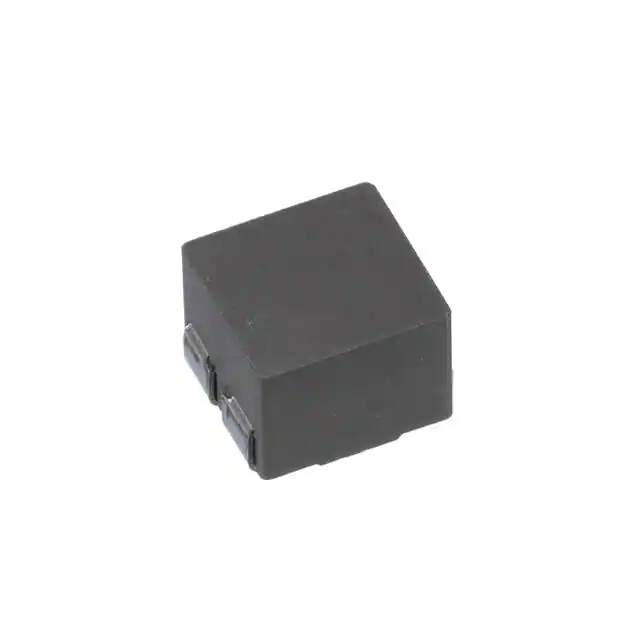

HCSA1V1008-150-R INDUCT ARRAY SMD Eaton - Electronics Division	800	-	RFQ	Datasheet	HCSA1V1008	Nonstandard, 4 Lead	Tape & Reel (TR)	Active	-	-	-	±20%	-	-	-	-	-	-	Shielded	AEC-Q200	-55°C ~ 155°C	Surface Mount	0.433" L x 0.394" W (11.00mm x 10.00mm)	-
HCSA1V1008-100-R INDUCT ARRAY SMD Eaton - Electronics Division	400	-	RFQ	Datasheet	HCSA1V1008	Nonstandard, 4 Lead	Tape & Reel (TR)	Active	-	-	-	±20%	-	-	-	-	-	-	Shielded	AEC-Q200	-55°C ~ 155°C	Surface Mount	0.433" L x 0.394" W (11.00mm x 10.00mm)	-
HCSA1V1008-220-R INDUCT ARRAY SMD Eaton - Electronics Division	230	-	RFQ	Datasheet	HCSA1V1008	Nonstandard, 4 Lead	Tape & Reel (TR)	Active	-	-	-	±20%	-	-	-	-	-	-	Shielded	AEC-Q200	-55°C ~ 155°C	Surface Mount	0.433" L x 0.394" W (11.00mm x 10.00mm)	-
CTX8-1P-R INDUCT ARRAY 2 COIL 8.08UH SMD Eaton - Electronics Division	740	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	8.08 µH	32.33 µH	±20%	1.8 A	900 mA	-	-	52mOhm Max	207mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)
CTX20-1P-R INDUCT ARRAY 2 COIL 20.46UH SMD Eaton - Electronics Division	214	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	20.46 µH	81.83 µH	±20%	1 A	500 mA	-	-	158mOhm Max	634mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)

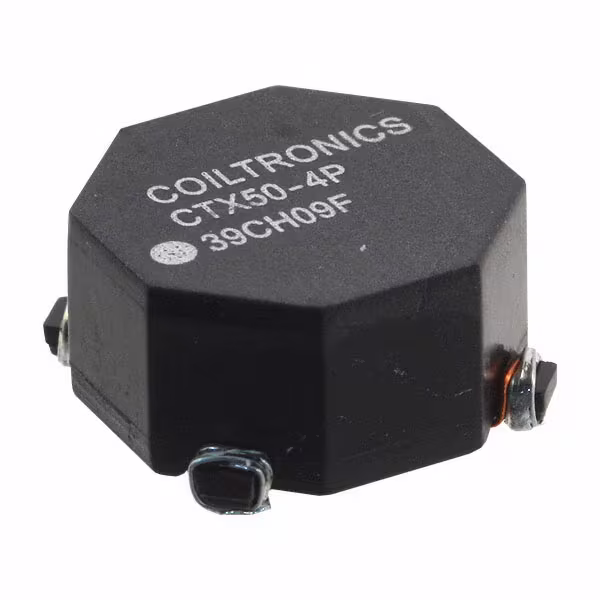

CTX50-4P-R INDUCT ARRAY 2 COIL 48.8UH SMD Eaton - Electronics Division	149	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	48.8 µH	195.2 µH	±20%	1.2 A	600 mA	-	-	201mOhm Max	805mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
SDQ25-470-R INDUCT ARRAY 2 COIL 47.43UH SMD Eaton - Electronics Division	2,180	-	RFQ	Datasheet	SDQ	Nonstandard	Tape & Reel (TR)	Active	2	47.43 µH	189.7 µH	±20%	749 mA	374 mA	584 mA	292 mA	446.1mOhm	1.78Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.205" L x 0.205" W (5.20mm x 5.20mm)	0.098" (2.50mm)
CTX150-2P-R INDUCT ARRAY 2 COIL 148.1UH SMD Eaton - Electronics Division	1,600	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	148.1 µH	592.42 µH	±20%	560 mA	280 mA	-	-	665mOhm Max	2.66Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
CTX300-4A-R INDUCT ARRAY 2 COIL 302.8UH SMD Eaton - Electronics Division	297	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	302.8 µH	1.2 mH	±25%	750 mA	370 mA	760 mA	380 mA	787mOhm Max	3.148Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
