Arrays, Signal Transformers

Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height

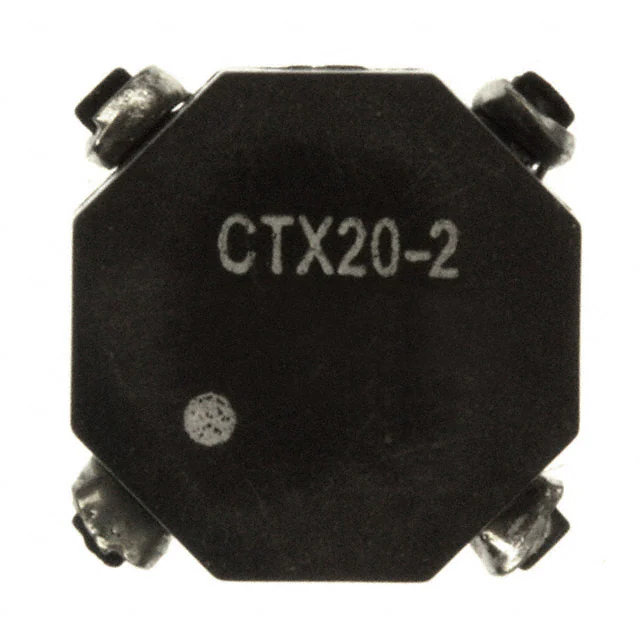

CTX20-2-R INDUCT ARRAY 2 COIL 20.73UH SMD Eaton - Electronics Division	1,188	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	20.73 µH	82.91 µH	±20%	1.3 A	650 mA	-	-	107mOhm Max	426mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
CTX150-4A-R INDUCT ARRAY 2 COIL 153.5UH SMD Eaton - Electronics Division	600	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	153.5 µH	613.9 µH	±25%	1.1 A	550 mA	1.07 A	540 mA	365mOhm Max	1.462Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX200-1P-R INDUCT ARRAY 2 COIL 198.41UH SMD Eaton - Electronics Division	1,100	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	198.41 µH	793.65 µH	±20%	360 mA	180 mA	-	-	1.208Ohm Max	4.831Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)
CTX300-4P-R INDUCT ARRAY 2 COIL 298.93UH SMD Eaton - Electronics Division	600	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	298.93 µH	1.2 mH	±20%	540 mA	270 mA	-	-	1.003Ohm Max	4.011Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)

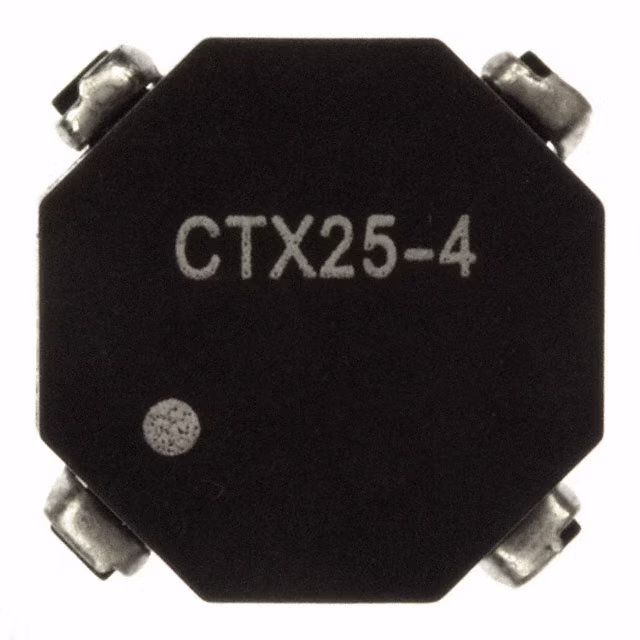

CTX25-4-R INDUCT ARRAY 2 COIL 25.92UH SMD Eaton - Electronics Division	693	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	25.92 µH	103.68 µH	±20%	2 A	1 A	-	-	63mOhm Max	253mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX15-4-R INDUCT ARRAY 2 COIL 14.16UH SMD Eaton - Electronics Division	1,266	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	14.16 µH	56.64 µH	±20%	3 A	1.5 A	-	-	24mOhm Max	96mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)

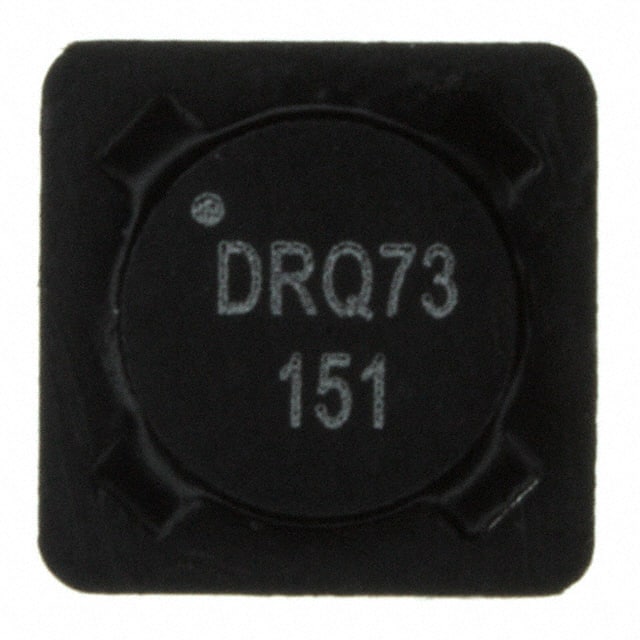

DRQ73-151-R INDUCT ARRAY 2 COIL 150.9UH SMD Eaton - Electronics Division	1,350	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	150.9 µH	603.6 µH	±20%	580 mA	289 mA	650 mA	320 mA	851mOhm	3.41Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.140" (3.55mm)
DRQ74-8R2-R INDUCT ARRAY 2 COIL 8.566UH SMD Eaton - Electronics Division	637	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	8.566 µH	34.26 µH	±20%	2.53 A	1.27 A	3.4 A	1.7 A	44.1mOhm	177mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.175" (4.45mm)
DRQ125-1R5-R INDUCT ARRAY 2 COIL 1.478UH SMD Eaton - Electronics Division	1,050	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	1.478 µH	5.912 µH	±20%	13.8 A	6.89 A	18.3 A	9.15 A	2.9mOhm	11.4mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
ACDL1V1004-5R6-R IND AUDIO CLASS D 5.6UH 6.0A Eaton - Electronics Division	590	-	RFQ	Datasheet	ACDL1V	Nonstandard, 4 Lead	Tape & Reel (TR)	Active	-	-	-	±20%	-	-	-	-	-	-	Shielded	AEC-Q200	-55°C ~ 155°C	Surface Mount	0.472" L x 0.378" W (12.00mm x 9.60mm)	-
