Arrays, Signal Transformers

Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height

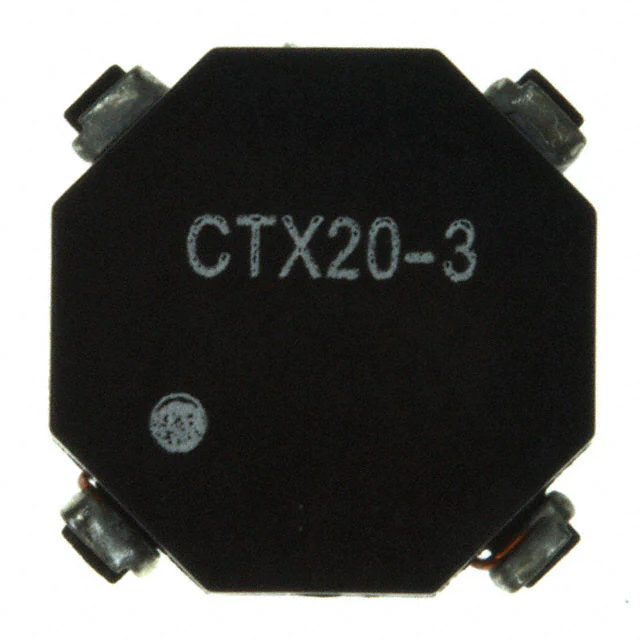

CTX20-3-R INDUCT ARRAY 2 COIL 20.18UH SMD Eaton - Electronics Division	2,881	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	20.18 µH	80.74 µH	±20%	1.5 A	750 mA	-	-	78mOhm Max	312mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX150-3P-R INDUCT ARRAY 2 COIL 149.85UH SMD Eaton - Electronics Division	1,801	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	149.85 µH	599.4 µH	±20%	640 mA	320 mA	-	-	621mOhm Max	2.483Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX150-3-R INDUCT ARRAY 2 COIL 149.78UH SMD Eaton - Electronics Division	3,361	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	149.78 µH	599.14 µH	±20%	380 mA	190 mA	-	-	430mOhm Max	1.718Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX15-3-R INDUCT ARRAY 2 COIL 15UH SMD Eaton - Electronics Division	2,401	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	15 µH	60 µH	±20%	2 A	1 A	-	-	43mOhm Max	172mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX25-3-R INDUCT ARRAY 2 COIL 24.58UH SMD Eaton - Electronics Division	4,925	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	24.58 µH	98.3 µH	±20%	980 mA	490 mA	-	-	86mOhm Max	346mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX300-3-R INDUCT ARRAY 2 COIL 301.06UH SMD Eaton - Electronics Division	4,423	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	301.06 µH	1.2 mH	±20%	400 mA	200 mA	-	-	951mOhm Max	3.083Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX50-3-R INDUCT ARRAY 2 COIL 50.78UH SMD Eaton - Electronics Division	2,337	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	50.78 µH	203.14 µH	±20%	940 mA	470 mA	-	-	239mOhm Max	956mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX68-3-R INDUCT ARRAY 2 COIL 67.42UH SMD Eaton - Electronics Division	1,420	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	67.42 µH	269.66 µH	±20%	800 mA	400 mA	-	-	277mOhm Max	1.109Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)

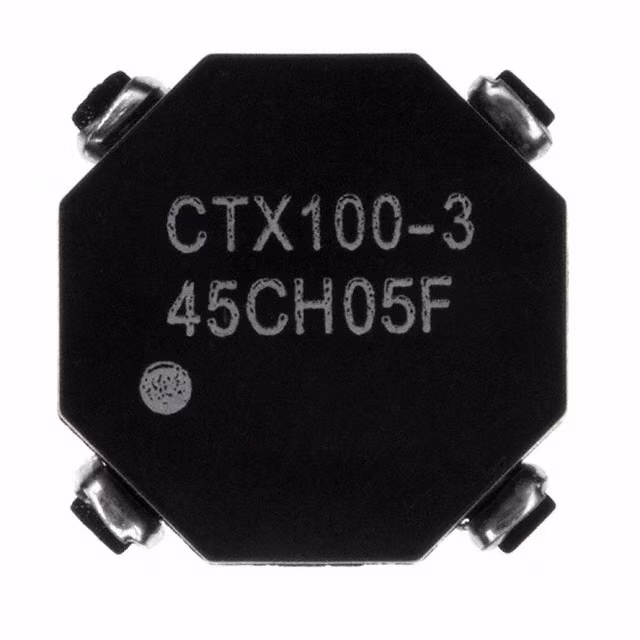

CTX100-3-R INDUCT ARRAY 2 COIL 101.4UH SMD Eaton - Electronics Division	3,086	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	101.4 µH	405.6 µH	±20%	700 mA	350 mA	-	-	345mOhm Max	1.381Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.190" (4.83mm)
CTX25-2P INDUCT ARRAY 2 COIL 24.79UH SMD Eaton - Electronics Division	2,173	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Obsolete	2	24.79 µH	99.14 µH	±20%	1.4 A	700 mA	-	-	109mOhm Max	436mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
