Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX0.47-4-RINDUCT ARRAY 2 COIL 440NH SMD |
4,607 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 440 nH | 1.76 µH | ±20% | 7 A | 3.5 A | - | - | 4mOhm Max | 16mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX0.68-4-RINDUCT ARRAY 2 COIL 780NH SMD |
3,515 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 780 nH | 3.14 µH | ±20% | 6 A | 3 A | - | - | 5mOhm Max | 20mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX1-4-RINDUCT ARRAY 2 COIL 1.23UH SMD |
2,754 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.23 µH | 4.9 µH | ±20% | 5 A | 2.5 A | - | - | 6mOhm Max | 24mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX2-4-RINDUCT ARRAY 2 COIL 1.76UH SMD |
2,226 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.76 µH | 7.06 µH | ±20% | 4.9 A | 2.45 A | - | - | 7mOhm Max | 28mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

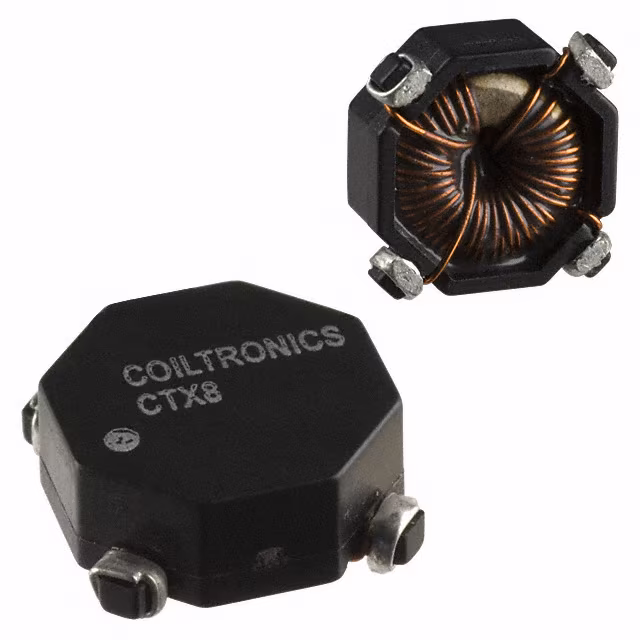

CTX8-4-RINDUCT ARRAY 2 COIL 8.28UH SMD |
1,869 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.28 µH | 33.12 µH | ±20% | 3.5 A | 1.75 A | - | - | 18mOhm Max | 72mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-4P-RINDUCT ARRAY 2 COIL 200.11UH SMD |
1,666 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.11 µH | 800.44 µH | ±20% | 600 mA | 300 mA | - | - | 810mOhm Max | 3.24Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-3P-RINDUCT ARRAY 2 COIL 200.1UH SMD |
2,625 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.1 µH | 800.38 µH | ±20% | 600 mA | 300 mA | - | - | 731mOhm Max | 2.925Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
|
CTX20-1INDUCT ARRAY 2 COIL 19.6UH SMD |
2,951 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

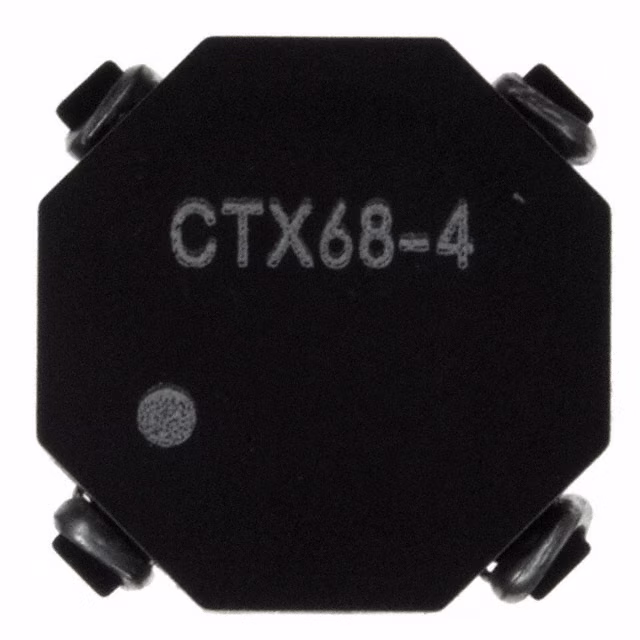

CTX68-4-RINDUCT ARRAY 2 COIL 67.08UH SMD |
1,882 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.08 µH | 268.32 µH | ±20% | 1.2 A | 600 mA | - | - | 157mOhm Max | 630mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX100-1INDUCT ARRAY 2 COIL 99.23UH SMD |
3,559 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
