Arrays, Signal Transformers
Use the filters and product table below to compare Arrays, Signal Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX20-2A-RINDUCT ARRAY 2 COIL 20.22UH SMD |
2,436 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 20.22 µH | 80.9 µH | ±25% | 2.24 A | 1.12 A | 2.34 A | 1.17 A | 78mOhm Max | 313mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX300-2A-RINDUCT ARRAY 2 COIL 303.7UH SMD |
1,246 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 303.7 µH | 1.215 mH | ±25% | 580 mA | 290 mA | 600 mA | 300 mA | 1.174Ohm Max | 4.697Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX33-2A-RINDUCT ARRAY 2 COIL 34.84UH SMD |
1,922 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 34.84 µH | 139.4 µH | ±25% | 1.56 A | 780 mA | 1.79 A | 890 mA | 162mOhm Max | 649mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX5-2A-RINDUCT ARRAY 2 COIL 5.06UH SMD |
4,874 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 5.06 µH | 20.22 µH | ±25% | 4.34 A | 2.17 A | 4.69 A | 2.34 A | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX8-2A-RINDUCT ARRAY 2 COIL 7.9UH SMD |
1,602 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 7.9 µH | 31.6 µH | ±25% | 3.5 A | 1.75 A | 3.75 A | 1.88 A | 32mOhm Max | 129mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX10-3A-RINDUCT ARRAY 2 COIL 9.68UH SMD |
4,390 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.68 µH | 38.7 µH | ±25% | 3.64 A | 1.82 A | 3 A | 1.5 A | 32mOhm Max | 126mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX33-3A-RINDUCT ARRAY 2 COIL 33.71UH SMD |
4,145 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 33.71 µH | 134.8 µH | ±25% | 1.93 A | 960 mA | 1.61 A | 800 mA | 112mOhm Max | 449mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX50-3A-RINDUCT ARRAY 2 COIL 49.71UH SMD |
2,556 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 49.71 µH | 198.8 µH | ±25% | 1.56 A | 780 mA | 1.32 A | 660 mA | 171mOhm Max | 686mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX02-13665INDUCT ARRAY 2 COIL SMD |
3,347 | - |
|
Datasheet | OCTA-PAC® | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | - | 1.254 mH | ±20% | - | - | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.634" L x 0.661" W (16.10mm x 16.80mm) | 0.291" (7.40mm) |
|

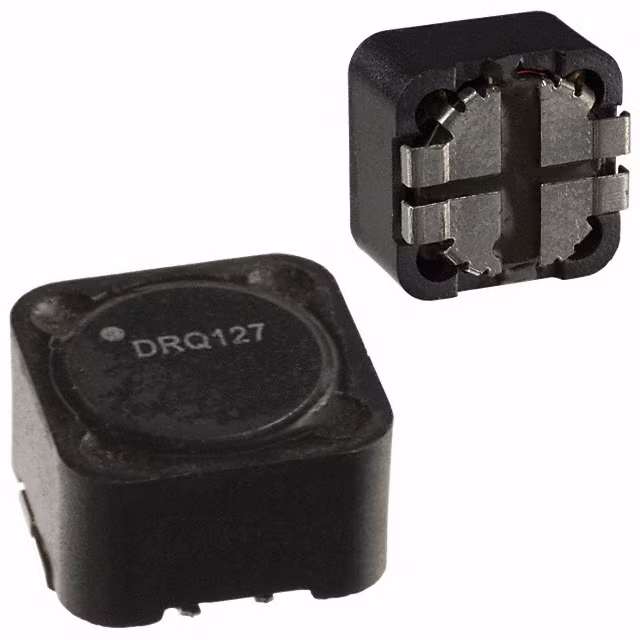

DRQ127-2R2-GINDUCT ARRAY 2 COIL 2.027UH SMD |
1,903 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.027 µH | 8.108 µH | ±20% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 3.73mOhm | 16.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Arrays, Signal Transformers FAQ
Common questions about filtering, comparing and sourcing Arrays, Signal Transformers components.
How can I narrow the Arrays, Signal Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Arrays, Signal Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
