Audio Transformers
Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM6210HLTXFMR PLC1:1:1 5UH FUNC INS |
650 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6210HLXFMR PLC1:1:1 5UH FUNC INS |
347 | - |
|
Datasheet | - | Tube | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6230HLXFMR PLC1:1:1 28UH REIN IN |
198 | - |
|
Datasheet | - | Tube | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
BM6220NLTXFMR PLC1:1 12UH FUNC INS |
486 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
BM6220NLXFMR PLC1:1 12UH FUNC INS |
248 | - |
|
Datasheet | - | Tube | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
BM6230HLTXFMR PLC1:1:1 28UH REIN IN |
360 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
T6074NLAUDIO XFMR TH |
2,077 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | PC Pin |
|

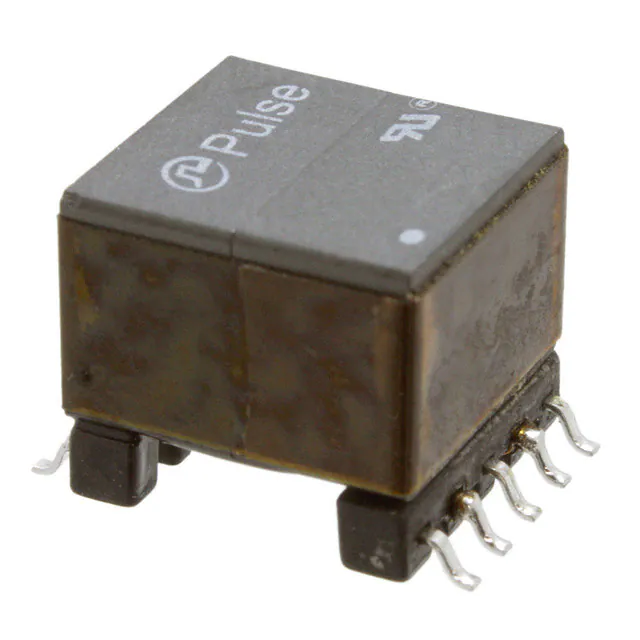

T6003NLAUDIO XFMR 600 / 600 SMD |
2,743 | - |
|
Datasheet | - | Tray | Active | 1:1 | 600 | 600 | 55Ohm | 70Ohm | General Purpose | - | - | 1500Vrms | 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz | 20dB @ 200Hz, 30dB @ 1kHz, 25dB @ 10kHz | - | - | - | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | Gull Wing |
|
|
H4006FNLTAUDIO XFMR SMD |
4,904 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4004FNLTAUDIO XFMR SMD |
1,917 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Audio Transformers FAQ
Common questions about filtering, comparing and sourcing Audio Transformers components.
How can I narrow the Audio Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Audio Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
