Audio Transformers

Browse available Audio Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
TTC-5023 AUDIO XFMR 600 / 600 SMD Tamura	0	1+：$4.62000 10+：$4.17100 25+：$4.00400 50+：$3.88100 100+：$3.76110	RFQ	Datasheet	TTC	Tape & Reel (TR)	Active	1:1	600	600	115Ohm	115Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.25dB	3000VRMS @ 1 Minute	2dB Max @ 2kHz	14dB Min @ 200Hz ~ 4kHz	-	-20°C ~ 85°C	UL60950, EN60950	Surface Mount	0.378" L x 0.492" W (9.60mm x 12.50mm)	0.299" (7.60mm)	Flat Lead

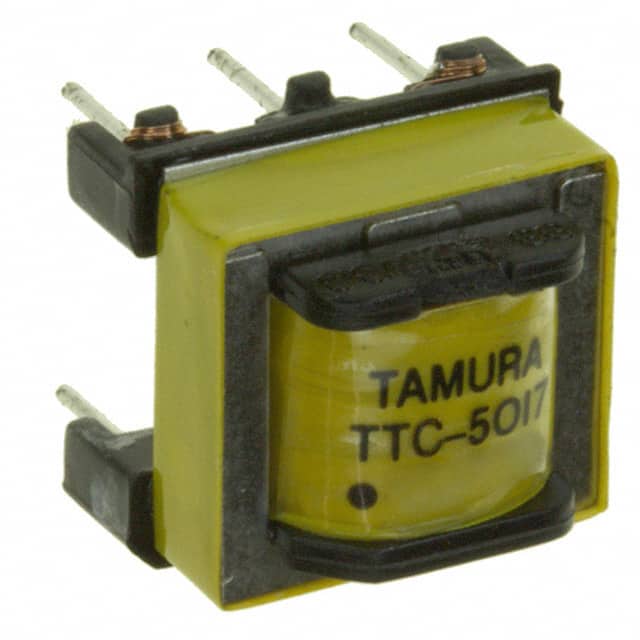

TTC-5017 AUDIO XFMR 600 / 600 TH Tamura	0	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	600	59Ohm	59Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.5dB	1875VRMS @ 1 Second	1.5dB Max @ 1kHz	14dB Min @ 200Hz ~ 4kHz	-	-	UL60950	Through Hole	0.591" L x 0.571" W (15.00mm x 14.50mm)	0.472" (12.00mm)	PC Pin
TY-307P AUDIO XFMR 600 / 600 TH Triad Magnetics	2,590	1+：$6.13000 10+：$5.53500 25+：$5.31160 50+：$5.14760 100+：$4.98780 250+：$4.78304 500+：$4.63294 1000+：$4.48699	RFQ	Datasheet	TY	Bulk	Active	1:1.07	600	600	43Ohm	61Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.670" L x 0.781" W (17.02mm x 19.84mm)	0.470" (11.94mm)	PC Pin

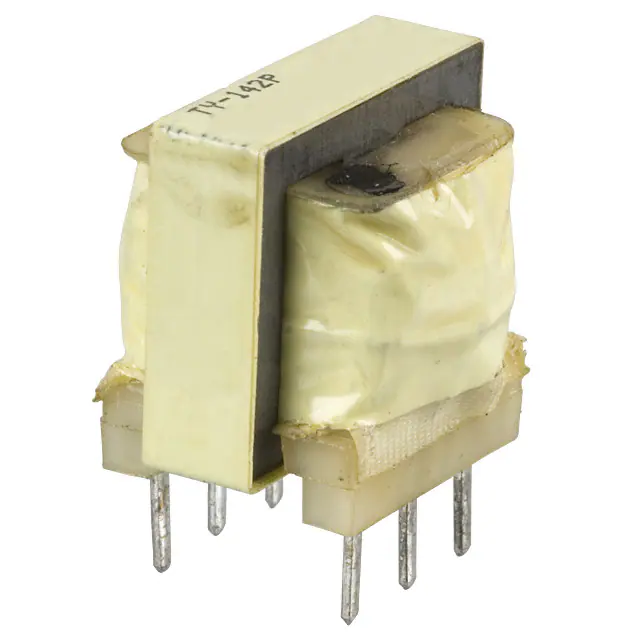

TY-142P AUDIO XFMR 10KCT / 2KCT TH Triad Magnetics	559	1+：$6.14000 10+：$5.55000 25+：$5.32600 50+：$5.16160 100+：$5.00150 250+：$4.79636 500+：$4.64594 1000+：$4.49969	RFQ	Datasheet	TY	Bulk	Active	2.24:1	10kCT	2kCT	750Ohm	217Ohm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin
TY-145P AUDIO XFMR 600CT / 600CT TH Triad Magnetics	10,333	1+：$6.14000 10+：$5.55000 25+：$5.32600 50+：$5.16160 100+：$5.00150 250+：$4.79636 500+：$4.64594 1000+：$4.49969	RFQ	Datasheet	TY	Bulk	Active	1:1	600CT	600CT	44Ohm	58Ohm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin
TY-141P AUDIO XFMR 10KCT / 10KCT TH Triad Magnetics	6,371	1+：$5.80000 10+：$5.23600 25+：$5.02440 50+：$4.86940 100+：$4.71840 250+：$4.52488 500+：$4.38298 1000+：$4.24499	RFQ	Datasheet	TY	Bulk	Active	1:1	10kCT	10kCT	820Ohm	1.07kOhm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin

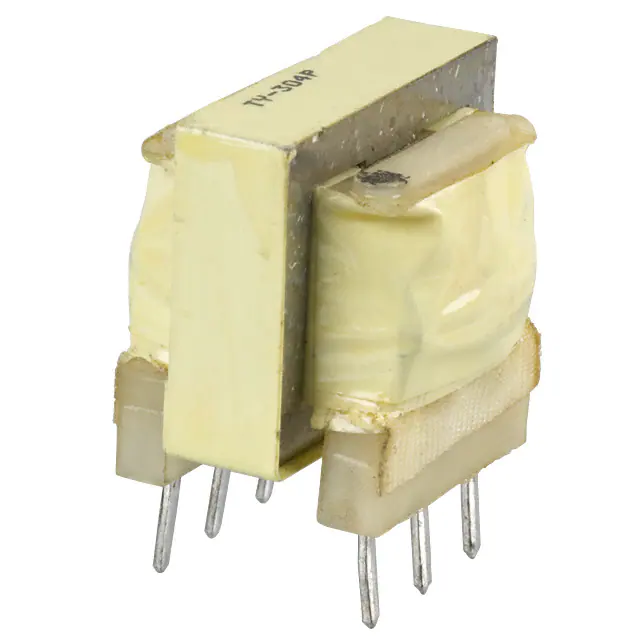

TY-304P AUDIO XFMR 600CT / 600CT TH Triad Magnetics	2,175	1+：$8.19000 10+：$7.39000 25+：$7.09080 50+：$6.87100 100+：$6.65680 250+：$6.38248 500+：$6.18156 1000+：$5.98625	RFQ	Datasheet	TY	Bulk	Active	1:1.05	600CT	600CT	42Ohm	60Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.790" L x 0.812" W (20.07mm x 20.62mm)	0.740" (18.80mm)	PC Pin
MET-46-T AUDIO XFMR 600 / 600 TH Triad Magnetics	20,718	1+：$11.34000 10+：$10.23100 25+：$9.81360 84+：$9.28381 168+：$8.99214 252+：$8.82520 504+：$8.54623 1008+：$8.27512	RFQ	Datasheet	MET	Bulk	Active	1:1	600	600	85Ohm	110Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-09-T-B AUDIO XFMR 10KCT / 10KCT TH Triad Magnetics	622	1+：$11.32000 10+：$10.21200 25+：$9.79520 84+：$9.26595 168+：$8.97458 252+：$8.80790 504+：$8.52927 1008+：$8.25850	RFQ	Datasheet	MET	Bulk	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 1 Second	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-32 AUDIO XFMR 600 / 600 150/150 TH Tamura	3,249	1+：$13.14000 10+：$11.84500 25+：$11.36080 50+：$11.00560 100+：$10.66010 250+：$10.21804 500+：$9.89440 1000+：$9.58007	RFQ	Datasheet	MET	Tube	Active	2:1:1	600	600, 150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-60-T AUDIO XFMR 135 / 135CT TH Triad Magnetics	500	1+：$11.56000 10+：$10.42100 25+：$9.99560 84+：$9.45548 168+：$9.15810 252+：$8.98794 504+：$8.70355 1008+：$8.42724	RFQ	Datasheet	MET	Bulk	Active	1:1	135	135CT	10.5Ohm	10.8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-32-T AUDIO XFMR 600 / 150/150 TH Triad Magnetics	290	1+：$11.77000 10+：$10.61300 25+：$10.17920 84+：$9.62893 168+：$9.32595 252+：$9.15266 504+：$8.86294 1008+：$8.58155	RFQ	Datasheet	MET	Bulk	Active	2:1:1	600	150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-31-T AUDIO XFMR 600CT / 600CT TH Triad Magnetics	3,749	1+：$12.39000 10+：$11.17100 25+：$10.71480 84+：$10.13548 168+：$9.81667 252+：$9.63421 504+：$9.32935 1008+：$9.03313	RFQ	Datasheet	MET	Bulk	Active	1:1	600CT	600CT	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-22-T AUDIO XFMR 2.5KCT / 2.5KCT TH Triad Magnetics	399	1+：$10.72000 10+：$9.66900 25+：$9.27480 84+：$8.77429 168+：$8.49857 252+：$8.34079 504+：$8.07710 1008+：$7.82089	RFQ	Datasheet	MET	Bulk	Active	1:1	2.5kCT	2.5kCT	280Ohm	350Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-46 AUDIO XFMR 600 / 600 TH Tamura	6,491	1+：$12.88000 10+：$11.61700 25+：$11.14240 50+：$10.79420 100+：$10.45560 250+：$10.02204 500+：$9.70472 1000+：$9.39649	RFQ	Datasheet	MET	Tube	Active	1:1	600	600	85Ohm	110Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB	1500VRMS @ 1 Minute	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-35 AUDIO XFMR 600CT / 8 TH Tamura	7,863	1+：$13.12000 10+：$11.83100 25+：$11.34680 50+：$10.99220 100+：$10.64720 250+：$10.20560 500+：$9.88240 1000+：$9.56848	RFQ	Datasheet	MET	Tube	Active	8.66:1	600CT	8	60Ohm	1.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-09 AUDIO XFMR 10KCT / 10KCT TH Tamura	4,310	1+：$13.13000 10+：$11.83500 25+：$11.35120 50+：$10.99620 100+：$10.65100 250+：$10.20928 500+：$9.88604 1000+：$9.57193	RFQ	Datasheet	MET	Tube	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-39 AUDIO XFMR 500 / 50 TH Tamura	3,462	1+：$12.16000 10+：$10.96000 25+：$10.51160 50+：$10.18340 100+：$9.86370 250+：$9.45472 500+：$9.15542 1000+：$8.86460	RFQ	Datasheet	MET	Tube	Active	3.16:1	500	50	55Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-31 AUDIO XFMR 600CT / 600CT TH Tamura	4,994	1+：$13.09000 10+：$11.80700 25+：$11.32400 50+：$10.97000 100+：$10.62560 250+：$10.18500 500+：$9.86242 1000+：$9.54915	RFQ	Datasheet	MET	Tube	Active	1:1	600CT	600CT	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-23 AUDIO XFMR 1.6KCT / 3.2 TH Tamura	591	1+：$13.47000 10+：$12.14800 25+：$11.65160 50+：$11.28720 100+：$10.93280 250+：$10.47924 500+：$10.14726 1000+：$9.82482	RFQ	Datasheet	MET	Tube	Active	22.4:1	1.6kCT	3.2	230Ohm	1Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±3dB	500VRMS @ 30 Seconds	-	-	65mW Max @ 300Hz	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

WINSUN SOURCING SUPPORT

Need Audio Transformers Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Audio Transformers FAQ

Common questions about selecting, comparing and sourcing Audio Transformers components through Winsun (HK) Electronics.

What should I check when selecting Audio Transformers components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Audio Transformers part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Audio Transformers parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Audio Transformers components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
