Audio Transformers
Browse available Audio Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MET-59-TAUDIO XFMR 600 / 150/150 TH |
271 | - |
|
Datasheet | MET | Bulk | Active | 2:1:1 | 600 | 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-17AUDIO XFMR 10KCT / 500CT TH |
716 |
1+：$13.84000 10+：$12.47700 25+：$11.96640 50+：$11.59200 100+：$11.22780 250+：$10.76184 500+：$10.42084 1000+：$10.08959 |
|
Datasheet | MET | Tube | Active | 4.47:1 | 10kCT | 500CT | 1kOhm | 80Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-4AUDIO XFMR 200KCT / 1KCT TH |
103 | - |
|
Datasheet | Red-Spec | Bulk | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 100Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 10mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-29AUDIO XFMR 10KCT / 500CT TH |
110 |
1+：$17.90000 10+：$16.12400 25+：$15.46120 50+：$14.97520 100+：$14.50280 250+：$13.89860 500+：$13.45668 |
|
Datasheet | Red-Spec | Bulk | Active | 4.47:1 | 10kCT | 500CT | 1.05kOhm | 80Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
149TAUDIO XFMR 600CT / 600CT TH |
278 | - |
|
Datasheet | 149 | Bulk | Active | - | 600CT | 600CT | 53Ohm | 70Ohm | Economical Open Type | 200Hz ~ 15kHz | ±1dB | - | 0.5dB | - | 1000mW | - | - | Through Hole | 1.060" L x 0.820" W (26.92mm x 20.83mm) | 0.820" (20.83mm) | PC Pin |
|
MET-50AUDIO XFMR 10K / 125 TH |
1,113 |
1+：$29.88000 10+：$26.89100 25+：$25.77720 50+：$24.96180 100+：$24.16950 400+：$22.65325 |
|
Datasheet | MET | Tray | Active | 8.62:1 | 10k | 125 | 1.1kOhm | 28Ohm | Data/Voice Coupling | 300Hz ~ 20kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
125AXFMR 1.2K-25K / 1.5-15 CHAS MNT |
412 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 3W | - | - | Chassis Mount | 2.060" L x 1.250" W (52.32mm x 31.75mm) | 1.190" (30.23mm) | Wire Leads |
|
#458PT-1566=P3AUDIO XFMR SMD |
137 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.272" L x 0.150" W (6.90mm x 3.80mm) | 0.173" (4.40mm) | Gull Wing |
|

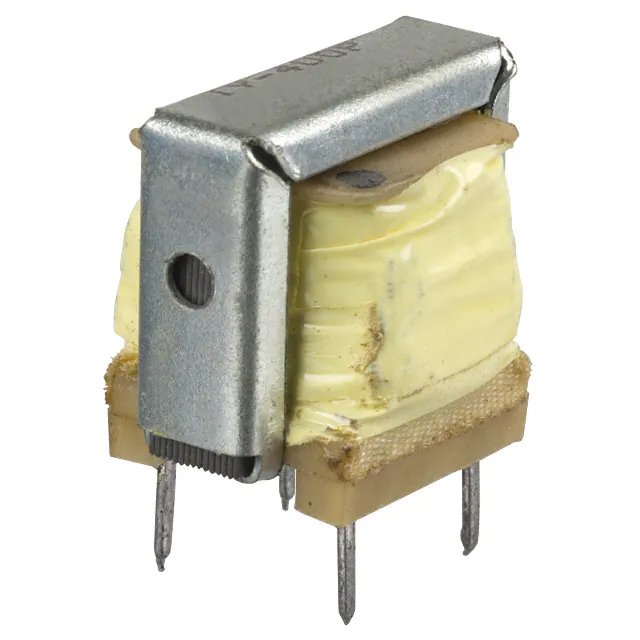

TY-400PAUDIO XFMR 600 / 600 TH |
6,393 | - |
|
Datasheet | TY | Bulk | Active | 1:1.07 | 600 | 600 | 76.5Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.820" L x 0.715" W (20.83mm x 18.16mm) | 0.750" (19.05mm) | PC Pin |
|

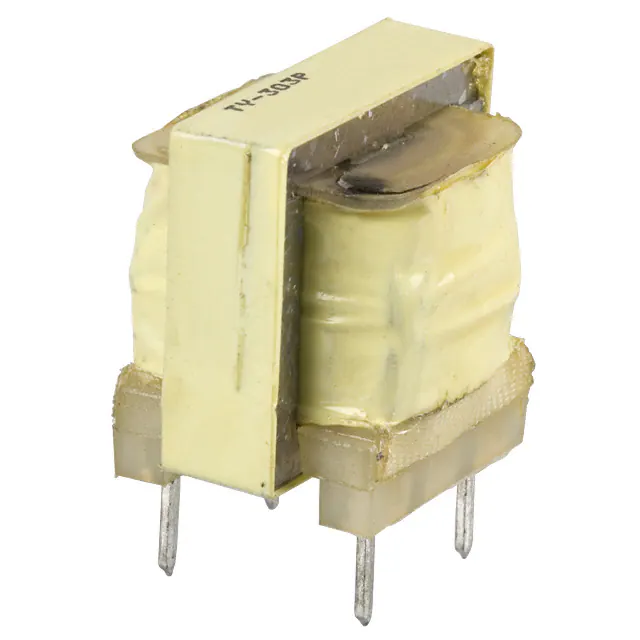

TY-303PAUDIO XFMR 4K / 600 TH |
430 | - |
|
Datasheet | TY | Bulk | Active | 2.43:1 | 4k | 600 | 260Ohm | 52Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.715" W (20.62mm x 18.16mm) | 0.740" (18.80mm) | PC Pin |
|
TY-300PAUDIO XFMR 600 / 600/600 TH |
37 |
1+：$7.62000 10+：$6.88100 25+：$6.60200 50+：$6.39740 100+：$6.19810 250+：$5.94276 500+：$5.75574 1000+：$5.57388 |
|
Datasheet | TY | Bulk | Active | 1:2.48 | 600 | 600/600 | 172Ohm | 66Ohm, 66Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | - | 1500VAC | 0.8dB Typ | 30dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
|
MET-28-TAUDIO XFMR 1K / 50 TH |
107 | - |
|
Datasheet | MET | Bulk | Active | 4.47:1 | 1k | 50 | 110Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-59AUDIO XFMR 600 / 600 150/150 TH |
0 |
1+：$13.06000 10+：$11.77100 25+：$11.28880 50+：$10.93580 100+：$10.59230 250+：$10.15268 500+：$9.83096 1000+：$9.51850 |
|
Datasheet | MET | Tube | Active | 2:1:1 | 600 | 600, 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-28AUDIO XFMR 1K / 50 TH |
334 | - |
|
Datasheet | MET | Tube | Active | 4.47:1 | 1k | 50 | 110Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-01-TAUDIO XFMR 200KCT / 1KCT TH |
41 |
1+：$13.07000 10+：$11.78200 25+：$11.30080 84+：$10.68940 168+：$10.35292 252+：$10.16040 504+：$9.83865 1008+：$9.52609 |
|
Datasheet | MET | Bulk | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 120Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Second | - | - | 10mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-01AUDIO XFMR 200KCT / 1KCT TH |
1,343 | - |
|
Datasheet | MET | Tube | Active | 14.1:1 | 200kCT | 1kCT | 5.3kOhm | 120Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 10mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-52AUDIO XFMR 1.5KCT / 600 TH |
514 |
1+：$19.79000 10+：$17.82900 25+：$17.09520 50+：$16.55760 100+：$16.03510 250+：$15.36668 500+：$14.87794 |
|
Datasheet | Red-Spec | Bulk | Active | 1.58:1 | 1.5kCT | 600 | 168Ohm | 92Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-49AUDIO XFMR 300CT / 600 TH |
227 |
1+：$20.84000 10+：$18.77200 25+：$17.99880 50+：$17.43260 100+：$16.88190 250+：$16.17788 500+：$15.66300 |
|
Datasheet | Red-Spec | Bulk | Active | 1:1.42 | 300CT | 600 | 41Ohm | 98Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-68XFMR 10K / 10K 2.5K/2.5K TH |
182 |
1+：$18.97000 10+：$17.09200 25+：$16.38880 50+：$15.87380 100+：$15.37300 250+：$14.73248 500+：$14.26408 |
|
Datasheet | Red-Spec | Bulk | Active | 2.1:1 | 10k | 10k, 2.5k/2.5k | 1kOhm | 565/650Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-50-TAUDIO XFMR 10K / 125 TH |
121 | - |
|
Datasheet | MET | Bulk | Active | 8.62:1 | 10k | 125 | 1.1kOhm | 28Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 10mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
Audio Transformers FAQ
Common questions about selecting, comparing and sourcing Audio Transformers components through Winsun (HK) Electronics.
What should I check when selecting Audio Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Audio Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Audio Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Audio Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
