Audio Transformers

Use the filters and product table below to compare Audio Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style

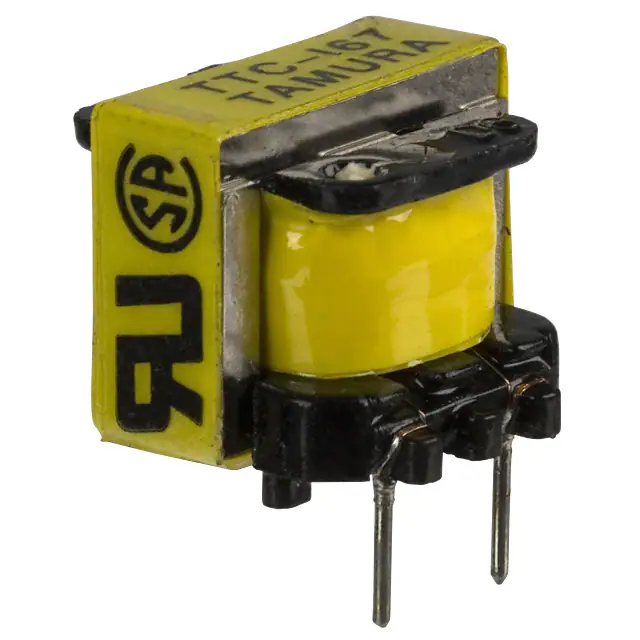

TTC-167 AUDIO XFMR 10K / 10K TH Tamura	3,988	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	10k	10k	330Ohm	420Ohm	Data/Voice Coupling	300Hz ~ 4kHz	±1dB	1000VRMS @ 1 Minute	1.7dB Max @ 1kHz	-	-	-	CSA-C22.2 No. 66-M1988, UL1863	Through Hole	0.610" L x 0.689" W (15.50mm x 17.50mm)	0.551" (14.00mm)	PC Pin

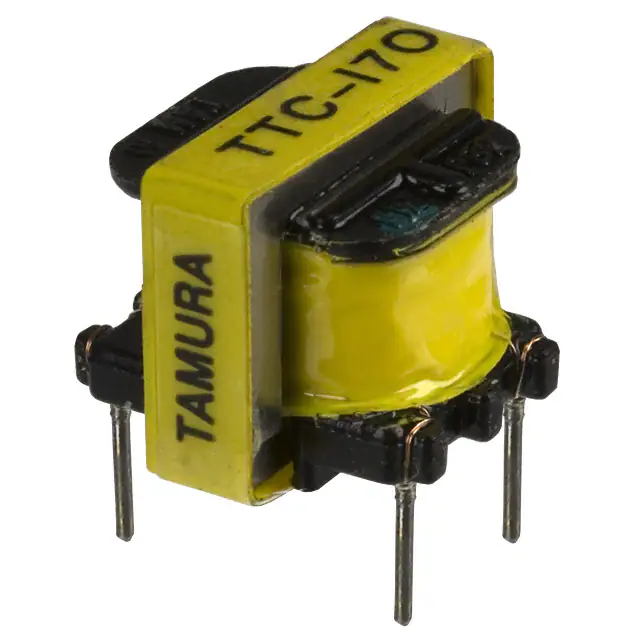

TTC-170 AUDIO XFMR 600 / 600 TH Tamura	1,537	-	RFQ	Datasheet	TTC	Tube	Active	1:1	600	600	47Ohm	61Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.5dB Max @ 1kHz	-	-	0°C ~ 70°C	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.528" L x 0.512" W (13.40mm x 13.00mm)	0.421" (10.70mm)	PC Pin

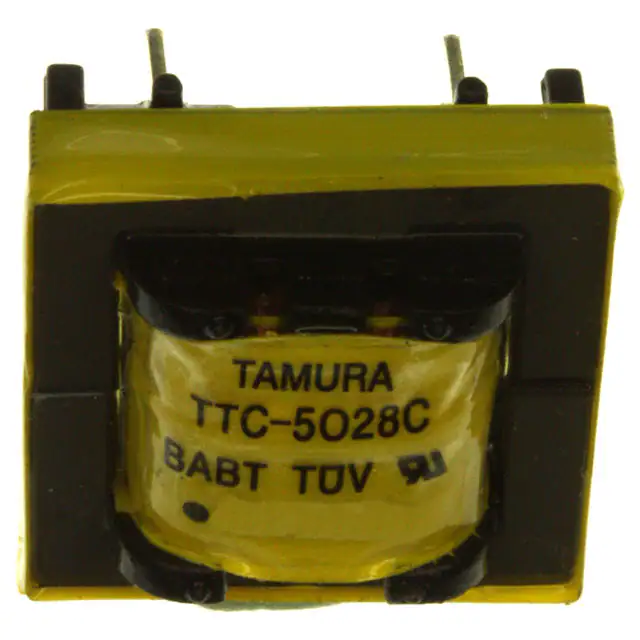

TTC-5028 AUDIO XFMR 600 / 470 TH Tamura	3,996	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	470	92Ohm	120Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB ~ ±4dB	1875VRMS @ 1 Second	2.5dB Max @ 1kHz	-	-40dB ~ 4dB	-	CSA-C22.2 No. 950-95, UL1950	Through Hole	0.886" L x 0.909" W (22.50mm x 23.10mm)	0.583" (14.80mm)	PC Pin

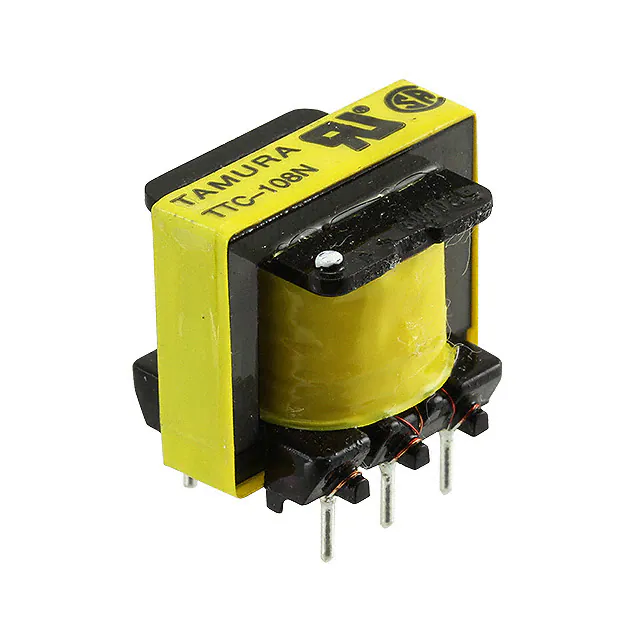

TTC-108N AUDIO XFMR 600CT / 600CT TH Tamura	2,816	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600CT	600CT	44Ohm	56Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.4dB Max @ 1kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.815" L x 0.650" W (20.70mm x 16.50mm)	0.736" (18.70mm)	PC Pin
T1104 AUDIO XFMR 600 / 600 TH Tamura	1,094	-	RFQ	Datasheet	-	Tray	Active	-	600	600	46Ohm	63Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1dB Typ @ 1kHz	26dB Min	-45dB ~ 7dB	-	CSA-C22.2 No. 950-M89, UL1459, UL1950	Through Hole	0.780" L x 0.654" W (19.80mm x 16.60mm)	0.469" (11.90mm)	PC Pin

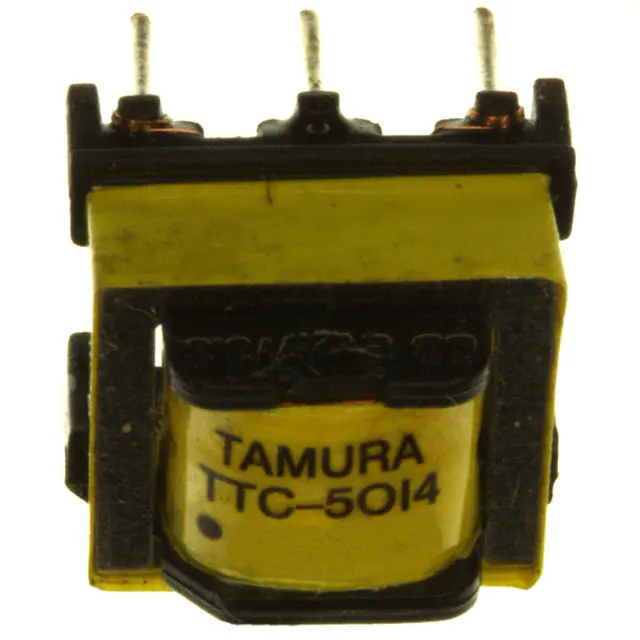

TTC-5014 AUDIO XFMR 600 / 348 TH Tamura	4,296	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	348	149Ohm	139Ohm	-	200Hz ~ 4kHz	±0.25dB	1875VRMS @ 1 Second	3.25dB Max @ 1kHz	14dB Min @ 200Hz ~ 4kHz	-	-	UL60950	Through Hole	0.591" L x 0.571" W (15.00mm x 14.50mm)	0.472" (12.00mm)	PC Pin
TTC-02 AUDIO XFMR 600 / 600 TH Tamura	3,230	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	600	72Ohm	90Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.5dB Max @ 1kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.799" L x 0.650" W (20.30mm x 16.50mm)	0.488" (12.40mm)	PC Pin

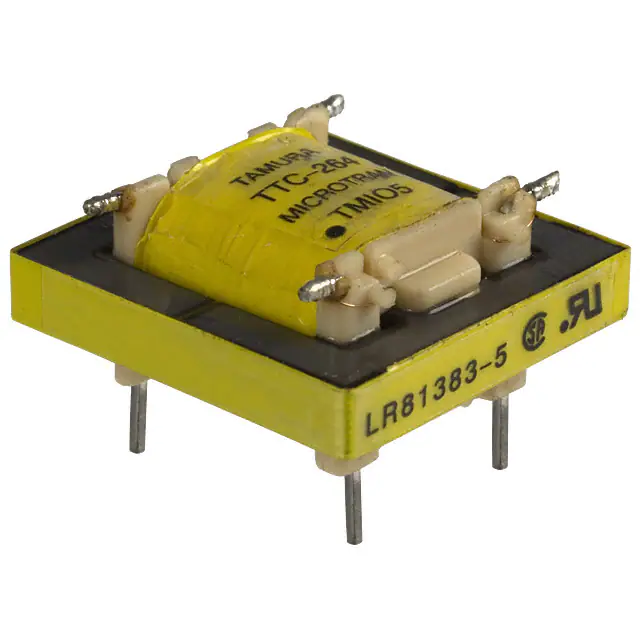

TTC-264 AUDIO XFMR 600 / 470 TH Tamura	2,263	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	470	108Ohm	120Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB ~ ±4dB	1500VRMS @ 1 Minute	2.5dB Max @ 1kHz	-	-20dB ~ 4dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.945" L x 0.906" W (24.00mm x 23.00mm)	0.472" (12.00mm)	PC Pin

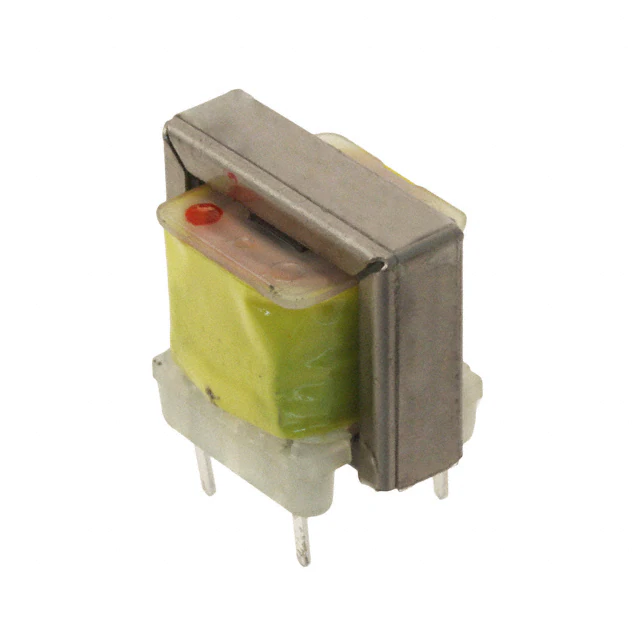

TTC-105-1 AUDIO XFMR 600 / 600CT TH Tamura	4,625	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	600CT	71Ohm	117Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1dB ~ 0.7dB	1500VRMS @ 1 Minute	3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz	-	-45dB ~ 10dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.839" L x 0.630" W (21.30mm x 16.00mm)	0.748" (19.00mm)	PC Pin

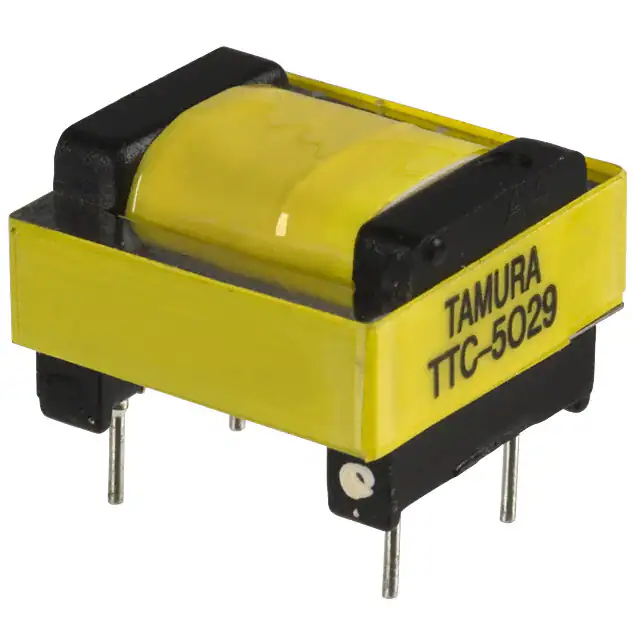

TTC-5029 AUDIO XFMR 600 / 600 TH Tamura	3,338	-	RFQ	Datasheet	TTC	Bulk	Active	1:1	600	600	40Ohm	40Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.2dB	1875VRMS @ 1 Second	1dB Max @ 1kHz	20dB Min @ 200Hz ~ 4kHz	-	0°C ~ 70°C	-	Through Hole	0.669" L x 0.669" W (17.00mm x 17.00mm)	0.472" (12.00mm)	PC Pin
