Automotive Relays
Browse available Automotive Relays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A161CS12VDC.64RELAY AUTOMOTIVE SPDT 25A 12V |
38,430 |
1+：$1.91000 10+：$1.70000 25+：$1.62400 80+：$1.53175 160+：$1.47931 320+：$1.42856 560+：$1.38888 1040+：$1.34621 5040+：$1.24317 |
|
Datasheet | A16 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
AZ9871-1C-12DETRELAY AUTOMOTIVE SPDT 25A 12V |
744 |
1+：$1.68000 10+：$1.49500 25+：$1.42760 50+：$1.37880 100+：$1.33160 250+：$1.27164 500+：$1.22802 1000+：$1.18587 5000+：$1.09340 |
|
Datasheet | AZ9871 | Tray | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 25 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
A2F1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
14,084 |
1+：$2.99000 20+：$2.57500 40+：$2.48675 60+：$2.43667 100+：$2.37480 260+：$2.26327 500+：$2.18990 1000+：$2.11468 5000+：$1.94969 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
26,989 |
1+：$3.33000 20+：$2.86800 40+：$2.77000 60+：$2.71400 100+：$2.64520 260+：$2.52092 500+：$2.43920 1000+：$2.35541 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8N-1L-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V |
0 | - |
|
Datasheet | G8N-1 | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
PC792A-1C-C1-12C-N-XRELAY AUTOMOTIVE SPDT 40A 12V |
7,966 |
1+：$2.84000 20+：$2.44050 40+：$2.35700 60+：$2.30933 100+：$2.25080 260+：$2.14512 500+：$2.07560 1000+：$2.00432 5000+：$1.84794 |
|
Datasheet | - | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 40A 24V |
3,934 |
1+：$3.52000 20+：$3.03100 40+：$2.92725 60+：$2.86817 100+：$2.79540 260+：$2.66404 500+：$2.57766 1000+：$2.48912 |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
13,782 |
1+：$3.47000 20+：$2.98600 40+：$2.88350 60+：$2.82533 100+：$2.75370 260+：$2.62435 500+：$2.53926 1000+：$2.45203 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V |
12,339 |
1+：$2.84000 20+：$2.44050 40+：$2.35700 60+：$2.30933 100+：$2.25080 260+：$2.14512 500+：$2.07560 1000+：$2.00432 5000+：$1.84794 |
|
Datasheet | - | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
7,691 |
1+：$3.41000 20+：$2.93700 40+：$2.83625 60+：$2.77900 100+：$2.70850 260+：$2.58127 500+：$2.49760 1000+：$2.41179 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2M1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
5,206 |
1+：$3.31000 20+：$2.85150 40+：$2.75400 60+：$2.69850 100+：$2.63000 260+：$2.50642 500+：$2.42518 1000+：$2.34187 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC782-1C-12S-D-XRELAY AUTOMOTIVE SPDT 30A 12V |
4,631 |
1+：$3.27000 10+：$2.91600 25+：$2.78480 50+：$2.68940 100+：$2.59730 250+：$2.48020 500+：$2.39506 1000+：$2.31279 |
|
Datasheet | - | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2F1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
9,914 |
1+：$3.44000 20+：$2.95850 40+：$2.85725 60+：$2.79950 100+：$2.72850 260+：$2.60035 500+：$2.51604 1000+：$2.42961 |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC782-1C-12S-R-XRELAY AUTOMOTIVE SPDT 30A 12V |
1,227 | - |
|
Datasheet | - | Tube | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A171AHS12VDC.96RELAY AUTOMOTIVE SPDT 30A 12V |
4,612 |
1+：$2.70000 10+：$2.40700 25+：$2.29880 50+：$2.22020 200+：$2.07070 400+：$1.99965 600+：$1.95920 1000+：$1.90939 5000+：$1.76043 |
|
Datasheet | A17 | Tray | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC792A-1C-C-12S-RN-XRELAY AUTOMOTIVE SPDT 40A 12V |
6,379 |
1+：$2.90000 20+：$2.49800 40+：$2.41275 60+：$2.36400 100+：$2.30400 260+：$2.19581 500+：$2.12464 1000+：$2.05166 5000+：$1.89159 |
|
Datasheet | - | Box | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C1-12S-RN-XRELAY AUTOMOTIVE SPDT 40A 12V |
6,232 |
1+：$2.90000 20+：$2.49800 40+：$2.41275 60+：$2.36400 100+：$2.30400 260+：$2.19581 500+：$2.12464 1000+：$2.05166 5000+：$1.89159 |
|
Datasheet | - | Bulk | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C1-12S-DN-XRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
1+：$2.90000 20+：$2.49800 40+：$2.41275 60+：$2.36400 100+：$2.30400 260+：$2.19581 500+：$2.12464 1000+：$2.05166 5000+：$1.89159 |
|
Datasheet | - | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 50A 12V |
4,649 |
1+：$3.19000 20+：$2.74700 40+：$2.65300 60+：$2.59950 100+：$2.53360 260+：$2.41454 500+：$2.33628 1000+：$2.25604 |
|
Datasheet | A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

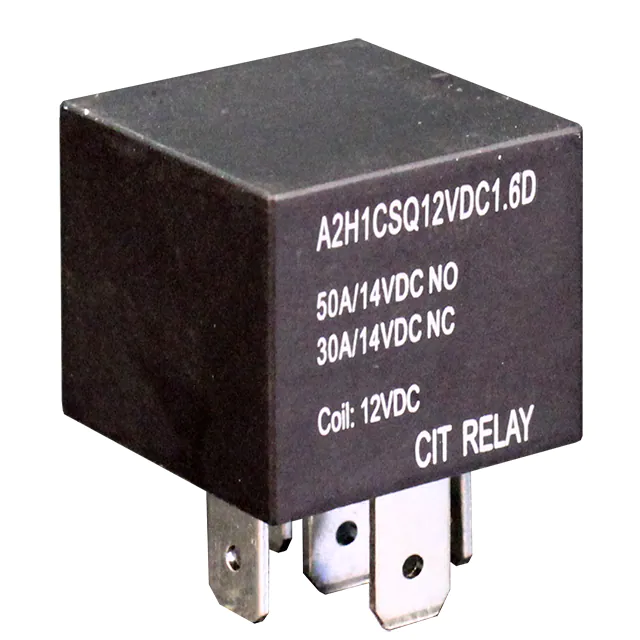

A2H1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V |
2,365 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
Automotive Relays FAQ
Common questions about selecting, comparing and sourcing Automotive Relays components through Winsun (HK) Electronics.
What should I check when selecting Automotive Relays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Automotive Relays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Automotive Relays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Automotive Relays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
