Automotive Relays
Browse available Automotive Relays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-12C-D-XRELAY AUTOMOTIVE SPST 130A 12V |
3,887 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-R-XRELAY AUTOMOTIVE SPST 130A 24V |
4,085 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-12C-R-XRELAY AUTOMOTIVE SPST 130A 12V |
3,764 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24C-D-XRELAY AUTOMOTIVE SPST 130A 24V |
1,567 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
7-1414968-8RELAY AUTOMOTIVE SPST 130A 12V |
3,542 | - |
|
Datasheet | - | Bulk | Active | Non Latching | 324.3 mA | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | Resistor | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
AEBN11112RELAY AUTOMOTIVE SPST 100A 12V |
4,010 | - |
|
Datasheet | AEB | Bulk | Active | Non Latching | 167 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 60VDC - Max | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 85°C |
|
|
5-1415002-5V23132E2001B200 |
4,424 | - |
|
Datasheet | - | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 17.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
AEV31012RELAY AUTOMOTIVE SPST 10A 12V |
1,089 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 103 mA | 12VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|
|
AEV31024RELAY AUTOMOTIVE SPST 10A 24V |
3,173 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Through Hole | PC Pin | -40°C ~ 80°C |
|
AEV110242RELAY AUTOMOTIVE SPST 10A 24V |
3,599 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 52 mA | 24VDC | SPST-NO (1 Form A) | 10 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 80°C |
|
|
ACNL111RELAY AUTOMOTIVE SPST 150A 12V |
3,475 | - |
|
Datasheet | CN-L | Bulk | Active | Latching, Single Coil | 2.5 A | 12VDC | SPST-NO (1 Form A) | 150 A | 14VDC - Nom | 7 VDC | - | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Plug In | -40°C ~ 125°C |
|
|
AEVH900122RELAY AUTOMOTIVE SPST 100A 12V |
1,582 | - |
|
Datasheet | AEV | Bulk | Active | Non Latching | 453 mA | 12VDC | SPST-NO (1 Form A) | 100 A | 450VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|
AEVS960122RELAY AUTO SPST-NO 60A 12V |
4,484 | - |
|
Datasheet | AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C |
|
AEVS16012RELAY AUTO SPST-NO 60A 12V |
4,675 | - |
|
Datasheet | AEVS | Bulk | Active | Non Latching | 375 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Nom | 9 VDC | 1 VDC | 50 ms | 50 ms | - | Chassis Mount | Screw Terminal, Wire Leads | -40°C ~ 80°C |
|

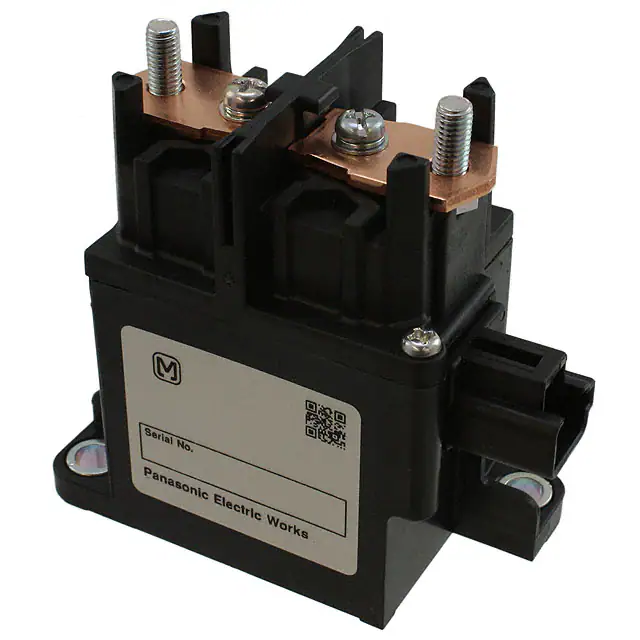

AEV18024RELAY AUTOMOTIVE SPST 80A 24V |
4,921 | - |
|
Datasheet | AEV | Bulk | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
AEV17024RELAY AUTOMOTIVE SPST 200V 24V |
1,583 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 250 mA | 24VDC | SPST-NO (1 Form A) | 200 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Wire Leads | -40°C ~ 80°C |
|
AEV19012WRELAY AUTOMOTIVE SPST 300A 12V |
4,153 | - |
|
Datasheet | AEV | Tray | Active | Non Latching | 3.2 A | 12VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 9 VDC | 2 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
AEV19024WRELAY AUTOMOTIVE SPST 300A 24V |
3,014 | - |
|
Datasheet | AEV | Tray | Active | Non Latching | 1.9 A | 24VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 18 VDC | 4 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
G8JN-1C7T-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
1,612 | - |
|
Datasheet | G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
G8JN-1C7T-MF-DC12RELAY AUTOMOTIVE SPDT 35A 12V |
2,020 | - |
|
Datasheet | G8JN | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 35 A | 16VDC - Max | 8 VDC | 1 VDC | 20 ms | 10 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
Automotive Relays FAQ
Common questions about selecting, comparing and sourcing Automotive Relays components through Winsun (HK) Electronics.
What should I check when selecting Automotive Relays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Automotive Relays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Automotive Relays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Automotive Relays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
