Bipolar RF Transistors
Browse available Bipolar RF Transistors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAPR-001090-350S00TRANSISTOR,350WPK,1.09GHZ |
3,080 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 65V | - | - | 9dB | 1100W | - | 25A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
MAPR-001011-850S00TRANSISTOR,850W,1025-1150MHZ,50V |
5,208 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 80V | 1.15GHz | - | 7.8dB | 11600W | - | 250A | 200°C | - | - | Chassis Mount | 2L-FLG |
|
|
BLA6H0912-DTS,112BLA6H0912-DTS/SOT634/TRAY |
6,803 | - |
|
Datasheet | - | - | Tray | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDS500LRF TRANS NPN 70V 1.09GHZ 55ST |
8,389 | - |
|
Datasheet | - | 55ST | Bulk | Obsolete | NPN | 70V | 1.03GHz ~ 1.09GHz | - | 9.2dB | 833W | 20 @ 1A, 5V | 24A | 200°C (TJ) | - | - | Chassis Mount | 55ST |
|

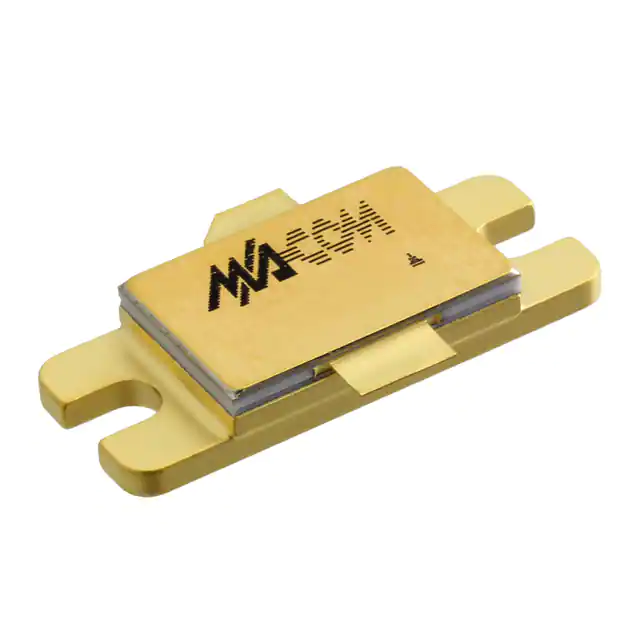

MRF10502RF TRANS NPN 65V 355J-02 |
3,536 | - |
|
Datasheet | - | 355J-02 | Tray | Active | NPN | 65V | - | - | 9dB | 500W | 20 @ 5A, 5V | 29A | 200°C (TJ) | - | - | Chassis Mount | 355J-02, STYLE 1 |
|
|
TPR1000RF TRANS NPN 65V 1.09GHZ 55KV |
6,515 | - |
|
Datasheet | - | 55KV | Bulk | Obsolete | NPN | 65V | 1.09GHz | - | 6dB | 2900W | 10 @ 1A, 5V | 80A | 200°C (TJ) | - | - | Chassis Mount | 55KV |
|
|
PH2729-110MTRANSISTOR,110W,2.7-2.9GHZ,100US |
3,969 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 63V | 2.7GHz ~ 2.9GHz | - | 6.8dB | 330W | - | 8A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|

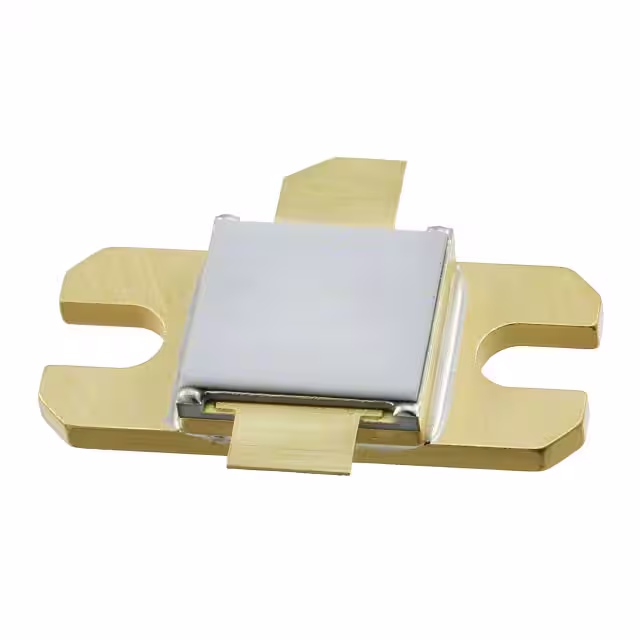

PH2731-75LRF TRANS NPN 65V |
6,300 | - |
|
Datasheet | - | - | Tray | Active | NPN | 65V | - | - | 8.16dB ~ 8.86dB | 75W | - | 7A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
ITC1100RF TRANS NPN 65V 1.03GHZ 55SW |
9,591 | - |
|
Datasheet | - | 55SW | Bulk | Obsolete | NPN | 65V | 1.03GHz | - | 10dB ~ 10.5dB | 3400W | 10 @ 5A, 5V | 80A | 200°C (TJ) | - | - | Chassis Mount | 55SW |
|
|
PH2729-65MTRANSISTOR,BIPOLAR,65W,36V,2.70- |
3,059 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 65V | 2.7GHz ~ 2.9GHz | - | 8.5dB | 330W | - | 8A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
MDS800RF TRANS NPN 65V 1.09GHZ 55ST-1 |
8,520 | - |
|
Datasheet | - | 55ST-1 | Bulk | Obsolete | NPN | 65V | 1.09GHz | - | 8.6dB | 1458W | 20 @ 1A, 5V | 60A | 200°C (TJ) | - | - | Chassis Mount | 55ST-1 |
|
|
PH3135-90STRANSISTOR,90W,3.1-3.5GHZ,2US,10 |
7,424 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 65V | - | - | 7.5dB | 580W | - | 10.7A | 200°C (TJ) | - | - | Chassis Mount | - |
|
PH2729-130MRF TRANS NPN 63V |
9,560 | - |
|
Datasheet | - | - | Tray | Active | NPN | 63V | - | - | 9.73dB ~ 8.85dB | 130W | - | 12.5A | 200°C (TJ) | - | - | Chassis Mount | - |
|
MAPRST0912-350RF TRANS NPN 65V 1.215GHZ |
7,529 | - |
|
Datasheet | - | - | Tray | Active | NPN | 65V | 1.215GHz | - | 9.4dB | 350W | - | 32.5A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
TCS800RF TRANS NPN 65V 1.03GHZ 55SM |
6,967 | - |
|
Datasheet | - | 55SM | Bulk | Obsolete | NPN | 65V | 1.03GHz | - | 8dB ~ 9dB | 1944W | 20 @ 5A, 5V | 50A | 230°C (TJ) | - | - | Chassis Mount | 55SM |
|
|
PH1214-220MTRANSISTOR,220W,1.2-1.4GHZ,150US |
2,248 | - |
|
Datasheet | - | 2L-FLG | Bulk | Active | NPN | 70V | 1.4GHz | - | 7.4dB | 700W | - | 21A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
MAPR-000912-500S00RF TRANS NPN 80V |
4,341 | - |
|
Datasheet | - | - | Tray | Active | NPN | 80V | - | - | 9.44dB ~ 9.77dB | 500W | - | 52.5A | 200°C (TJ) | - | - | Chassis Mount | - |
|
PH1090-350LRF TRANS NPN 80V |
4,960 | - |
|
Datasheet | - | - | Tray | Active | NPN | 80V | - | - | 8.32dB | 350W | - | 17A | 200°C (TJ) | - | - | Chassis Mount | - |
|
PH1090-550SRF TRANS NPN 80V |
9,779 | - |
|
Datasheet | - | - | Tray | Active | NPN | 80V | - | - | 8.06dB | 550W | - | 28A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
TCS1200RF TRANS NPN 65V 1.03GHZ 55TU-1 |
8,013 | - |
|
Datasheet | - | 55TU-1 | Bulk | Obsolete | NPN | 65V | 1.03GHz | - | 10.2dBd | 2095W | 20 @ 1A, 5V | 60A | 200°C (TJ) | - | - | Chassis Mount | 55TU-1 |
Bipolar RF Transistors FAQ
Common questions about selecting, comparing and sourcing Bipolar RF Transistors components through Winsun (HK) Electronics.
What should I check when selecting Bipolar RF Transistors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Bipolar RF Transistors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Bipolar RF Transistors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Bipolar RF Transistors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
