Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-40-20-5PX-TRCRYSTAL 4.0000MHZ 20PF SMD |
28,734 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
XRCGB24M000F3M00R0CRYSTAL 24.0000MHZ 6PF SMD |
41,672 | - |
|
Datasheet | XRCGB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF | 150 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.028" (0.70mm) |
|
|
ECS-160-20-5PX-TRCRYSTAL 16.0000MHZ 20PF SMD |
10,764 | - |
|
Datasheet | CSM-7X | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ABLS7M2-18.432MHZ-D2Y-TCRYSTAL 18.4320MHZ 18PF SMD |
28,026 | - |
|
Datasheet | ABLS7M2 | 2-SMD, Flat Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±30ppm | ±20ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.079" (2.00mm) |
|
403C11E32M00000CRYSTAL 32.0000MHZ 20PF SMD |
14,000 | - |
|
Datasheet | 403 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 20pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
ECS-320-10-36B2-CKM-TRCRYSTAL 32.0000MHZ 10PF SMD |
6,131 | - |
|
Datasheet | ECX-2236B2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 10pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
ECS-240-12-37B-CKY-TRCRYSTAL 24.0000MHZ 12PF SMD |
90,993 | - |
|
Datasheet | ECX-1637B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 12pF | 50 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
ECS-250-10-37B-CTN-TRCRYSTAL 25.0000MHZ 10PF SMD |
53,157 | - |
|
Datasheet | ECX-1637B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±20ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
403C35D12M00000CRYSTAL 12.0000MHZ 18PF SMD |
28,086 | - |
|
Datasheet | 403 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
ECS-120-12-36-AGN-TR3CRYSTAL 12.0000MHZ 12PF SMD |
16,218 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±25ppm | 12pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
ECS-250-18-33-JGN-TR3CRYSTAL 25.0000MHZ 18PF SMD |
73,496 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
ECS-320-10-37B-CKY-TRCRYSTAL 32.0000MHZ 10PF SMD |
43,273 | - |
|
Datasheet | ECX-1637B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
ECS-320-8-37-CKM-TR3CRYSTAL 32.0000MHZ 8PF SMD |
95,742 | - |
|
Datasheet | ECX-1637 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|

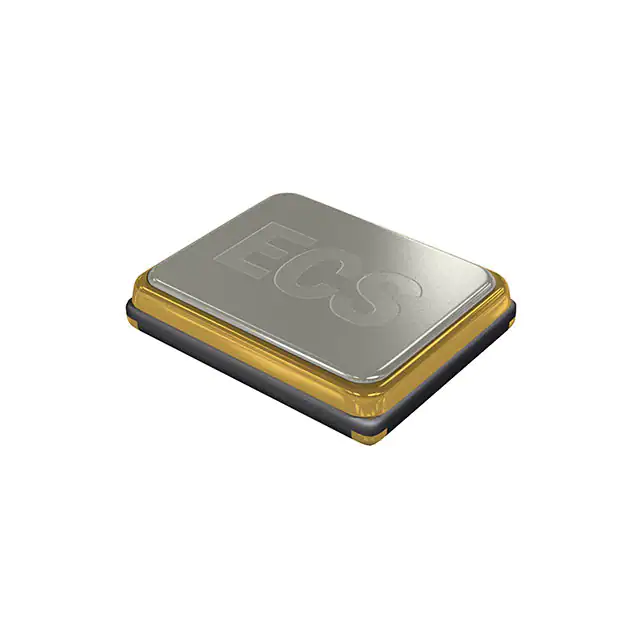

ECS-320-8-37B-CWY-TRCRYSTAL 32.0000MHZ 8PF SMD |
26,629 | - |
|
Datasheet | ECX-1637B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 8pF | 50 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
ECS-320-8-36B-CKY-TRCRYSTAL 32.0000MHZ 8PF SMD |
5,272 | - |
|
Datasheet | ECX-2236B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF | 40 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
SC32S-7PF20PPMCRYSTAL 32.7680KHZ 7PF SMD |
112,526 | - |
|
Datasheet | SC32S | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.033" (0.85mm) |
|
ECS-400-10-37B2-CKY-TRCRYSTAL 40.0000MHZ 10PF SMD |
16,999 | - |
|
Datasheet | ECX-1637B2 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 10pF | 40 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
ECS-40-20-5PXDN-TRCRYSTAL 4.0000MHZ 20PF SMD |
15,580 | - |
|
Datasheet | CSM-7X-DN | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±100ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ECS-120-20-5PXDN-TRCRYSTAL 12.0000MHZ 20PF SMD |
12,936 | - |
|
Datasheet | CSM-7X-DN | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±100ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
SSPT7F-9PF10-RCRYSTAL 32.7680KHZ 9PF SMD |
11,350 | - |
|
Datasheet | SSP-T | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 9pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
