Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-160-12-33-AGN-TRCRYSTAL 16.0000MHZ 12PF SMD |
9,145 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±25ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
CM13032768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
101,810 |
1+：$0.43000 10+：$0.37500 25+：$0.35440 50+：$0.33980 100+：$0.32570 250+：$0.30804 500+：$0.29528 1000+：$0.28306 |
|
Datasheet | CM130 | 4-SMD, Flat Lead, 3 Leads | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.264" L x 0.055" W (6.70mm x 1.40mm) | 0.055" (1.40mm) |
.jpg "ABM8-27.120MHZ-10-D1G-T")
|
ABM8-27.120MHZ-10-D1G-TCRYSTAL 27.1200MHZ 10PF SMD |
8,438 | - |
|
Datasheet | ABM8 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±15ppm | ±10ppm | 10pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
ECS-80-20-5PXDU-TRCRYSTAL 8.0000MHZ 20PF SMD |
61,269 | - |
|
Datasheet | CSM-7X-DU | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±100ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -55°C ~ 125°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
ECS-160-9-33B-CTP-TRCRYSTAL 16MHZ 9PF SMD |
18,954 | - |
|
Datasheet | ECS-33B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±20ppm | ±10ppm | 9pF | 60 Ohms | Fundamental | -40°C ~ 105°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
Q 0,032768-JTX310-12,5-20-T1-HMR-LFCRYSTAL 32.7680KHZ 12.5PF SMD |
44,943 |
1+：$0.42000 10+：$0.36400 25+：$0.34440 50+：$0.33000 100+：$0.31640 250+：$0.29916 500+：$0.28680 1000+：$0.27493 |
|
Datasheet | JTX310 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

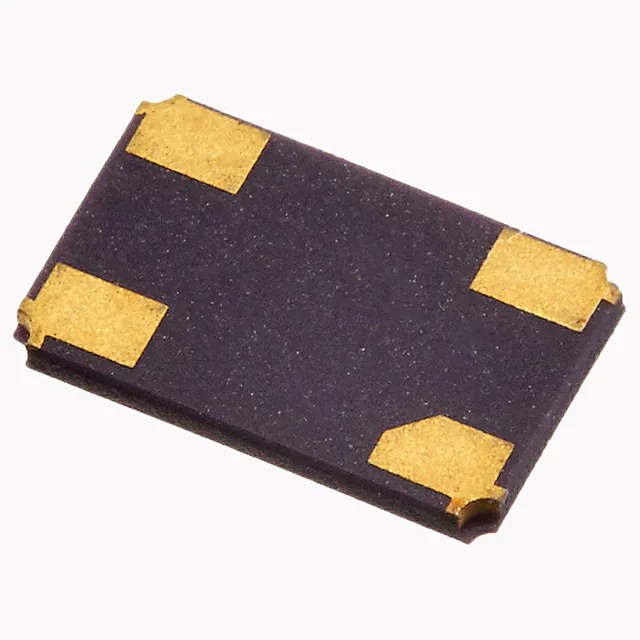

H130B-8.000-18-3030-EXT-TRCRYSTAL 8.0000MHZ 18PF SMD |
3,000 | - |
|
Datasheet | H130B | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 18pF | 85 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|
ABS25-32.768KHZ-TCRYSTAL 32.7680KHZ 12.5PF SMD |
99,760 | - |
|
Datasheet | ABS25 | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|

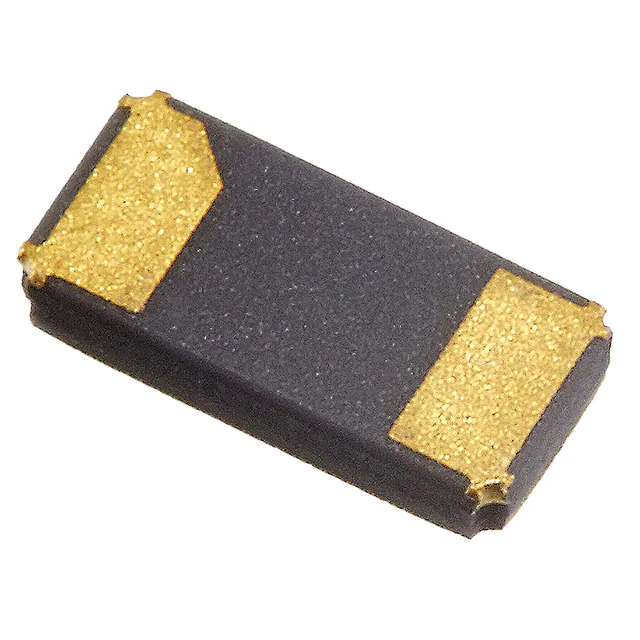

RT3215-32.768-12.5-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
78,021 | - |
|
Datasheet | RT3215 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
MS3V-T1R-32.768KHZ-9PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 9PF SMD |
94,203 |
1+：$0.76000 10+：$0.66400 25+：$0.62800 50+：$0.60200 100+：$0.57700 250+：$0.54564 500+：$0.52308 1000+：$0.50144 |
|
Datasheet | MS3V | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.205" L x 0.055" W (5.20mm x 1.40mm) | 0.058" (1.48mm) |
|
STDCSK4-25MCRYSTAL 25.0000MHZ 8PF SMD |
20,018 | - |
|
Datasheet | NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 8pF | 50 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
CM315H32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
12,622 |
1+：$0.72000 10+：$0.62400 25+：$0.59000 50+：$0.56540 100+：$0.54210 250+：$0.51264 500+：$0.49144 1000+：$0.47111 |
|
Datasheet | CM315H | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
ECS-250-20-33-JTN-TRCRYSTAL 25.0000MHZ 20PF SMD |
10,674 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 20pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
MS3V-T1R-32.768KHZ-7PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 7PF SMD |
2,339 |
1+：$0.69000 10+：$0.60300 25+：$0.57080 50+：$0.54700 100+：$0.52450 250+：$0.49596 500+：$0.47544 1000+：$0.45577 |
|
Datasheet | MS3V | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.205" L x 0.055" W (5.20mm x 1.40mm) | 0.058" (1.48mm) |
|
445I23D25M00000CRYSTAL 25.0000MHZ 18PF SMD |
220,443 | - |
|
Datasheet | 445 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 40 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
ECS-271.2-10-37-CKM-TRCRYSTAL 27.1200MHZ 10PF SMD |
40,308 | - |
|
Datasheet | ECX-1637 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27.12 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.022" (0.55mm) |
|
ABM10-166-12.000MHZ-T3CRYSTAL 12.0000MHZ 8PF SMD |
34,850 | - |
|
Datasheet | ABM10 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±10ppm | ±10ppm | 8pF | 125 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
830108178109WE-XTAL QUARTZ CRYSTAL 16.0 MHZ; |
10,429 | - |
|
Datasheet | IQXC-42 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±20ppm | ±10ppm | 8pF | 200 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
|
RT3215-32.768-9-TRCRYSTAL 32.7680KHZ 9PF SMD |
10,400 | - |
|
Datasheet | RT3215 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
VXM7-9013-25M0000000CRYSTAL 25.0000MHZ SMD |
4,633 | - |
|
Datasheet | VXM7 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | - | ±20ppm | - | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
