Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABM3-20.000MHZ-D2Y-TCRYSTAL 20.0000MHZ 18PF SMD |
11,049 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±30ppm | ±20ppm | 18pF | 30 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|

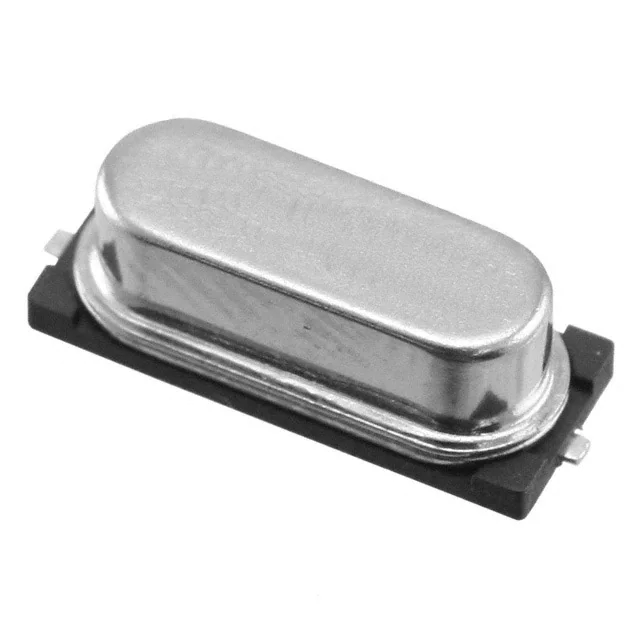

ECS-40-20-5PXDU-TRCRYSTAL 4.0000MHZ 20PF SMD |
8,050 | - |
|
Datasheet | CSM-7X-DU | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±100ppm | ±30ppm | 20pF | 150 Ohms | Fundamental | -55°C ~ 125°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.169" (4.30mm) |
|
|
ABM3-18.432MHZ-B2-TCRYSTAL 18.4320MHZ 18PF SMD |
4,217 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 18.432 MHz | ±50ppm | ±20ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
ECS-240-8-36CKM-TRCRYSTAL 24.0000MHZ 8PF SMD |
139,564 | - |
|
Datasheet | ECX-2236 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
CM315D32768DZYTCRYSTAL 32.7680KHZ 7PF SMD |
130,570 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
ECS-390-CDX-1932CRYSTAL 39.0000MHZ 10PF SMD |
16,703 | - |
|
Datasheet | ECS-CDX | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 39 MHz | ±13ppm | ±8ppm | 10pF | 35 Ohms | Fundamental | -40°C ~ 95°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
CS10820-24MCRYSTAL 24.0000MHZ 8PF SMD |
7,629 | - |
|
Datasheet | NX2016SA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±15ppm | 6pF | 80 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
ECS-.327-12.5-34B-C-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
114,663 | - |
|
Datasheet | ECX-31B | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|

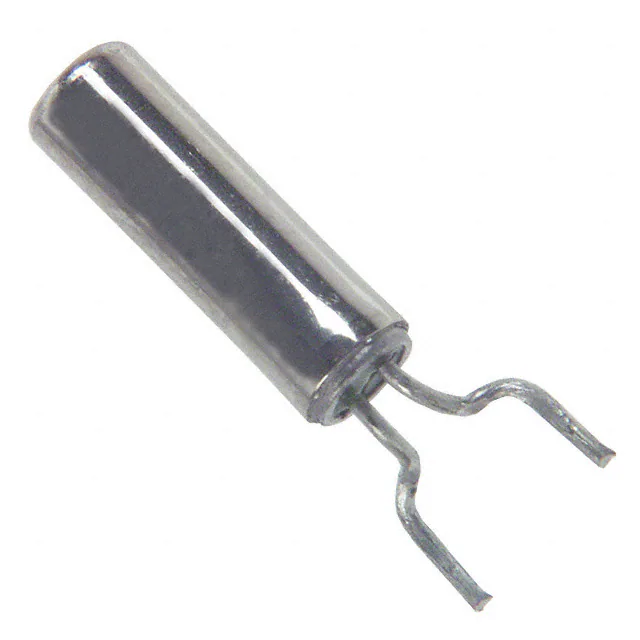

CMR200T32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
36,050 | - |
|
Datasheet | CMR200T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
ABM3-20.000MHZ-B2-TCRYSTAL 20.0000MHZ 18PF SMD |
9,998 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 20 MHz | ±50ppm | ±20ppm | 18pF | 30 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
LNCD1-25MCRYSTAL 25.0000MHZ 8PF SMD |
167,774 | - |
|
Datasheet | NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 8pF | 70 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
FC-135 32.7680KA-AG5CRYSTAL 32.7680KHZ 7PF SMD |
92,268 | - |
|
Datasheet | FC-135 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | 2-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
HCM494000000ABJTCRYSTAL 4.0000MHZ 18PF SMD |
78,471 | - |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
ECS-250-20-33-CKM-TRCRYSTAL 25.0000MHZ 20PF SMD |
32,326 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
CFS-20632768HZFBCRYSTAL 32.7680KHZ 12.5PF TH |
22,554 | - |
|
Datasheet | CFS-206 | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 35 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.075" Dia (1.90mm) | 0.244" (6.20mm) |
|
|
LNCD1-16MCRYSTAL 16.0000MHZ 8PF SMD |
22,113 | - |
|
Datasheet | NX5032GA | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 8pF | 120 Ohms | Fundamental | -10°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ECS-240-20-33-TRCRYSTAL 24.0000MHZ 20PF SMD |
11,357 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±50ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
CM315D32768EZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
239,166 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
CM315D32768HZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
156,565 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
.jpg "CX3225SB12000D0FPNCC")
|
CX3225SB12000D0FPNCCCRYSTAL 12.0000MHZ 8PF SMD |
57,936 | - |
|
Datasheet | CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±25ppm | ±10ppm | 8pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
