Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XRCGE26M000FBA2AR026.0MHZ CRYSTAL UNIT +/-15PPM IN |
3,909 | - |
|
Datasheet | XRCFD | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±35ppm | ±15ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.028" (0.70mm) |
|
LFXTAL050789CRYSTAL 32.7680KHZ 12.5PF SMD |
85,759 | - |
|
Datasheet | IQXC-25 | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 90 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.024" (0.60mm) |
|
Q 16,0-JXS32-12-10/15-T1-WA-LFCRYSTAL 16.0000MHZ 12PF SMD |
83,885 | - |
|
Datasheet | JXS32-WA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±15ppm | ±10ppm | 12pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.028" (0.70mm) |
|
XRCGB25M000F3A00R0CRYSTAL 25.0000MHZ 6PF SMD |
5,466 | - |
|
Datasheet | XRCGB | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±35ppm | ±35ppm | 6pF | 100 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.028" (0.70mm) |
|
ABM8G-25.000MHZ-18-D2Y-TCRYSTAL 25.0000MHZ 18PF SMD |
55,843 | - |
|
Datasheet | ABM8G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
ABM10AIG-12.000MHZ-4Z-T3CRYSTAL 12.0000MHZ 10PF SMD |
24,559 | - |
|
Datasheet | ABM10AIG | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 10pF | 150 Ohms | Fundamental | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.026" (0.65mm) |
|
|
ABM8G-12.000MHZ-18-D2Y-TCRYSTAL 12.0000MHZ 18PF SMD |
22,660 | - |
|
Datasheet | ABM8G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±20ppm | 18pF | 120 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
RSM200S-32.768-12.5-TRCRYSTAL 32.7680KHZ 12.5PF SMD |
12,338 | - |
|
Datasheet | RSM200S | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|
CM315D32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
343,478 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
ECS-80-20-5G3XDS-TRCRYSTAL 8.0000MHZ 20PF SMD |
111,155 | - |
|
Datasheet | CSM-7X-3L | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±100ppm | ±30ppm | 20pF | 60 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.165" (4.20mm) |
|
|
CM315D32768DZBTCRYSTAL 32.7680KHZ 6PF SMD |
72,145 | - |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
ECS-384-CDX-1983CRYSTAL 38.4000MHZ 10PF SMD |
42,799 | - |
|
Datasheet | ECS-CDX | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 38.4 MHz | ±40ppm | ±10ppm | 10pF | 40 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.020" (0.50mm) |
|
445C35A12M00000CRYSTAL 12.0000MHZ 10PF SMD |
30,192 | - |
|
Datasheet | 445 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 10pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
|
MS3V-T1R-32.768KHZ-12.5PF-20PPM-TA-QCCRYSTAL 32.7680KHZ 12.5PF SMD |
27,872 | - |
|
Datasheet | MS3V | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.205" L x 0.055" W (5.20mm x 1.40mm) | 0.058" (1.48mm) |

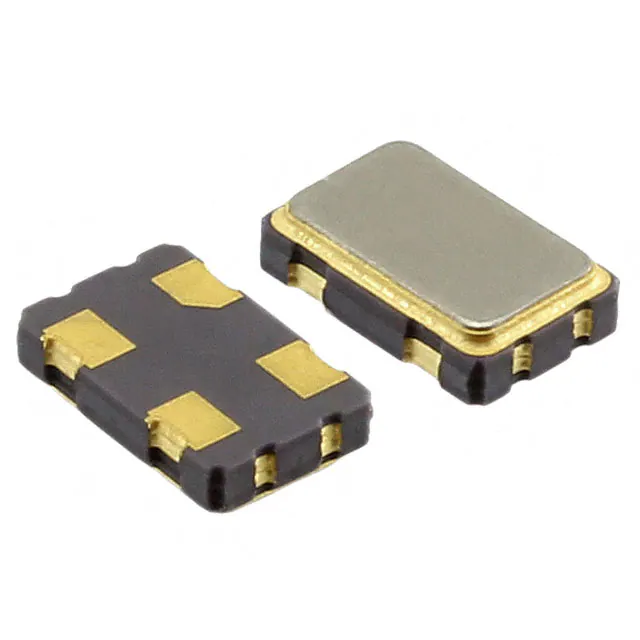

.jpg "CX3225SB12000H0FLJCC")
|
CX3225SB12000H0FLJCCCRYSTAL 12.0000MHZ 12PF SMD |
18,531 | - |
|
Datasheet | CX3225SB, Kyocera | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±15ppm | ±10ppm | 12pF | 150 Ohms | Fundamental | -30°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|

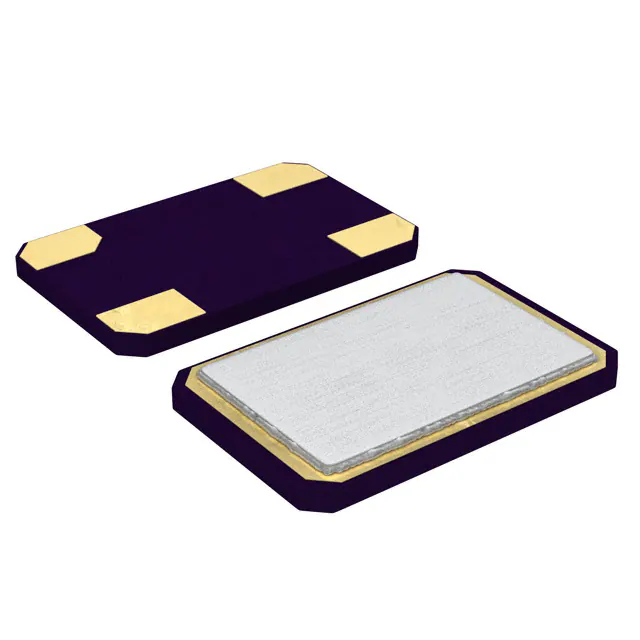

ABM8W-48.0000MHZ-7-D1X-T3CRYSTAL 48.0000MHZ 7PF SMD |
17,826 | - |
|
Datasheet | ABM8W | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 48 MHz | ±20ppm | ±10ppm | 7pF | 30 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.030" (0.75mm) |
|
ECS-250-20-33-TRCRYSTAL 25.0000MHZ 20PF SMD |
8,369 | - |
|
Datasheet | ECX-32 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
405I35D25M00000CRYSTAL 25.0000MHZ 18PF SMD |
78,229 | - |
|
Datasheet | 405 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.039" (1.00mm) |
|
ABM3-12.288MHZ-D2Y-TCRYSTAL 12.2880MHZ 18PF SMD |
69,821 | - |
|
Datasheet | ABM3 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12.288 MHz | ±30ppm | ±20ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.051" (1.30mm) |
|
|
445C33D24M00000CRYSTAL 24.0000MHZ 18PF SMD |
42,123 | - |
|
Datasheet | 445 | 2-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.053" (1.35mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
