Crystals
Use the filters and product table below to compare Crystals components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

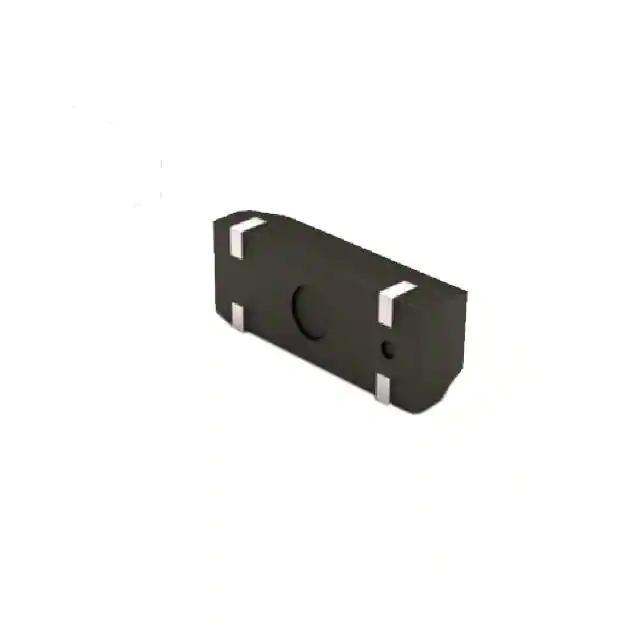

FR08S4-32.768-N06LLDTKCRYSTAL 32.768KHZ 6PF SMD |
44,900 | - |
|
Datasheet | FR08S4 | 4-SOJ, 5.50mm pitch | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.315" L x 0.150" W (8.00mm x 3.80mm) | 0.098" (2.50mm) |
|
3426S-32.768DT07LLKCRYSTAL 32.768KHZ 7PF SMD |
50,800 | - |
|
Datasheet | 3426S | Radial, Can - SMD | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 40 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
3426T-32.768DT06LLKCRYSTAL 32.768KHZ 6PF THROGH HOL |
50,800 | - |
|
Datasheet | 3426T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 40 kOhms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.236" (6.00mm) |
|
|
3131M-32.768DT07LL-R50K3215 32.768KHz 7pF /-20ppm -40-8 |
78,969 | - |
|
Datasheet | 3131M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | - | ±20ppm | ±20ppm | 7pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
049SS2-6.000F22DTLJKHC-49SMD 6MHz 22pF +/-20ppm -40- |
78,523 | - |
|
Datasheet | 049SS2 | HC-49SMD | Tape & Reel (TR) | Active | MHz Crystal | 6 MHz | ±30ppm | ±20ppm | 22pF | 65 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.181" W (11.40mm x 4.60mm) | 0.165" (4.20mm) |
|
|
049SS2-24.576F22DTLJKHC-49SMD 2pin 24.576MHz 22pF +/- |
78,511 | - |
|
Datasheet | 049SS2 | HC-49SMD | Tape & Reel (TR) | Active | MHz Crystal | - | ±30ppm | ±20ppm | 22pF | 18 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.181" W (11.40mm x 4.60mm) | 0.165" (4.20mm) |
|
|
3131M-32.768DT07LLKCRYSTAL 32.768KHZ 7PF SMD |
50,800 | - |
|
Datasheet | 3131M | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
3426S-32.768DT09LLKCRYSTAL 32.768KHZ 9PF SMD |
50,800 | - |
|
Datasheet | 3426S | Radial, Can - SMD | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 40 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
3426T-32.768DT09LLKCRYSTAL 32.768KHZ 9PF THROGH HOL |
50,800 | - |
|
Datasheet | 3426T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 40 kOhms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.236" (6.00mm) |
|
|
3426T-32.768DT07LLKCRYSTAL 32.768KHZ 7PF THROGH HOL |
50,800 | - |
|
Datasheet | 3426T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 7pF | 40 kOhms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.236" (6.00mm) |
Crystals FAQ
Common questions about filtering, comparing and sourcing Crystals components.
How can I narrow the Crystals selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Crystals part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
