Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS-023-114.285MCRYSTAL 114.2850MHZ 18PF SMD |
4,321 | - |
|
Datasheet | CS-023 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 114.285 MHz | ±20ppm | ±20ppm | 18pF | 80 Ohms | 3rd Overtone | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
CS06528-114.285MCRYSTAL 114.2850MHZ 18PF SMD |
19,102 | - |
|
Datasheet | NX3225SA | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 114.285 MHz | ±20ppm | ±20ppm | 18pF | 80 Ohms | 3rd Overtone | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
XL-1C-012.0MCRYSTAL 12.0000MHZ 16PF SMD |
1,113 | - |
|
Datasheet | XL-1C | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 16pF | 60 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.070" (1.77mm) |
|
ABM8X-101-24.000MHZ-TCRYSTAL 24.0000MHZ 10PF SMD |
8,528 | - |
|
Datasheet | ABM8X | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±25ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 125°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
CS-023E-114.285MCRYSTAL 114.2850MHZ 18PF SMD |
713 | - |
|
Datasheet | CS-023E | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 114.285 MHz | ±20ppm | ±20ppm | 18pF | 50 Ohms | 3rd Overtone | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
ECS-10-13-1XHCRYSTAL 1.0000MHZ 13PF TH |
476 | - |
|
Datasheet | HC-49UX(H) | HC-49/U | Bulk | Active | MHz Crystal | 1 MHz | ±100ppm | ±100ppm | 13pF | 3 kOhms | Fundamental | 0°C ~ 60°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.530" (13.46mm) |
|
|
ECS-10-13-1HCRYSTAL 1.0000MHZ 13PF TH |
720 | - |
|
Datasheet | HC-49U(H) | HC-49/U | Bulk | Not For New Designs | MHz Crystal | 1 MHz | ±100ppm | ±100ppm | 13pF | 3 kOhms | Fundamental | 0°C ~ 60°C | - | Through Hole | - | 0.447" L x 0.183" W (11.35mm x 4.65mm) | 0.530" (13.46mm) |
|

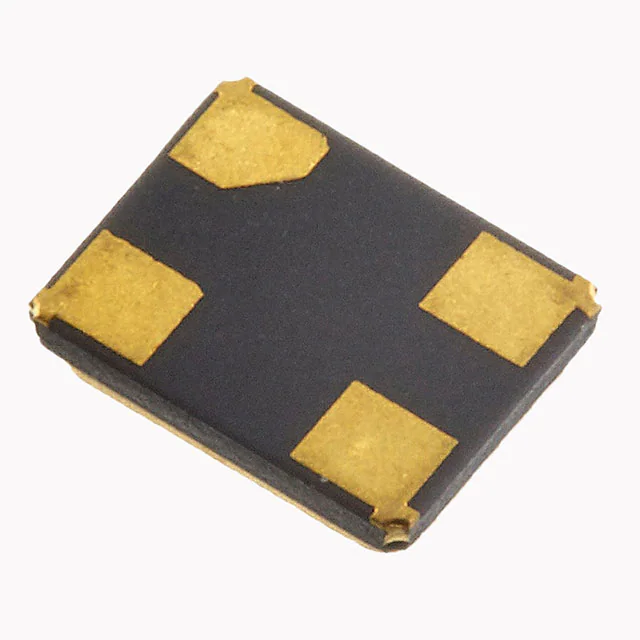

RH100-13.560-10-1020-EXT-TRCRYSTAL 13.5600MHZ 10PF SMD |
13,215 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 13.56 MHz | ±20ppm | ±10ppm | 10pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

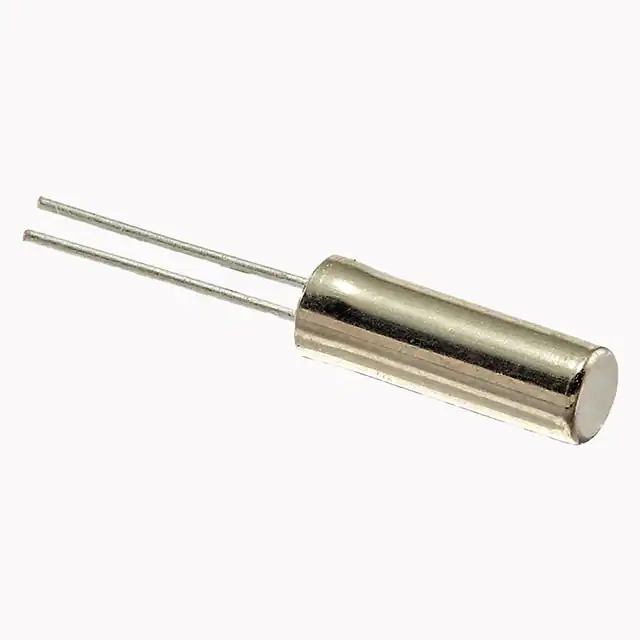

R26-32.768-12.5CRYSTAL 32.7680KHZ 12.5PF TH |
19,094 | - |
|
Datasheet | R26 | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.083" Dia (2.10mm) | 0.244" (6.20mm) |
|
AS-12.000-18-3030-EXT-SMD-TRCRYSTAL 12.0000MHZ 18PF SMD |
3,904 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.157" (4.00mm) |
|

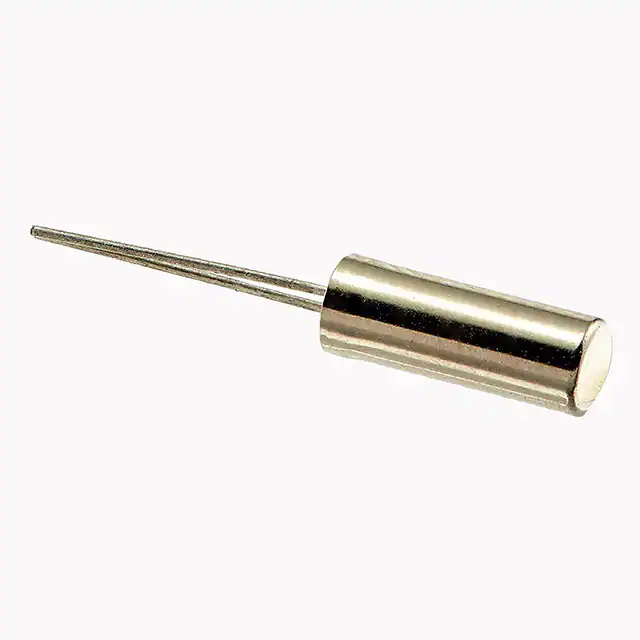

R38-32.768-12.5CRYSTAL 32.7680KHZ 12.5PF TH |
4,089 | - |
|
Datasheet | R38 | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 30 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.126" Dia (3.20mm) | 0.323" (8.20mm) |
|
AS-25.000-18-F-EXTCRYSTAL 25.0000MHZ 18PF TH |
2,888 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 18pF | - | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|

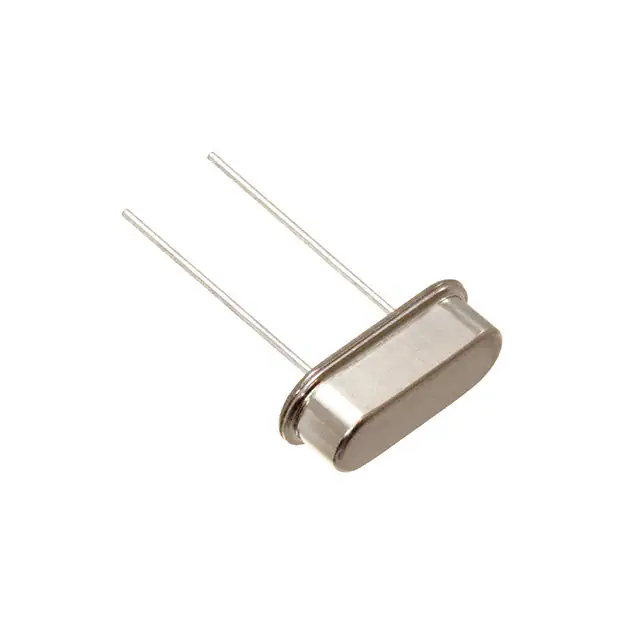

AS-16.000-18CRYSTAL 16.0000MHZ 18PF TH |
2,711 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|

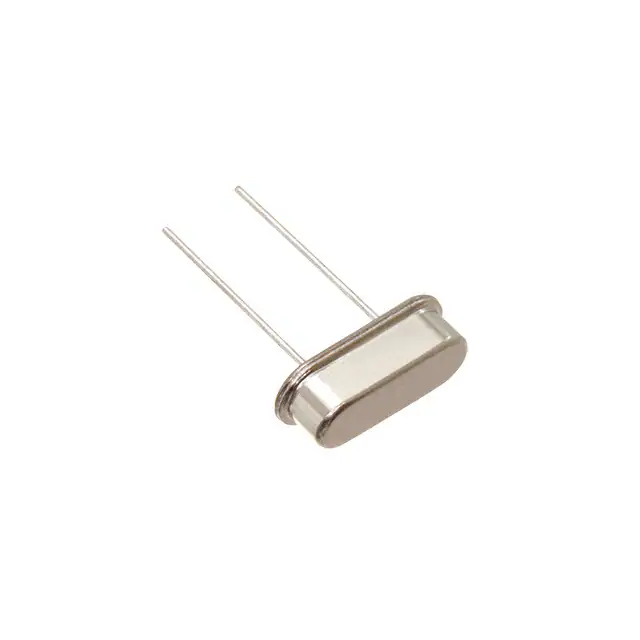

AS-12.000-20CRYSTAL 12.0000MHZ 20PF TH |
2,454 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|

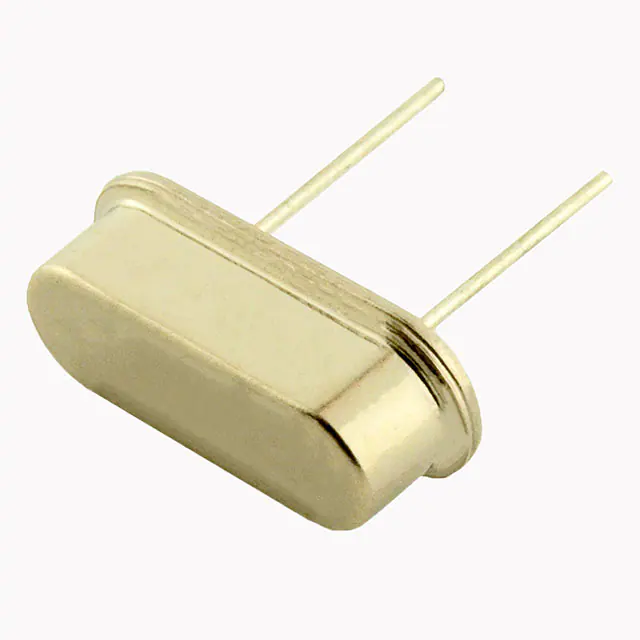

AS-4.000-18CRYSTAL 4.0000MHZ 18PF TH |
6,746 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 130 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|
|
RH100-50.000-12-F-1010-TRCRYSTAL 50.0000MHZ 12PF SMD |
2,699 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 50 MHz | ±10ppm | ±10ppm | 12pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
AS-3.579545-18-SMD-TRCRYSTAL 3.579545MHZ 18PF SMD |
10,284 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 180 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
|
|
AS-16.000-18-SMD-TRCRYSTAL 16.0000MHZ 18PF SMD |
5,785 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 18pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
|
|
AS-3.579545-18CRYSTAL 3.579545MHZ 18PF TH |
5,760 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 180 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|
|
AS-8.000-18-SMD-TRCRYSTAL 8.0000MHZ 18PF SMD |
5,074 | - |
|
Datasheet | AS-SMD | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.472" L x 0.189" W (12.00mm x 4.80mm) | 0.181" (4.60mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
