Crystals
Browse available Crystals part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH100-25.000-18-F-1020-EXT-TRCRYSTAL 25.0MHZ 18PF SMD |
4,323 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±20ppm | ±10ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
ECS-.327-6-13XCRYSTAL 32.7680KHZ 6PF TH |
23,490 | - |
|
Datasheet | ECS-2X6X | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 35 kOhms | Fundamental | -10°C ~ 60°C | - | Through Hole | - | 0.083" Dia x 0.244" L (2.10mm x 6.20mm) | 0.244" (6.20mm) |
|
|
RH100-16.000-8-2020-TRCRYSTAL 16.0MHZ 8PF SMD |
10,174 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±20ppm | ±20ppm | 8pF | 70 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-12.000-18-2020-EXT-TRCRYSTAL 12.0MHZ 18PF SMD |
8,385 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±20ppm | ±20ppm | 18pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-25.000-16-F-2020-EXT-TRCRYSTAL 25.0000MHZ 16PF SMD |
6,409 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 16pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-24.000-12-1010-EXT-TRCRYSTAL 24.0MHZ 12PF SMD |
5,946 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|

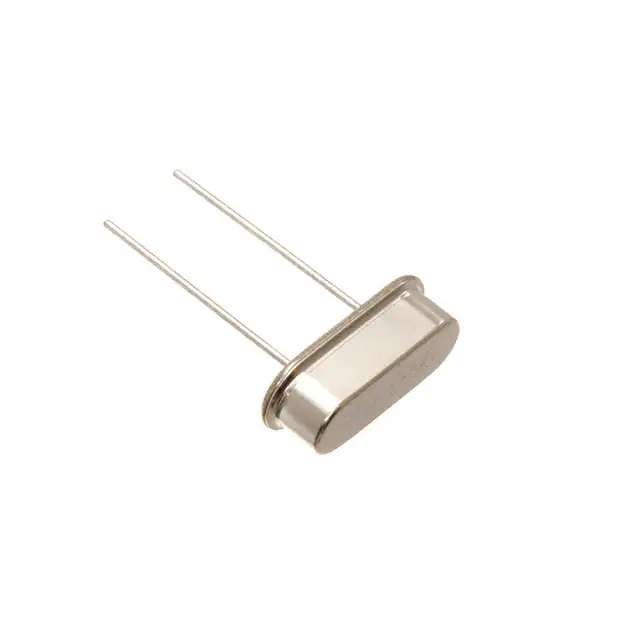

AS-20.000-20CRYSTAL 20.0000MHZ 20PF TH |
4,419 | - |
|
Datasheet | AS | HC-49/US | Bulk | Active | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.447" L x 0.197" W (11.35mm x 5.00mm) | 0.138" (3.50mm) |
|
ATS073-ECRYSTAL 7.3728MHZ 20PF TH |
33,889 | - |
|
Datasheet | ATS | HC-49/US | Bulk | Active | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.427" L x 0.177" W (10.85mm x 4.50mm) | 0.145" (3.68mm) |
|
|
RH100-12.000-12-1010-EXT-TRCRYSTAL 12.0000MHZ 12PF SMD |
8,989 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±10ppm | ±10ppm | 12pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-24.000-12-3030-EXT-TRCRYSTAL 24.0000MHZ 12PF SMD |
8,231 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-16.000-12-1010-EXT-TRCRYSTAL 16.0000MHZ 12PF SMD |
6,933 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±10ppm | ±10ppm | 12pF | 70 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-16.000-18-2030-EXT-TRCRYSTAL 16.0000MHZ 18PF SMD |
6,005 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 16 MHz | ±30ppm | ±20ppm | 18pF | 70 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
J49SMH-F-G-G-K-8M0CRYSTAL 8.0000MHZ 18PF SMD |
4,880 | - |
|
Datasheet | J49SMH | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.461" L x 0.189" W (11.70mm x 4.80mm) | 0.157" (4.00mm) |
|
|
ATS080B-ECRYSTAL 8.0000MHZ 18PF TH |
3,823 | - |
|
Datasheet | ATS | HC-49/US | Bulk | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Through Hole | - | 0.427" L x 0.177" W (10.85mm x 4.50mm) | 0.145" (3.68mm) |
|
|
RH100-25.000-18-F-2030-EXT-TRCRYSTAL 25.0000MHZ 18PF SMD |
3,550 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±30ppm | ±20ppm | 18pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-40.000-9-F-1010-EXT-TRCRYSTAL 40.0000MHZ 9PF SMD |
3,167 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 9pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-25.000-10-F-1010-EXT-TRCRYSTAL 25.0000MHZ 10PF SMD |
2,909 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-40.000-12-F-1010-TRCRYSTAL 40.0000MHZ 12PF SMD |
2,458 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 12pF | 50 Ohms | Fundamental | -20°C ~ 70°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-12.000-18-2030-EXT-TRCRYSTAL 12.0000MHZ 18PF SMD |
2,318 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 12 MHz | ±30ppm | ±20ppm | 18pF | 100 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
|
|
RH100-40.000-6-F-1010-EXT-TRCRYSTAL 40.0000MHZ 6PF SMD |
1,669 | - |
|
Datasheet | RH100 | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 40 MHz | ±10ppm | ±10ppm | 6pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
Crystals FAQ
Common questions about selecting, comparing and sourcing Crystals components through Winsun (HK) Electronics.
What should I check when selecting Crystals components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Crystals part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Crystals parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Crystals components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
