Current Sense Transformers

Browse available Current Sense Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Frequency Range	Type	Current Rating (Amps)	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
53100C CURR SENSE XFMR 1:100 10A SMD Murata Power Solutions Inc.	5,356	1+：$1.53000 10+：$1.38500 25+：$1.33080 50+：$1.29080 100+：$1.25170 250+：$1.20164 500+：$1.16482	RFQ	Datasheet	5300	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	2 mH	-	1:100	-	7mOhm Primary, 5.6Ohm Secondary	-	Surface Mount	0.283" L x 0.327" W (7.20mm x 8.30mm)	0.213" (5.40mm)	Gull Wing
B82801B0925A200 CURR SENSE XFMR 1:200 20A SMD TDK	0	1+：$2.56000 10+：$2.31800 25+：$2.22600 50+：$2.15860 100+：$2.09270 250+：$2.00808	RFQ	Datasheet	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	8 mH	100VµS	1:200	-	0.6mOhm Primary, 33.24Ohm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing
PA1005.100NLT CURR SENSE XFMR 1:100 20A SMD Pulse Electronics	536	1+：$3.06000 10+：$2.76900 25+：$2.65960 50+：$2.57860 100+：$2.49960 250+：$2.39832	RFQ	Datasheet	PA1005.XXXNL	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
B82801B0205A100 CURR SENSE XFMR 1:100 SMD TDK	5,009	1+：$2.13000 10+：$1.93000 25+：$1.85360 50+：$1.79740 100+：$1.74270 250+：$1.67252	RFQ	Datasheet	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	0.8mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing
ACST-261-1 CURRENT SENSE TRANSFORMER Zettler Magnetics	8,830	1+：$2.46000 10+：$2.22600 48+：$2.07708 96+：$2.01365 144+：$1.97729 288+：$1.91646 528+：$1.86451 1008+：$1.81039 5040+：$1.68146	RFQ	Datasheet	ACST-200	Tray	Active	50Hz ~ 200Hz	Invasive	30 A	2.4 H	-	1:1000	1000:1	0.6mOhm	-	Through Hole	0.807" L x 0.690" W (20.50mm x 17.53mm)	0.650" (16.51mm)	PC Pin
ASM-010 CURR SENSE XFMR 10A T/H Talema Group LLC	7,770	1+：$5.01000 10+：$4.52600 25+：$4.34440 50+：$4.21100 100+：$4.08100 250+：$3.91436 500+：$3.79212 1000+：$3.67318	RFQ	Datasheet	ASM	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
P8205NLT CURR SENSE XFMR 1:50 SMD Pulse Electronics	1,506	1+：$3.68000 10+：$3.32800 25+：$3.19520 50+：$3.09760 100+：$3.00230 250+：$2.88004	RFQ	Datasheet	P820X	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	500 µH	-	1:50	-	6mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
CSE187L CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	3,558	1+：$3.10000 15+：$2.75200 30+：$2.66833 60+：$2.58717 105+：$2.52286 255+：$2.42376 510+：$2.34859	RFQ	Datasheet	CSE	Bulk	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.860" L x 0.720" W (21.84mm x 18.29mm)	0.710" (18.03mm)	PC Pin
B82801C0565A100 CURR SENSE XFMR 1:100 SMD TDK	0	1+：$3.26000 10+：$2.94800 25+：$2.83040 50+：$2.74400 100+：$2.65980	RFQ	Datasheet	B82801C	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	5.6 mH	-	1:100	-	0.28mOhm Primary, 1Ohm Secondary	-	Surface Mount	0.560" L x 0.530" W (14.22mm x 13.46mm)	0.394" (10.00mm)	Gull Wing
PE-51688NL CURR SENSE XFMR 20A T/H Pulse Electronics	1,072	1+：$5.03000 10+：$4.54500 25+：$4.36200 60+：$4.19317 120+：$4.06317 300+：$3.89670 540+：$3.79296 1020+：$3.68343	RFQ	Datasheet	THT	Tray	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.670" L x 0.390" W (17.01mm x 9.90mm)	0.800" (20.32mm)	PC Pin
PE-68280NLT CURR SENSE XFMR 1:1:100 SMD Pulse Electronics	99	1+：$4.86000 10+：$4.39400 25+：$4.21800 50+：$4.08820 100+：$3.96180	RFQ	Datasheet	PE-68XXXNL	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	14.8 mH	-	1:1:100	-	1.15mOhm Primary, 930mOhm Secondary	-	Surface Mount	0.495" L x 0.490" W (12.57mm x 12.45mm)	0.280" (7.11mm)	-
AS-100 CURR SENSE XFMR 1:50 T/H Amgis, LLC	875	1+：$3.75000 10+：$3.39300 25+：$3.25760 50+：$3.15800 100+：$3.06080 250+：$2.93616 500+：$2.84470 1000+：$2.75571	RFQ	Datasheet	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	6 mH	175VµS	1:50	-	600mOhm Max	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin

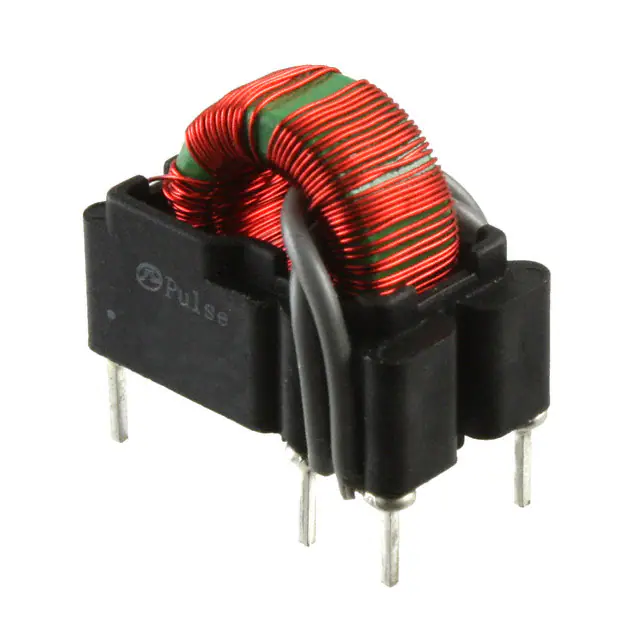

P0582NL CURR SENSE XFMR 100:1:1 35A T/H Pulse Electronics	825	-	RFQ	Datasheet	THT	Tray	Active	50kHz ~ 500kHz	Invasive	35 A	19 mH	-	100:1:1	-	1.4Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810" L x 0.580" W (20.57mm x 14.73mm)	0.750" (19.05mm)	PC Pin
AX-0500 CURR SENSE XFMR 5A T/H Talema Group LLC	1,450	1+：$6.09000 10+：$5.50000 25+：$5.27880 50+：$5.11600 100+：$4.95760 250+：$4.75448 500+：$4.60558 1000+：$4.46073	RFQ	Datasheet	AX	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	500:1	-	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
CSE187L-P CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	2,561	1+：$4.73000 10+：$4.27900 25+：$4.10720 50+：$3.98100 100+：$3.85810 250+：$3.70048 500+：$3.58490 1000+：$3.47244	RFQ	Datasheet	CSE	Bulk	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.875" L x 0.875" W (22.23mm x 22.23mm)	0.720" (18.29mm)	PC Pin
AC1020 CURR SENSE XFMR 20A T/H Talema Group LLC	16,456	1+：$6.40000 10+：$5.77800 25+：$5.54520 50+：$5.37420 100+：$5.20760 250+：$4.99404 500+：$4.83750 1000+：$4.68526	RFQ	Datasheet	AC	Box	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
T60404E4626X502 CURR SENSE XFMR 1:2500 100A TH VACUUMSCHMELZE	1,170	1+：$5.49000 10+：$4.90100 30+：$4.64100 60+：$4.48367 120+：$4.33117 270+：$4.15893 510+：$4.02849 1020+：$3.89077	RFQ	Datasheet	-	Box	Active	50Hz	Non-Invasive (Solid Core)	100 A	102 H	-	1:2500	2500:1	41.7Ohm	-	Through Hole	1.339" L x 0.551" W (34.00mm x 14.00mm)	1.339" (34.00mm)	PC Pin
AC1015 CURR SENSE XFMR 15A T/H Talema Group LLC	6,816	1+：$6.40000 10+：$5.77800 25+：$5.54520 50+：$5.37420 100+：$5.20760 250+：$4.99404 500+：$4.83750 1000+：$4.68526	RFQ	Datasheet	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
AC1005 CURR SENSE XFMR 5A T/H Talema Group LLC	9,674	1+：$6.40000 10+：$5.77800 25+：$5.54520 50+：$5.37420 100+：$5.20760 250+：$4.99404 500+：$4.83750 1000+：$4.68526	RFQ	Datasheet	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
CT-1005 CURR SENSE XFMR 5A T/H Amgis, LLC	3,985	-	RFQ	Datasheet	CT	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin

WINSUN SOURCING SUPPORT

Need Current Sense Transformers Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Current Sense Transformers FAQ

Common questions about selecting, comparing and sourcing Current Sense Transformers components through Winsun (HK) Electronics.

What should I check when selecting Current Sense Transformers components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Current Sense Transformers part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Current Sense Transformers parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Current Sense Transformers components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
