Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

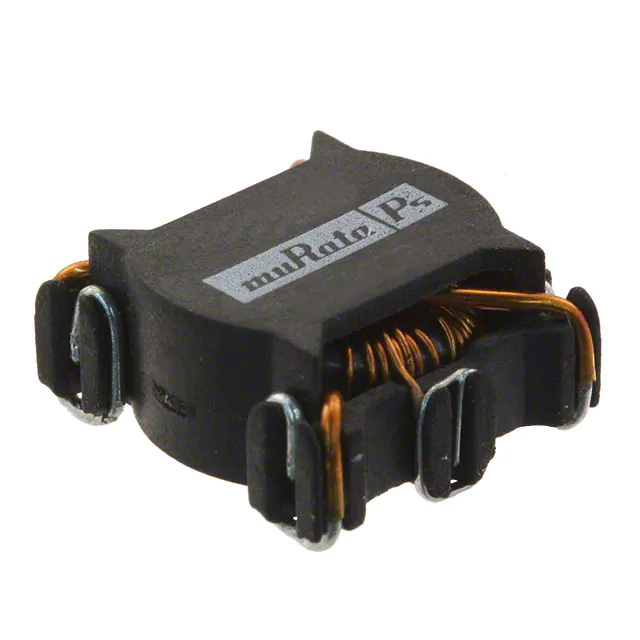

55050C-RCURR SENSE XFMR 1:1:50 15A SMD |
3,143 | - |
|
Datasheet | 5500 | Tape & Reel (TR) | Obsolete | 50kHz ~ 500kHz | Invasive | 15 A | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.280" (7.10mm) | - |
|
55100C-RCURR SENSE XFMR 1:1:100 15A SMD |
3,293 | - |
|
Datasheet | 5500 | Tape & Reel (TR) | Obsolete | 50kHz ~ 500kHz | Invasive | 15 A | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.575" L x 0.496" W (14.60mm x 12.60mm) | 0.280" (7.10mm) | - |
|
55050CCURR SENSE XFMR 1:1:50 15A SMD |
4,557 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 2.3mOhm Primary, 350mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
|
55100CCURR SENSE XFMR 1:1:100 15A SMD |
1,660 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 2.3mOhm Primary, 850mOhm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
55200CCURR SENSE XFMR 1:1:200 15A SMD |
1,628 | - |
|
Datasheet | 5500 | Tube | Obsolete | 50kHz ~ 500kHz | Invasive | - | 60 mH | - | 1:1:200 | - | 2.3mOhm Primary, 3.6Ohm Secondary | - | Surface Mount | 0.496" L x 0.575" W (12.60mm x 14.60mm) | 0.280" (7.10mm) | - |
|
7020-01036-0CURR SENSE XFMR 5A IN-LINE |
2,163 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01038-0CURR SENSE XFMR 5A IN-LINE |
4,932 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01040-0CURR SENSE XFMR 5A IN-LINE |
1,171 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
39-3681409CURR SENSE XFMR IN-LINE |
2,059 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.560" Dia (39.60mm) | 1.098" (27.90mm) | Wire Leads |
|
7020-01037-0CURR SENSE XFMR 5A IN-LINE |
4,076 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 75:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
