Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

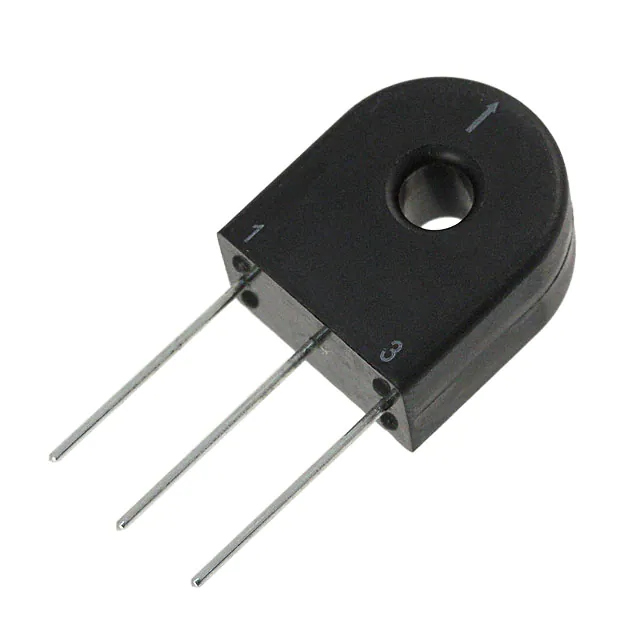

PE-51718NLCURR SENSE XFMR 20A T/H |
109 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PA3202NLCURR XFMR ROGOWSKI 200A CHAS |
755 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.75 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.669" L x 1.587" W (42.40mm x 40.30mm) | 0.580" (14.73mm) | Wire Leads |
|
P0581NLCURR SENSE XFMR 200:1:1 34A T/H |
112 | - |
|
Datasheet | THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 34 A | 76 mH | - | 200:1:1 | - | 2.8Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|

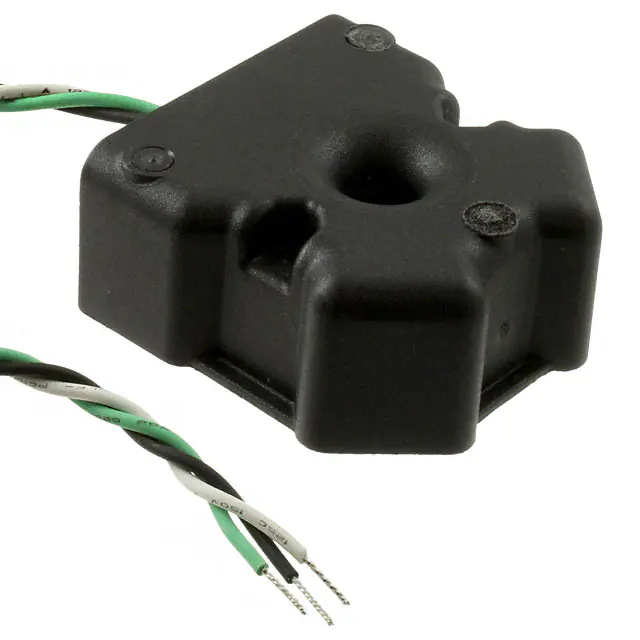

PA3208NLCURR XFMR ROGOWSKI 100A CHAS |
543 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.205" L x 1.189" W (30.60mm x 30.20mm) | 0.580" (14.73mm) | Wire Leads |
|
PAS6322.150NLTCURR SENSE XFMR 1:150 50A SMD |
261 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 10 mH | - | 1:150 | - | 0.5mOhm Primary, 6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.472" (12.00mm) | Gull Wing |
|
|
PAS6322.100NLTCURR SENSE XFMR 1:100 50A SMD |
516 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 0.5mOhm Primary, 2.6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.050NLTCURR SENSE XFMR 1:50 50A SMD |
194 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 1.1 mH | - | 1:50 | - | 0.5mOhm Primary, 600mOhm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.200NLTCURR SENSE XFMR 1:20 50A SMD |
872 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 0.5mOhm Primary, 12Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|

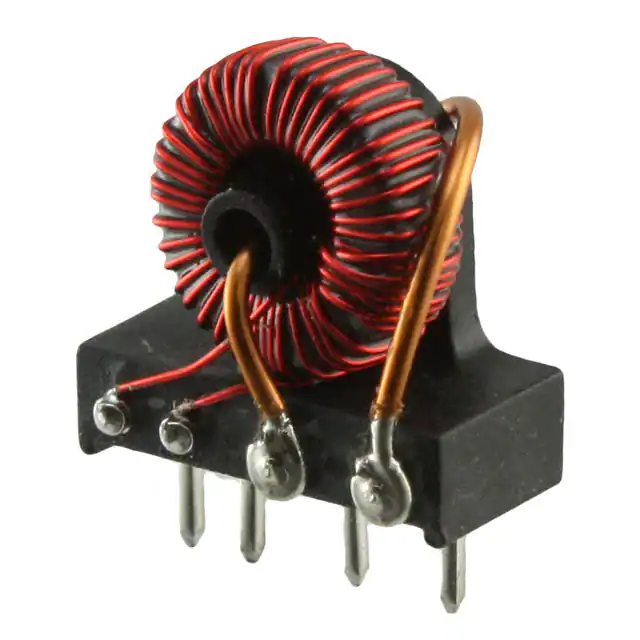

PE-64978NLCURR SENSE XFMR 20A T/H |
148 | - |
|
Datasheet | THT | Tube | Active | 200kHz ~ 500kHz | Invasive | 20 A | 4 mH | - | - | 50:1 | 6mOhm Primary, 240mOhm Secondary | - | Through Hole | 0.550" L x 0.380" W (13.97mm x 9.65mm) | 0.580" (14.73mm) | PC Pin |
|
PA0368.050NLCURR SENSE XFMR 1:50 4A SMD |
314 | - |
|
Datasheet | - | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 1.7 mH | - | 1:50 | - | 4mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
