Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

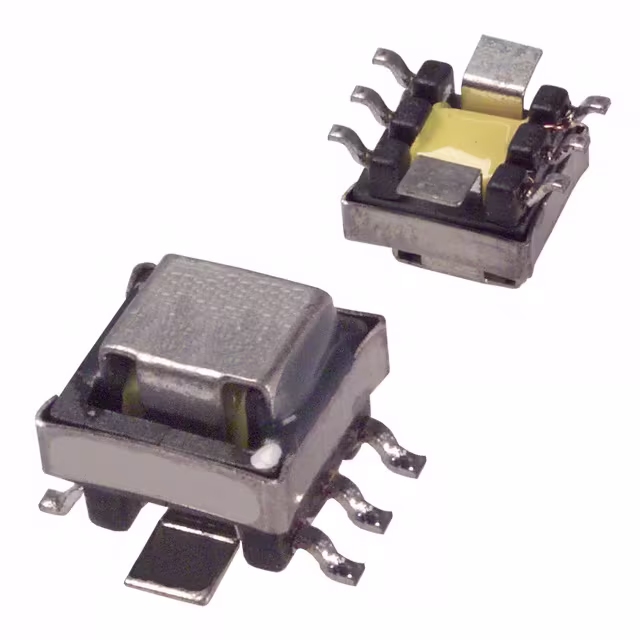

TCS-01CURR SENSE XFMR 1:20 SMD |
2,508 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 80 µH | - | 1:20 | - | 6mOhm Primary, 550mOhm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-02CURR SENSE XFMR 1:30 SMD |
4,910 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 180 µH | - | 1:30 | - | 6mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-03CURR SENSE XFMR 1:40 SMD |
4,025 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 320 µH | - | 1:40 | - | 6mOhm Primary, 1.14Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-05CURR SENSE XFMR 1:60 SMD |
4,397 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 720 µH | - | 1:60 | - | 6mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-07CURR SENSE XFMR 1:100 SMD |
4,908 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.9Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
|
|
TCS-08CURR SENSE XFMR 1:125 SMD |
2,352 | - |
|
Datasheet | TCS | Tape & Reel (TR) | Obsolete | 250kHz Min | Invasive | - | 3 mH | - | 1:125 | - | 6mOhm Primary, 7.7Ohm Secondary | - | Surface Mount | 0.276" L x 0.331" W (7.00mm x 8.40mm) | 0.205" (5.20mm) | Gull Wing |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
