Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

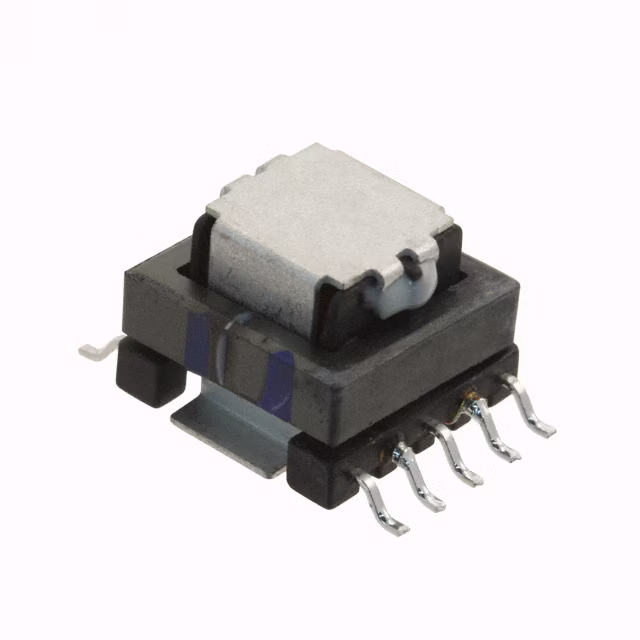

B82801C1265A150CURR SENSE XFMR 1:150 SMD |
119 | - |
|
Datasheet | B82801C | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 12.6 mH | - | 1:150 | - | 0.28mOhm Primary, 2.2Ohm Secondary | - | Surface Mount | 0.560" L x 0.530" W (14.22mm x 13.46mm) | 0.394" (10.00mm) | Gull Wing |
|
B78417A2185A003CURR SENSE XFMR 1:100 SMD |
1,459 | - |
|
Datasheet | B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 7 mH | - | 1:100 | - | 1.9mOhm Primary, 5Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
|
B78417A2287A003CURR SENSE XFMR 1:125 SMD |
2,211 | - |
|
Datasheet | B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 11 mH | - | 1:125 | - | 1.9mOhm Primary, 5.3Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
|
B78417A2285A003CURR SENSE XFMR 1:50 SMD |
1,924 | - |
|
Datasheet | B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 1.7 mH | - | 1:50 | - | 1.9mOhm Primary, 2.1Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
B82801B0184A030CURR SENSE XFMR 1:30 SMD |
700 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 180 µH | - | 1:30 | - | 0.8mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
B82801B0724A060CURR SENSE XFMR 1:60 SMD |
693 | - |
|
Datasheet | B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 720 µH | - | 1:60 | - | 0.8mOhm Primary, 1.98Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
B82801A1185A150CURR SENSE XFMR 1:150 SMD |
287 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 1.84 mH | 43.2VµS | 1:150 | - | 2.5mOhm Primary, 21Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1134A040CURR SENSE XFMR SMD |
593 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 132 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1304A060CURR SENSE XFMR SMD |
533 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 295 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1214A050CURR SENSE XFMR SMD |
486 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 205 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
