RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS20-046-0805SCHOTTKY DIODE,CHIP-PACKAGE, 080 |
8,554 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tray | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | 0805-2 |
|
MSS30-248-B20SCHOTTKY DIODE,BEAMLEAD, B20 |
7,328 | - |
|
Datasheet | - | B20 | Tray | Active | Schottky - 1 Pair Series Connection | 2V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B20 |
|
MMD805-E25DIODE,SRD-CHIP-PACKAGE, E25 |
8,981 | - |
|
Datasheet | MMDx | E25 | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.57pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E25 |
|
MSS20-046-E28SCHOTTKY DIODE,BEAMLEAD, E28-S |
4,921 | - |
|
Datasheet | - | E28 | Bulk | Active | Schottky - Single | 1V | 35 mA | 0.2pF @ 500mV, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E28 |
|
MSS20-046-E25SCHOTTKY DIODE,BEAMLEAD, E25 |
3,662 | - |
|
Datasheet | - | E25 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.18pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | E25 |
|
MGS803GAAS SCHOTTKY CHIP |
9,549 | - |
|
Datasheet | MGS8xx | Die | Tray | Active | Schottky - 1 Pair Series Connection | 5V (Min) | 50 mA | 0.06pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | Chip |
|
MMP7066-11DIE, DIODE, PIN |
2,760 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 500V | 150 mA | 0.1pF @ 100V, 1MHz | 15Ohm @ 1mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MEST2G-080-025PIN, SI BEAM LEAD,CM27 |
7,153 | - |
|
Datasheet | - | CM27 | Tray | Active | PIN - Single | 500V | 200 mA | 0.09pF @ 50V, 1MHz | 970mOhm @ 100mA, 500MHz | 80 W | -40°C ~ 175°C (TJ) | - | - | CM27 |
|
MSS60-841-E45SCHOTTKY DIODE,BEAMLEAD, E45-1 |
9,485 | - |
|
Datasheet | - | E45 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.35pF @ 0V, 1MHz | 23Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|

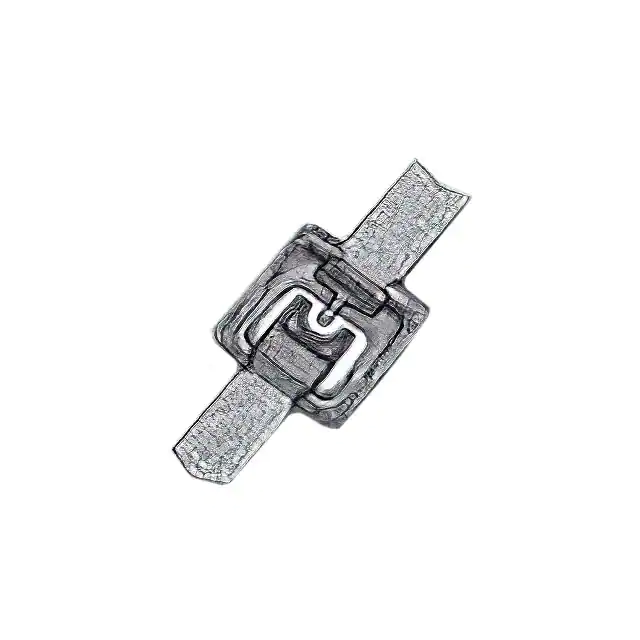

MSS20-140-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
7,966 | - |
|
Datasheet | - | B10D | Tray | Active | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS40-148-B10BSCHOTTKY DIODE,BEAMLEAD, B10B |
9,376 | - |
|
Datasheet | - | B10B | Tray | Active | Schottky - Single | 3V | 50 mA | 0.15pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | B10B |
|
MMD805-C12COM SRD-CHIP, C12 |
4,983 | - |
|
Datasheet | MMDx | Die | Tray | Active | Step Recovery Diode | 60V | 150 mA | 3.5pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | Chip |
|
MSS60-848-H40SCHOTTKY DIODE,BEAMLEAD, H40 |
2,788 | - |
|
Datasheet | - | H40 | Tray | Active | Schottky - 1 Bridge | 6V | 50 mA | 0.51pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | H40 |
|
|
MSS60-448-E45RSCHOTTKY DIODE,BEAMLEAD, E45R-1 |
4,990 | - |
|
Datasheet | - | E45 | Tray | Active | Schottky - 1 Bridge | 3.5V | 50 mA | 0.38pF @ 0V, 1MHz | 13Ohm @ 5mA, 1MHz | 100 mW | -65°C ~ 150°C | - | - | E45 |
|
|
MGS902SCHOTTKY DIODE,GAAS-BEAMLEAD, GB |
6,585 | - |
|
Datasheet | MGS9xx | 2-SMD, Flat Leads | Tray | Active | Schottky - Anti-Parallel | 5V (Min) | 50 mA | 0.1pF @ 0V, 1MHz | 7Ohm @ 5mA, 1MHz | 75 mW | -65°C ~ 150°C | - | - | GB210 |
|
MMDB30-E28XDIODE, BEAMLEAD SRD, E28X |
7,958 | - |
|
Datasheet | MMDx | E28 | Tray | Active | Standard - Single | 14V | 50 mA | 0.33pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | E28 |
|
|
MSS20-141-B10DSCHOTTKY DIODE,BEAMLEAD, B10D |
2,036 | - |
|
Datasheet | - | B10D | Tray | Discontinued at Digi-Key | Schottky - Single | 1V | 35 mA | 0.08pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | B10D |
|
MSS20-055-H27SCHOTTKY DIODE,BEAMLEAD, H27 |
8,305 | - |
|
Datasheet | - | H27 | Tray | Active | Schottky - Single | 1V | 35 mA | 0.32pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H27 |
|
MSS39-152-H20SCHOTTKY DIODE,BEAMLEAD, H20-2 |
9,417 | - |
|
Datasheet | - | H20 | Tray | Active | Schottky - Single | 3.5V | 50 mA | 0.36pF @ 0V, 1MHz | - | 100 mW | -65°C ~ 150°C | - | - | H20 |
|
|
MMP7027-11DIODE,PIN,DIE |
4,172 | - |
|
Datasheet | MMP7027 | Die | Tray | Active | PIN - Single | 100V | - | 0.1pF @ 10V, 1MHz | 700mOhm @ 75mA, 1MHz | - | -55°C ~ 150°C | - | - | Die |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
