RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAP70Q,125RF DIODE PIN 50V 125MW 5TSOP |
16,906 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | PIN - 2 Pair CA + CC | 50V | 100 mA | 0.3pF @ 20V, 1MHz | 1.9Ohm @ 100mA, 100MHz | 125 mW | -65°C ~ 150°C (TJ) | - | - | 5-TSOP |
|
SMP1352-079LFRF DIODE PIN 200V 250MW SC79 |
6,372 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-79 |
|
BAT15099E6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
3,471 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
BAT15099E6433HTMA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
1,240 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - 2 Independent | 4V | 110 mA | 0.35pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMS3924-040LFDIODE SCHOTTKY 70V 75MW SOD882 |
8,158 | - |
|
Datasheet | - | SOD-882 | Tape & Reel (TR) | Active | Schottky - Single | 70V | 50 mA | - | - | 75 mW | 150°C (TJ) | - | - | SOD-882 |
|
SMP1320-075LFRF DIODE PIN 50V 250MW SC70-3 |
3,006 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 50V | - | 0.3pF @ 30V, 1MHz | 900mOhm @ 10mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-70-3 |
|
|
BAT15099RE6327HTSA1DIODE SCHOTTKY 4V 100MW SOT143-4 |
2,474 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Schottky - Cross Over | 4V | 110 mA | 0.5pF @ 0V, 1MHz | - | 100 mW | 150°C (TJ) | - | - | PG-SOT-143-3D |
|
SMP1302-003LFRF DIODE PIN 200V 250MW SOT23 |
40,280 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PIN - 1 Pair Common Anode | 200V | - | 0.3pF @ 30V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SOT-23-3 |
|
CLA4604-000DIODE LIMITER SILICON 30-60V |
7,700 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 60V | 200 mA | - | 2.5Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|

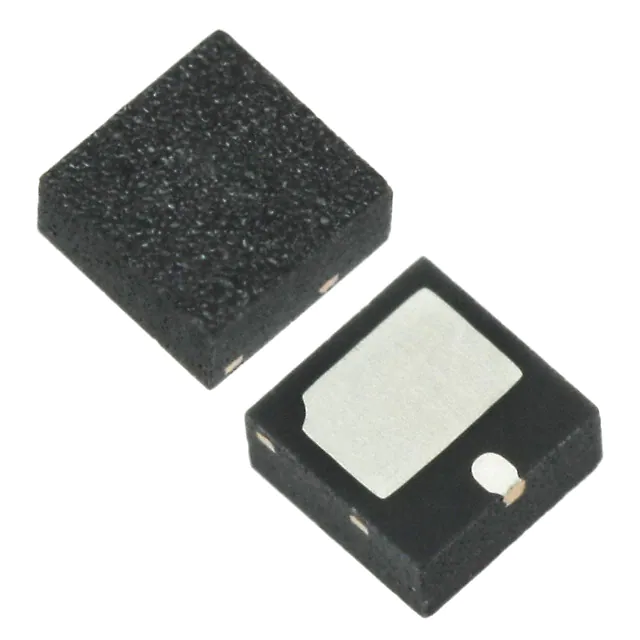

SMP1325-087LFRF DIODE PIN 2W 2QFN |
8,895 | - |
|
Datasheet | - | 2-VSFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | - | 200 mA | 0.6pF @ 20V, 1MHz | 550mOhm @ 100mA, 100MHz | 2 W | -55°C ~ 175°C (TJ) | - | - | 2-QFN (2x2) |
|
CDC7630-000RF DIODE SCHOTTKY 2V 75MW CHIP |
8,200 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
|
CDF7621-000RF DIODE SCHOTTKY 2V CHIP |
4,700 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | - | - | - | - | - | - | - | Chip |
|

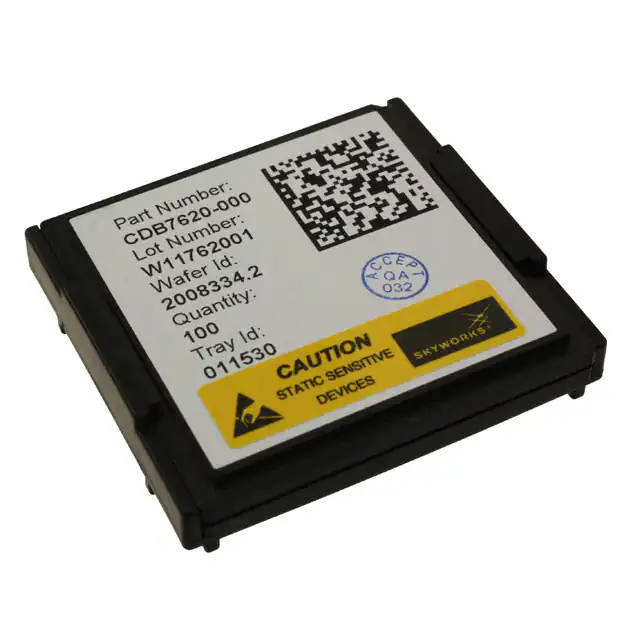

CDB7620-000RF DIODE SCHOTTKY 2V CHIP |
200 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | - | 0.15pF @ 0V, 10MHz | 30Ohm @ 10mA, 10MHz | - | - | - | - | Chip |
|
|
CDC7631-000RF DIODE SCHOTTKY 2V 75MW CHIP |
900 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Single | 2V | 100 mA | - | - | 75 mW | -55°C ~ 150°C (TA) | - | - | Chip |
|
MA4P303-134RF DIODE PIN 200V DIE |
900 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 200V | - | 0.15pF @ 10V, 10MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-007448-1146DTDIODE,PIN,PLASTIC,STR |
2,532 | - |
|
Datasheet | SMPP | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Series Connection | 100V | 150 mA | 0.25pF @ 50V, 1MHz | 2Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-70-3 |
|
|
MA4P404-132RF DIODE PIN 250V DIE |
1,100 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 250V | - | 0.2pF @ 50V, 1MHz | 700mOhm @ 50mA, 500MHz | - | 175°C (TJ) | - | - | Die |
|
MA4E1318RF DIODE SCHOTTKY 7V |
9,100 | - |
|
Datasheet | - | 2-SMD | Bulk | Active | Schottky - Anti-Parallel | 7V | - | 0.06pF @ 0V, 1MHz | - | - | -65°C ~ 125°C (TJ) | - | - | - |
|
MADP-007436-12790TDIODE,PIN,PLASTIC,LEADFREE |
17,321 | - |
|
Datasheet | SMPP | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 75V | 150 mA | 1pF @ 20V, 1MHz | 500mOhm @ 10mA, 100MHz | 200 mW | 175°C (TJ) | - | - | SC-79 |
|

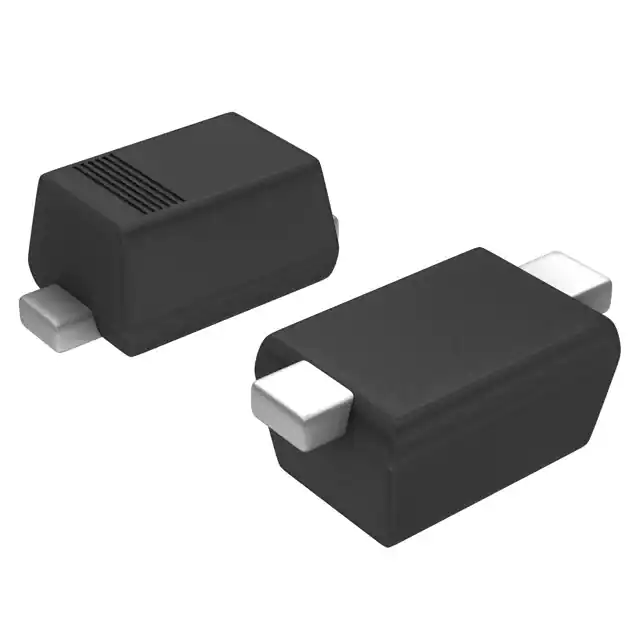

MADP-007455-12790TRF DIODE PIN 100V |
10,826 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 100V | 150 mA | 0.35pF @ 50V, 1MHz | 3Ohm @ 10mA, 100MHz | - | 175°C (TJ) | - | - | SC-79 |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
