RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL4700-206SI LIMITER NON HERMETIC MMSM |
500 | - |
|
Datasheet | - | 0402 (1005 Metric) | Tray | Active | PIN - Single | 25V | - | 0.15pF @ 10V, 1MHz | 2Ohm @ 10mA, 1GHz | 10 W | -55°C ~ 150°C | - | - | 0402 |
|
MA4E1319-1RF DIODE SCHOTTKY 7V DIE |
400 | - |
|
Datasheet | - | Die | Bulk | Active | Schottky - Tee | 7V | - | 0.6pF @ 0V, 1MHz | - | - | -65°C ~ 125°C (TJ) | - | - | Die |
|
MA4P506-131RF DIODE PIN 500V DIE |
900 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 500V | - | 0.7pF @ 100V, 1MHz | 300mOhm @ 100mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-011027-14150TRF DIODE PIN 100V 3.3W 6DFN |
1,362 | - |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 100V | 250 mA | 0.35pF @ 50V, 1MHz | 2.6Ohm @ 10mA, 1GHz | 3.3 W | 175°C (TJ) | - | - | 6-TDFN (1.5x1.2) |
|

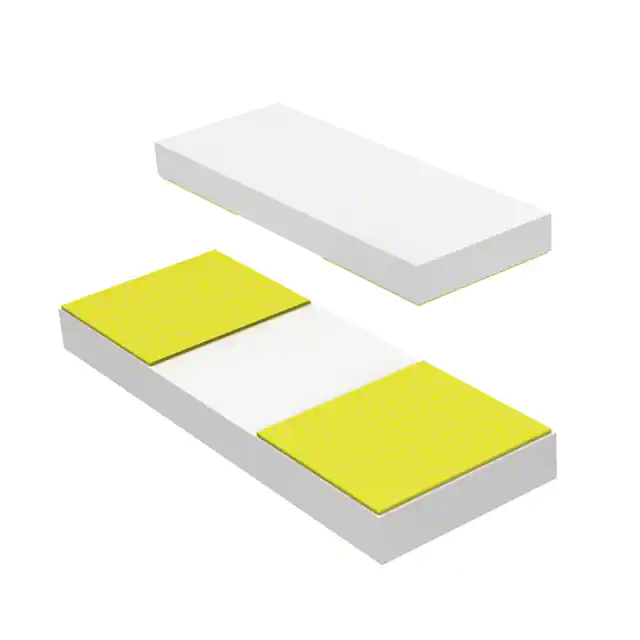

MA4SPS402RF DIODE PIN 100V 2SMD |
4,200 | - |
|
Datasheet | HMIC™ | 2-SMD, No Lead | Tray | Active | PIN - Single | 100V | 250 mA | 0.06pF @ 40V, 1MHz | 5.8Ohm @ 10mA, 1GHz | - | 175°C (TJ) | - | - | 2-SMD |
|
MA4E931Z2-1261ADIODE,SCHOTTKY,ZBD,CHIP |
800 | - |
|
Datasheet | - | Die | Tray | Active | Schottky | 3V | - | - | - | 75 mW | -65°C ~ 150°C | - | - | Chip |
|
|
MA4P504-132RF DIODE PIN 500V DIE |
300 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 500V | - | 0.2pF @ 100V, 1MHz | 600mOhm @ 100mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-010633-13920TDIODE,PIN,1392,CCM218 |
6,084 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 500V | - | 0.4pF @ 50V, 1MHz | 600mOhm @ 100mA, 100MHz | 100 W | 175°C (TJ) | - | - | 0805 |
|
MADP-030015-13140PDIODE,HMIC,PIN SURMOUNT |
4,400 | - |
|
Datasheet | MA4E2502 Surmount™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | PIN - Single | 115V | 500 mA | 0.78pF @ 40V, 1GHz | 380mOhm @ 70mA, 1GHz | - | 175°C (TJ) | - | - | - |
|
|
MADP-000422-12950PDIODE,PIN,SURMOUNT,POCKETTAPE |
18,462 | - |
|
Datasheet | MADP000422 Surmount™ | Die | Tape & Reel (TR) | Active | PIN - Single | 200V | 250 mA | 0.5pF @ 0V, 1MHz | 3.1Ohm @ 10mA, 1GHz | 1.8 W | 175°C (TJ) | - | - | Die |
|
|
MA4P604-131RF DIODE PIN 1000V DIE |
200 | - |
|
Datasheet | - | Die | Bulk | Active | PIN - Single | 1000V | - | 0.3pF @ 100V, 1MHz | 1Ohm @ 100mA, 100MHz | - | 175°C (TJ) | - | - | Die |
|
MADP-000235-10720TRF DIODE PIN 35V 7.5W |
5,976 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 35V | 1.5 A | 1.2pF @ 10V, 1MHz | 500mOhm @ 10mA, 100MHz | 7.5 W | -55°C ~ 150°C (TA) | - | - | - |
|
|
MADP-000488-13740WDIODE,PIN,CHIP |
500 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 900V | - | 0.19pF @ 50V, 1MHz | 1.6Ohm @ 50mA, 100MHz | 15 W | 175°C (TJ) | - | - | Die |
|
MA4E2039DIODE,SCHOTTKY,BEAM_LEAD,GAAS,OD |
200 | - |
|
Datasheet | - | 2-SMD, Flat Leads | Tray | Active | Schottky - Single | - | - | 0.06pF @ 0V, 1MHz | 7Ohm @ 10mA, 1MHz | - | -65°C ~ 125°C | - | - | - |
|
MPS2R10-606SI PIN NON HERMETIC MMSM |
104 | - |
|
Datasheet | - | - | Bulk | Active | PIN - 1 Pair Common Anode | 150V | 200 mA | - | - | - | -65°C ~ 125°C | - | - | - |
|
|
MA4E2037DIODE,SCHOTTKY,BEAM_LEAD,GAAS,OD |
1,600 | - |
|
Datasheet | - | 2-SMD, Flat Leads | Tray | Active | Schottky - Single | 7V | - | 0.06pF @ 0V, 1MHz | 7Ohm @ 10mA, 1MHz | - | -65°C ~ 125°C | - | - | - |
|
MEST2G-010-20COM PIN RF, SWITCH 2012 |
515 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | PIN - Single | 100V | 100 mA | 0.04pF @ 10V, 1MHz | 2Ohm @ 100mA, 1MHz | 10 W | 175°C (TJ) | - | - | 2012 |
|
MA4PH237-1079TRF DIODE PIN 200V 2W |
1,014 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 1.5pF @ 10V, 1MHz | 600mOhm @ 50mA, 100MHz | 2 W | -65°C ~ 175°C (TJ) | - | - | - |
|
MA4P7104B-401TDIODE,PIN,CERAMIC,AXIAL,HI-PAX |
1,161 | - |
|
Datasheet | MA4P | Axial | Tape & Reel (TR) | Active | PIN - Single | 400V | - | 1pF @ 100V, 1MHz | 750mOhm @ 50mA, 100MHz | 6 W | -55°C ~ 175°C (TJ) | - | - | Axial |
|
MA4P7441F-1091TRF DIODE PIN 100V 30W |
1,255 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | 500 mA | 2.2pF @ 100V, 100MHz | 500mOhm @ 100mA, 100MHz | 30 W | 175°C (TJ) | - | - | - |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
