RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA4PH235-1072TRF DIODE PIN 35V 1W |
1,108 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 35V | - | 1.2pF @ 10V, 1MHz | 500mOhm @ 10mA, 100MHz | 1 W | -65°C ~ 175°C (TJ) | - | - | - |
|
|
MA4P7461F-1072TRF DIODE PIN 100V 8W |
2,497 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | 250 mA | 1pF @ 100V, 100MHz | 500mOhm @ 100mA, 100MHz | 8 W | 175°C (TJ) | - | - | - |
|
MMP4405-GM2SI PIN NON HERMETIC PLASTIC SMT |
114 | - |
|
Datasheet | MMP4400 | 0805 (2012 Metric) | Bulk | Active | PIN - Single | 1000V | - | 0.6pF @ 50V, 1MHz | 750mOhm @ 100mA, 100MHz | 8 W | -55°C ~ 150°C | - | - | 0805 |
|
MADP-000502-12700PDIODE,PIN,SURMOUNT |
1,480 | - |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | PIN - Single | 275V | 600 mA | 0.09pF @ 40V, 1GHz | 2.2Ohm @ 100mA, 100MHz | 3 W | 175°C (TJ) | - | - | - |
|
MPL4702-406SI LIMITER NON HERMETIC MMSM |
500 | - |
|
Datasheet | - | 0402 (1005 Metric) | Bulk | Active | PIN - Single | 50V | - | 3pF @ 10V, 1MHz | 2Ohm @ 10mA, 1GHz | 10 W | -55°C ~ 150°C | - | - | 0402 |
|

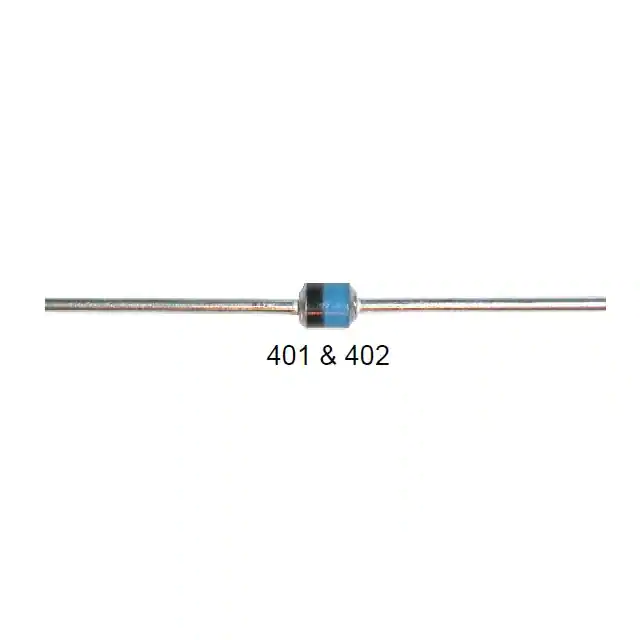

MA4P7102B-401TDIODE,PIN,CERAMIC,AXIAL,HI-PAX |
303 | - |
|
Datasheet | MA4P | Axial | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 1pF @ 100V, 1MHz | 500mOhm @ 100mA, 100MHz | 6 W | -55°C ~ 175°C (TJ) | - | - | Axial |
|
MA4P1450-1091TRF DIODE PIN 100V 10W |
733 | - |
|
Datasheet | - | 2-SMD | Tape & Reel (TR) | Active | PIN - Single | 100V | - | 2.5pF @ 50V, 1MHz | 750mOhm @ 50mA, 100MHz | 10 W | -55°C ~ 175°C (TJ) | - | - | - |
|
MADP-011104-TR0500RF DIODE PIN 800V 12PQFN |
317 | - |
|
Datasheet | - | 12-TFQFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 800V | 250 mA | 0.45pF @ 40V, 15MHz | 2.2Ohm @ 10mA, 3GHz | - | 175°C (TJ) | - | - | 12-PQFN (3x3) |
|
MA4L011-1056DIODE,PIN,BONDED,STRIPLINE,SI |
224 | - |
|
Datasheet | MA4L | 2-SMD, No Lead | Tray | Active | PIN - Single | 35V | 100 mA | 0.18pF @ 10V, 1MHz | 2.1Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | ODS-1056 |
|
|
MA4L021-1056DIODE,PIN,BONDED,STRIPLINE,SI |
11,950 | - |
|
Datasheet | MA4L | 2-SMD, No Lead | Tray | Active | PIN - Single | 35V | 100 mA | 0.2pF @ 0V, 1MHz | 2.1Ohm @ 10mA, 500MHz | 3 W | 175°C (TJ) | - | - | ODS-1056 |
|
|
MADL-011088-DIEDIODE |
154 | - |
|
Datasheet | - | Die | Case | Active | PIN - Single | - | - | - | - | - | 150°C (TJ) | - | - | Die |
|
MA4P606-30DIODE,PIN,CERAMIC_PKG,SI |
250 | - |
|
Datasheet | - | Stud | Bag | Active | PIN - Single | 1000V | 10 mA | 0.8pF @ 100V, 1MHz | 700mOhm @ 100mA, 100MHz | 20 W | -65°C ~ 175°C (TA) | - | - | - |
|
|
MA4P505-255DIODE,PIN,CERAMIC_PKG,SI |
216 | - |
|
Datasheet | - | 2-SMD, No Lead | Tray | Active | PIN - Single | 500V | - | 0.65pF @ 100V, 1MHz | 450mOhm @ 100mA, 100MHz | 15 W | -65°C ~ 175°C | - | - | ODS-255 |
|
|
MADL-011074-DIEDIODE |
50 | - |
|
Datasheet | - | Die | Case | Active | PIN - Single | - | - | - | - | - | 150°C (TJ) | - | - | Die |
|
|
MADL-011173-DIEDIODE |
100 | - |
|
Datasheet | - | Die | Case | Active | PIN - Single | - | - | - | - | - | 150°C (TJ) | - | - | Die |
|
MA4P506-258DIODE,PIN,CERAMIC_PKG,SI |
5,090 | - |
|
Datasheet | - | Stud | Tray | Active | PIN - Single | 500V | - | 1pF @ 100V, 1MHz | 300mOhm @ 100mA, 100MHz | 15 W | -65°C ~ 175°C | - | - | - |
|
MA47222RF DIODE PIN 150V MODULE |
103 | - |
|
Datasheet | - | Module | Tray | Active | PIN - Single | 150V | - | 0.09pF @ 10V, 1MHz | - | - | -65°C ~ 150°C (TJ) | - | - | Module |
|
|
BAR64-05W-E3-08RF PIN DIODE 100V DUAL CC SOT323 |
15,000 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Common Cathode | 100V | 100 mA | 0.5pF @ 1V, 1MHz | 1.35Ohm @ 100mA, 100MHz | - | 150°C (TJ) | - | - | SOT-323 |
|
BAP64-05W,115RF DIODE PIN 100V 240MW SOT323 |
2,735 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | PIN - 1 Pair Common Cathode | 100V | 100 mA | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 240 mW | -65°C ~ 150°C (TJ) | - | - | SC-70 |
|
BAP64LX,315RF DIODE PIN 60V 150MW SOD2 |
29,934 | - |
|
Datasheet | - | SOD-882 | Tape & Reel (TR) | Active | PIN - Single | 60V | 100 mA | 0.3pF @ 20V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 150 mW | -65°C ~ 150°C (TJ) | - | - | SOD2 |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
