Electrical, Specialty Fuses
Use the filters and product table below to compare Electrical, Specialty Fuses components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCK-A-9RFUSE CARTRIDGE 200A 2.4KVAC |
7,972 | - |
|
Datasheet | JCK-A | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 200A | 2.4 kVAC | - | - | Motor Protection | Indicating | R | UR | - | 50kA | 3.000" Dia x 10.8000" L (76.20mm x 274.00mm) | - | - |
|

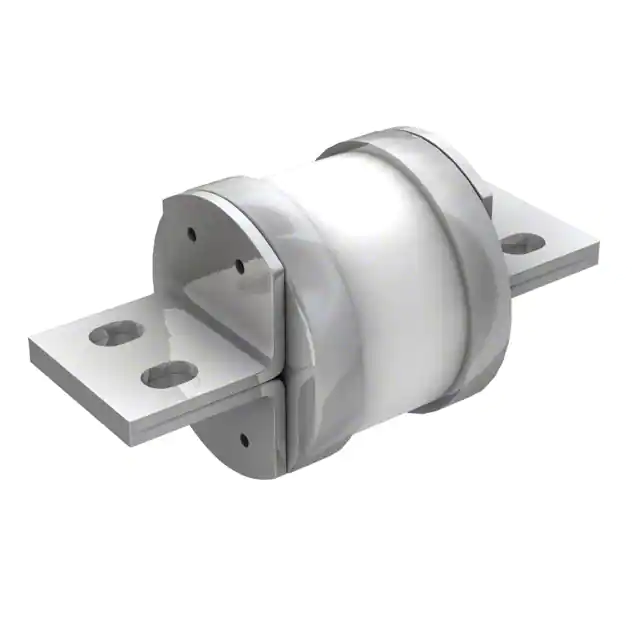

GH1000FUSE CRTRDGE 1KA 550VAC CYLINDR |
8,235 | - |
|
Datasheet | GH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 1kA | 550 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 3.937" Dia x 3.189" L (100.00mm x 81.00mm) | - | - |
|
|
GH1250FUSE CARTRIDGE 1.25KA 550VAC CYL |
7,261 | - |
|
Datasheet | GH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 1.25kA | 550 VAC | - | - | Electrical, Industrial | - | - | - | - | 80kA | 3.937" Dia x 3.189" L (100.00mm x 81.00mm) | - | - |
|
|
JCR-B-6RFUSE CARTRIDGE 170A 7.2KVAC CYL |
9,599 | - |
|
Datasheet | JCR-B | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 170A | 7.2 kVAC | - | - | Motor Protection | Indicating | R | UR | - | 50kA | 17.88" Dia x 19.25" L (454.10mm x 488.90mm) | - | - |
|
|
180D7477FUSE 1800A 1500VDC IEC AR 4BKN/1 |
8,213 | - |
|
Datasheet | - | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 1.8kA | - | 1.5 kVDC | Fast Blow | Electrical, Industrial | Indicating | aR | CE, cURus, UL | - | 100kA | - | - | - |
|
|
JCU-125EFUSE CARTRIDGE 125A 5.5KVAC |
2,270 | - |
|
Datasheet | JCU | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 125A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 63kA | 3.000" Dia x 17.875" L (76.20mm x 454.03mm) | - | - |
|
|
ECL055-125EFUSE CARTRIDGE 125A 5.5KVAC CYL |
8,710 | - |
|
Datasheet | - | Cylindrical, Blade Terminals | Bulk | Active | Bolt Mount | Cartridge | 125A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 63kA | 0.645" L x 0.118" W (16.38mm x 3.00mm) | - | - |
|
|
ECL055-150EFUSE CARTRIDGE 150A 5.5KVAC CYL |
2,739 | - |
|
Datasheet | - | Cylindrical, Blade Terminals | Bulk | Active | Bolt Mount | Cartridge | 150A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 63kA | 0.645" L x 0.118" W (16.38mm x 3.00mm) | - | - |
|
|
ECL055-200EFUSE CARTRIDGE 200A 5.5KVAC CYL |
9,569 | - |
|
Datasheet | - | Cylindrical, Blade Terminals | Bulk | Active | Bolt Mount | Cartridge | 200A | 5.5 kVAC | - | - | Transformer Protection | Indicating | E | - | - | 63kA | 0.645" L x 0.118" W (16.38mm x 3.00mm) | - | - |
|
|
JCN-80EFUSE CARTRIDGE 14.4KVAC |
5,626 | - |
|
Datasheet | JCN | - | Bulk | Active | Requires Holder | Cartridge | - | 14.4 kVAC | - | - | Transformer Protection | - | E | - | - | - | - | - | - |
Electrical, Specialty Fuses FAQ
Common questions about filtering, comparing and sourcing Electrical, Specialty Fuses components.
How can I narrow the Electrical, Specialty Fuses selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Electrical, Specialty Fuses part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
