Electrical, Specialty Fuses
Browse available Electrical, Specialty Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6D70R600V 70A RK1 TD FUSE |
2,383 | - |
|
Datasheet | A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 70A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 1.339" Dia x 7.874" L (34.00mm x 200.00mm) | - | - |
|
40ETFUSE CARTRIDGE 40A 690VAC/500VDC |
4,612 | - |
|
Datasheet | ET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 40A | 690 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.673" Dia x 1.890" L (17.10mm x 48.00mm) | - | - |
|
|
TR175R250V 175A 7 1/8X1 9/10 TD |
4,470 | - |
|
Datasheet | TR-R | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) | - | - |
|
|
A4J100600V 100A CLASS J FUSE |
1,858 | - |
|
Datasheet | A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.142" Dia x 4.606" L (29.00mm x 117.00mm) | - | - |
|
PF-FB2-100FUSE BOLT MNT 800VAC 800VDC 100A |
1,008 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.598" L (24.10mm x 66.00mm) | - | - |
|
|
A50QS350-4FUSE,FAST ACTING,NO BLOWN INDICA |
2,202 | - |
|
Datasheet | A50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 500 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CSA, UR | - | 200kA AC, 87kA DC | 1.500" Dia x 4.331" L (38.10mm x 110.00mm) | - | - |
|
|
TR125RID250V 125A TD RK5 FUSE SMARTSPO |
4,600 | - |
|
Datasheet | TR-R | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CSA, UL | - | 200kA AC, 20kA DC | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) | - | - |
|
|
A30QS100-4SC FUSE 300V 100A QS BLADE |
1,708 | - |
|
Datasheet | A30QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 300 VAC | 300 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 200kA AC, 100kA DC | 1.220" Dia x 3.150" L (31.00mm x 80.00mm) | - | - |
|
|
A2D200R250V 200A RK1 TD FUSE |
3,394 | - |
|
Datasheet | A2D-R | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 250 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) | - | - |
|
|
A50P200-4FUSE,FAST ACTING,NO BLOWN INDICA |
4,402 | - |
|
Datasheet | A50P | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 500 VAC | 450 VDC | Fast Blow | Electrical, Industrial | Indicating | - | UR | - | 100kA AC, 79kA DC | 1.220" Dia x 3.063" L (31.00mm x 92.20mm) | - | - |
|
|
125NHG00B-690FUSE SQUARE 125A 690VAC RECT |
2,171 | - |
|
Datasheet | - | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 125A | 690 VAC | - | - | Electrical, Industrial | Indicating | NH | CE, VDE | - | 120kA | 2.126" L x 1.181" W x 1.969" H (54.00mm x 30.00mm x 50.00mm) | - | - |
|
|
LPJ-30SPIFUSE CARTRIDGE 30A 600VAC/300VDC |
2,376 | - |
|
Datasheet | LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|

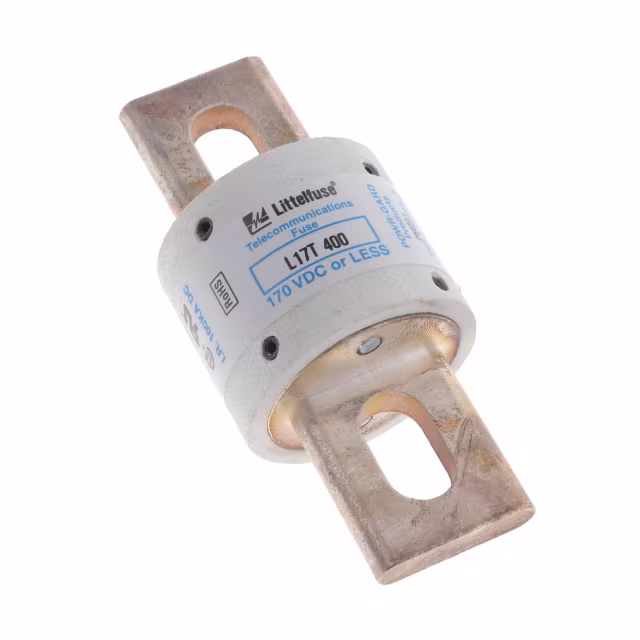

L17T400.VFUSE CRTRDGE 400A 170VDC CYLINDR |
4,024 | - |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
A4J70FUSE,CLASS J,HIGH SPEED,200KA AC |
3,435 | - |
|
Datasheet | A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.142" Dia x 4.606" L (29.00mm x 117.00mm) | - | - |
|
|
TRS175R600V 175A 9 5/8X1 13/16 T |
3,676 | - |
|
Datasheet | TRS-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 175A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CSA, UL | - | 200kA AC, 100kA DC | 1.811" Dia x 9.606" L (46.00mm x 244.00mm) | - | - |
|
|
JKS-15FUSE CERAMIC 15A 600VAC |
1,705 | - |
|
Datasheet | Limitron® JKS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 200kA | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
|
PF-FB2-150FUSE BOLT MNT 800VAC 800VDC 150A |
3,859 | - |
|
Datasheet | POWrFuse™ PF-F | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 800 VAC | 800 VDC | - | Semiconductors | - | aR | cURus | -55°C ~ 125°C | 100kA AC, 50kA DC | 0.949" Dia x 2.598" L (24.10mm x 66.00mm) | - | - |
|
|
A4J90FUSE,CLASS J,HIGH SPEED,200KA AC |
2,968 | - |
|
Datasheet | A4J | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | J | CSA, UL | - | 200kA AC, 100kA DC | 1.142" Dia x 4.606" L (29.00mm x 117.00mm) | - | - |
|
|
A6D100R600V 100A RK1 TD FUSE |
3,539 | - |
|
Datasheet | A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 1.339" Dia x 7.874" L (34.00mm x 200.00mm) | - | - |
|
|
A6D80R600V 80A RK1 TD FUSE |
3,788 | - |
|
Datasheet | A6D-R | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 80A | 600 VAC | 600 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CSA, UL | - | 200kA AC, 100kA DC | 1.339" Dia x 7.874" L (34.00mm x 200.00mm) | - | - |
Electrical, Specialty Fuses FAQ
Common questions about selecting, comparing and sourcing Electrical, Specialty Fuses components through Winsun (HK) Electronics.
What should I check when selecting Electrical, Specialty Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Electrical, Specialty Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Electrical, Specialty Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Electrical, Specialty Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
