CPLDs (Complex Programmable Logic Devices)
Browse available CPLDs (Complex Programmable Logic Devices) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM7256BFI256-7IC CPLD 256MC 7.5NS 256FBGA |
3,661 | - |
|
Datasheet | MAX® 7000B | 256-BGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 164 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 256-FBGA (17x17) |
|

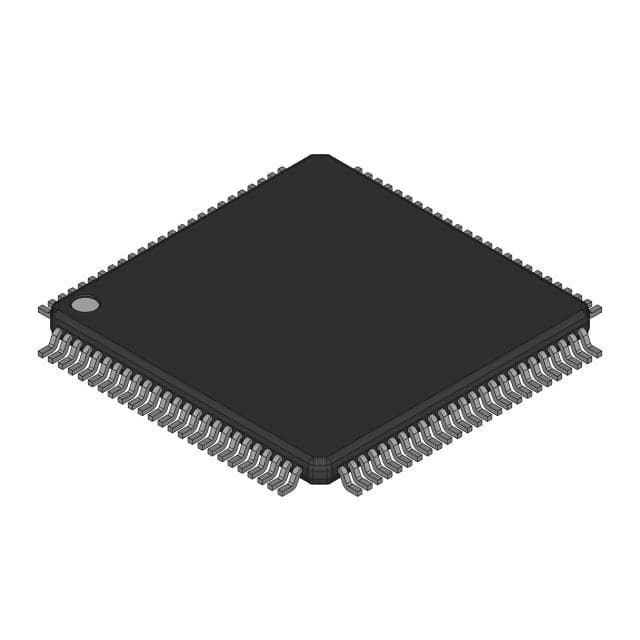

EPM7256BTC100-10IC CPLD 256MC 10NS 100TQFP |
3,994 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC100-10NIC CPLD 256MC 10NS 100TQFP |
3,987 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC100-5IC CPLD 256MC 5NS 100TQFP |
2,951 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-5NIC CPLD 256MC 5NS 100TQFP |
1,798 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-7IC CPLD 256MC 7.5NS 100TQFP |
3,136 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
|
EPM7256BTC100-7NIC CPLD 256MC 7.5NS 100TQFP |
1,286 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|
EPM7256BTC144-10IC CPLD 256MC 10NS 144TQFP |
4,024 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-10NIC CPLD 256MC 10NS 144TQFP |
3,260 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-5IC CPLD 256MC 5NS 144TQFP |
3,229 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-5NIC CPLD 256MC 5NS 144TQFP |
1,364 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-7IC CPLD 256MC 7.5NS 144TQFP |
4,135 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTC144-7NIC CPLD 256MC 7.5NS 144TQFP |
3,584 | - |
|
Datasheet | MAX® 7000B | 144-LQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 120 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 144-TQFP (20x20) |
|
|
EPM7256BTI100-7NIC CPLD 256MC 7.5NS 100TQFP |
4,514 | - |
|
Datasheet | MAX® 7000B | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 84 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
|

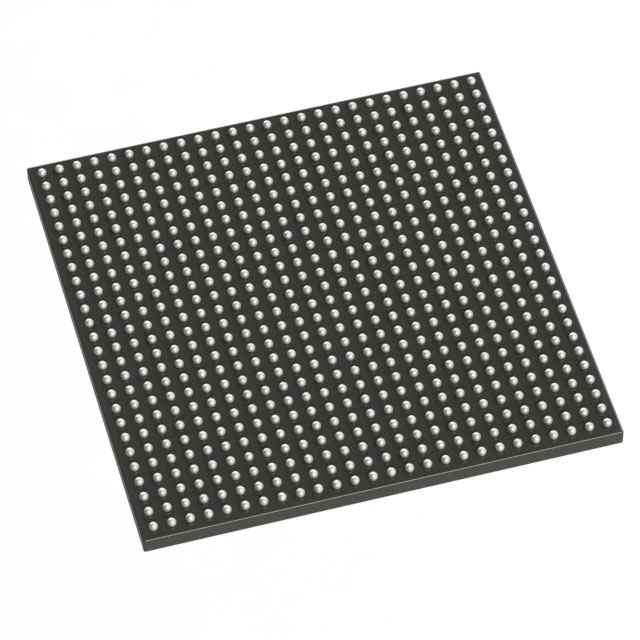

EPM7256BUC169-10IC CPLD 256MC 10NS 169UBGA |
2,819 | - |
|
Datasheet | MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM7256BUC169-10NIC CPLD 256MC 10NS 169UBGA |
3,554 | - |
|
Datasheet | MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 10 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-5IC CPLD 256MC 5NS 169UBGA |
4,315 | - |
|
Datasheet | MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-7IC CPLD 256MC 7.5NS 169UBGA |
1,911 | - |
|
Datasheet | MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
|
EPM7256BUC169-7NIC CPLD 256MC 7.5NS 169UBGA |
3,614 | - |
|
Datasheet | MAX® 7000B | 169-LFBGA | Tray | Obsolete | Not Verified | In System Programmable | 7.5 ns | 2.375V ~ 2.625V | 16 | 256 | 5000 | 141 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 169-UBGA (11x11) |
|
EPM7256EGC192-12IC CPLD 256MC 12NS 192PGA |
3,334 | - |
|
Datasheet | MAX® 7000 | 192-BPGA | Tray | Obsolete | Not Verified | EE PLD | 12 ns | 4.75V ~ 5.25V | 16 | 256 | 5000 | 164 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 192-PGA (44.7x44.7) |
CPLDs (Complex Programmable Logic Devices) FAQ
Common questions about selecting, comparing and sourcing CPLDs (Complex Programmable Logic Devices) components through Winsun (HK) Electronics.
What should I check when selecting CPLDs (Complex Programmable Logic Devices) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific CPLDs (Complex Programmable Logic Devices) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find CPLDs (Complex Programmable Logic Devices) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for CPLDs (Complex Programmable Logic Devices) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
